6-5
FUEL
Fuel system

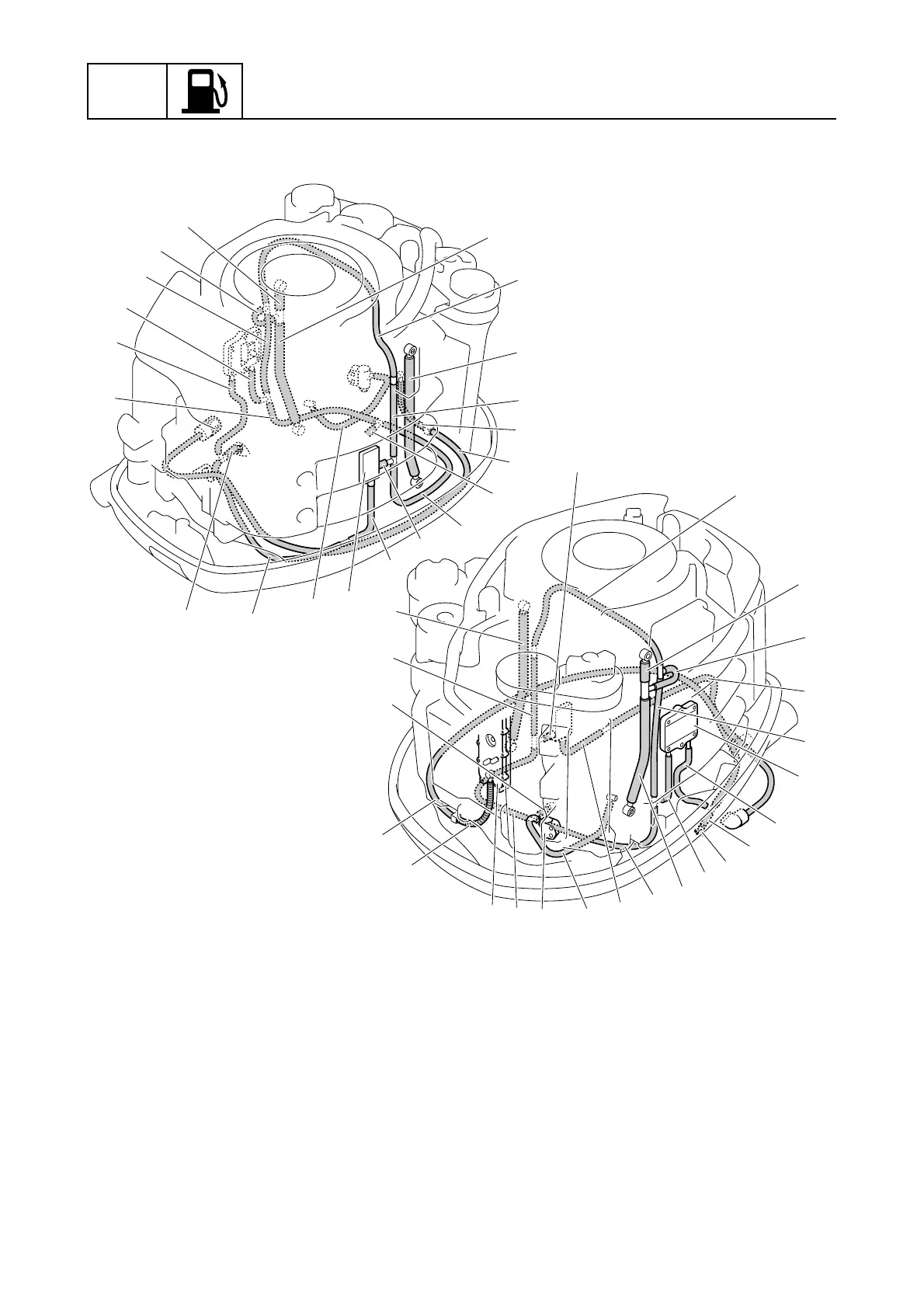

Cooling water hose
1 Cooling water hose (Rectifier Regulator to
joint)
2 Cooling water hose (joint to Rectifier
Regulator)
3 Cooling water hose (joint to joint)
4 Cooling water hose (joint to joint)
5 Cooling water hose (thermostat cover
[STBD] to joint)
6 Cooling water hose (joint to cylinder block)
7 Cooling water hose (joint to joint)
8 Cooling water hose (thermostat cover
[PORT] to cylinder block)
9 Cooling water hose (joint to joint)
0 Flushing hose (joint to cooling water
passage cover)
A Flushing hose (flushing hose adapter to
joint)
B Cooling water hose (cylinder block to joint)
C Cooling water hose (joint to joint)
D Cooling water hose (joint to fuel cooler)
E Cooling water hose (fuel cooler to joint)
F Cooling water hose (cylinder head [STBD]
to adapter [water pressure sensor])
G Cooling water hose (joint to joint)
C
B
8
9
B
8
9
A
0
7
6
1
5
4
3
2
I
H
G
E
D
F
a
b
c
6
0
C
A
2
1
H
3
G
4
5
7
D
F
I
E
d
e
