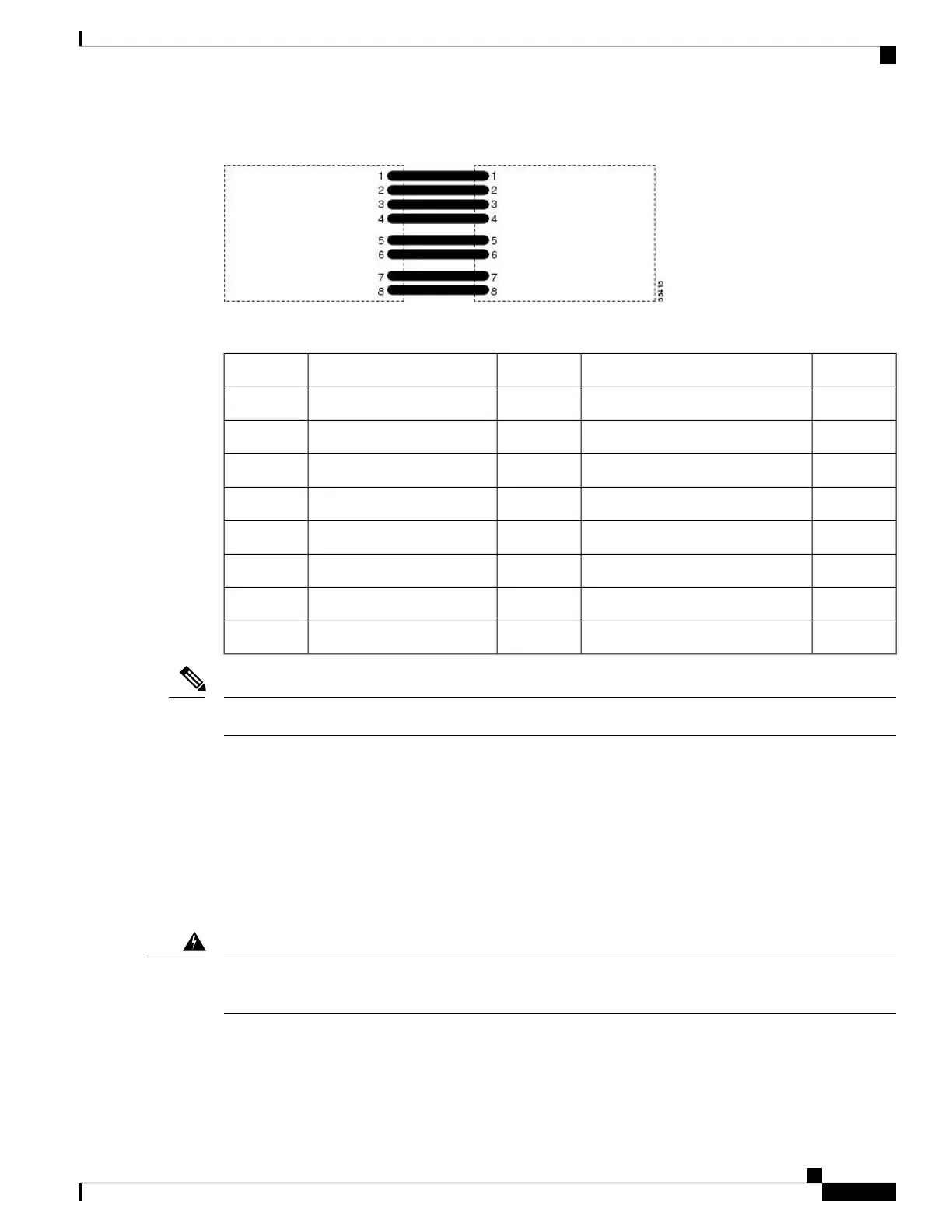

Figure 13: Cross-Over Cable Layout
Table 10: Cross-Over Cable Pinout
PinNamePairColorPin
3Transmit Data +2white/orange1
6Transmit Data –2orange2
1Receive Data +3white/green3
4—1blue4
5—1white/blue5
2Receive Data –3green6
7—4white/brown7
8—4brown8
Odd-numbered pins always connect to a white wire with a colored stripe.
Note
Replace Faulty SFP, SFP+, or XFP Connectors
Small Form-factor Pluggable (SFP), Enhanced Small Form-factor Pluggable (SFP+), and 10-Gbps SFP (called
XFP) modules are input/output devices that plug into some DWDM cards to link the port with the fiber-optic
network. The type of SFP, SFP+, or XFP determines the maximum distance that traffic can travel from the
card to the next network device. For a description of SFP, SFP+, and XFP modules and their capabilities,
refer to the Installing the GBIC, SFP, SFP+, and XFP Optical Modules in Cisco ONS Platforms. SFP, SFP+,
and XFP modules are hot-swappable and can be installed or removed while the card or shelf assembly is
powered and running.
Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams
or view directly with optical instruments. Statement 1051.
Warning
Cisco NCS 2000 series Troubleshooting Guide, Release 11.0
61
General Troubleshooting
Replace Faulty SFP, SFP+, or XFP Connectors
