FrontSuspensionComponentsSTEERINGANDFRONTSUSPENSION
NOTE:Newbushingsmaynottthekingpinafterinstallingthemintothespindle).Reamnewbushingsasrequired.
14.1.Afterinstallingnewbushings,reambushingsto0.753inch(±0.0005)(19.13mm(±0.013)).
KINGPINANDSTEERINGSPINDLEINSTALLATION
1.Inspectallpartsandreplacethemasnecessary.
2.Installthekingpins(1)overtheleafspringeyes(Figure7-18).
5
4
3
1
2
9
8
7
6
1312D

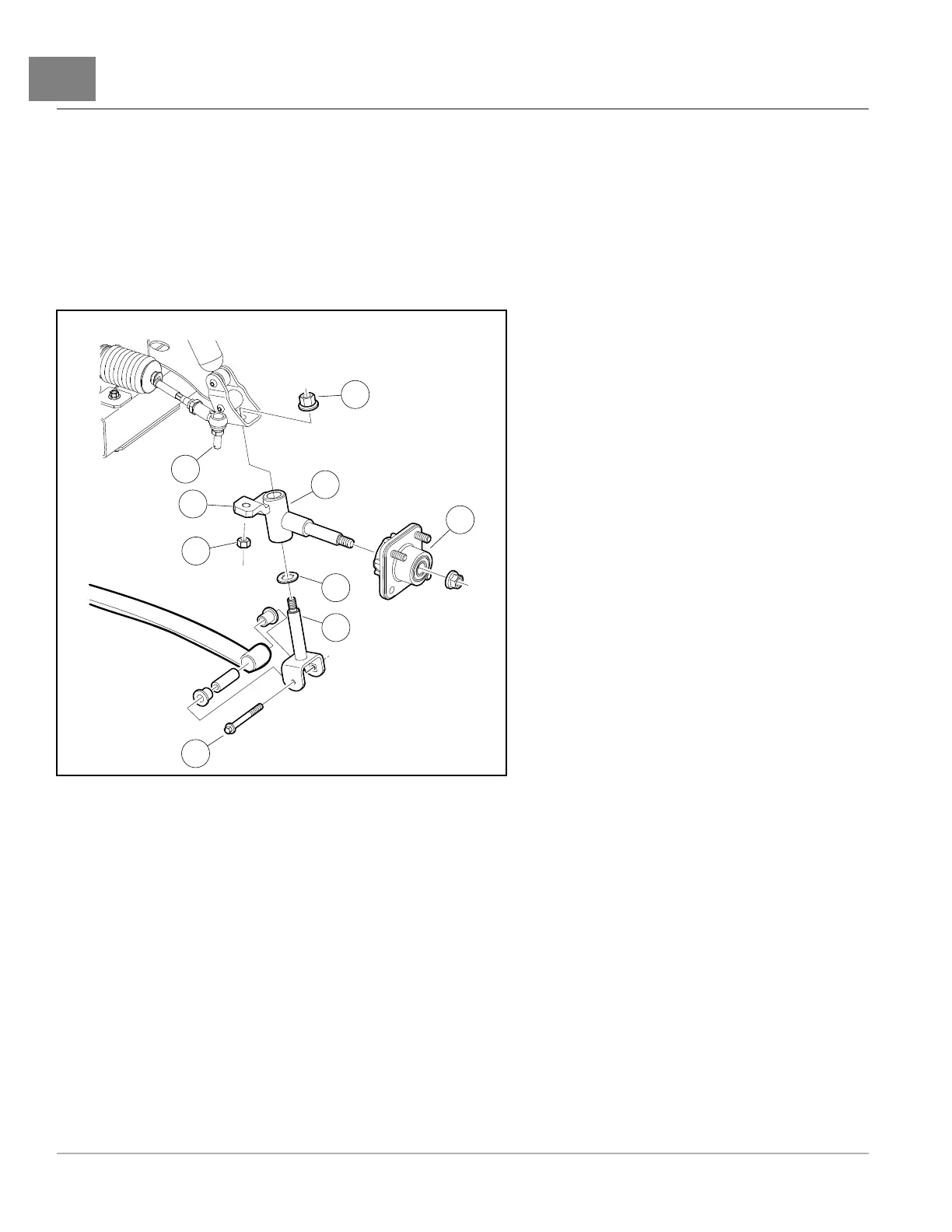

Figure7-18KingpinandSteeringSpindleInstallation
3.Installthebolts(2).Tightentheboltto30lb·ft(41N·m).
4.Installthewavewashers(3)onthekingpin.
5.Installthesteeringspindles(4)onthekingpins.
6.Puttheupperclevisoverthekingpinthreadsandinstallnuts(5).Tightenthenutsto70lb·ft(95N·m).
7.Installthetierodends(6)tothespindletabs(7).
8.Installthenuts(8).Tightenthenutsto70lb·ft(95N·m).
9.Installthefronthubs(9).
10.Installthefrontwheels.
11.Adjustthecamberandtoe-in.
12.ElectricVehicle:Connectthebatteries.
GasolineVehicle:Connectthebatteryandsparkplugwire.
Page7-162020Precedent,Villager2and4MaintenanceandServiceManual

Club Car Precedent Specifications

General

Power Source	Electric
Batteries	Six 8-volt (Electric)
Brakes	Mechanical Drum
Seating Capacity	2
Overall Length	91.5 in
Overall Width	47 in
Range	Up to 30 miles (depending on conditions)
Frame	Aluminum
Suspension	Leaf spring (front and rear)
Tires	18 x 8.5-8
Payload Capacity	800 lb
