Club Car Precedent Maintenance And Service Manual

19
Starter/Generator
GASOLINEVEHICLE-ELECTRICAL
COMPONENTS
1
2
4
3
F1
DF
F2
3033

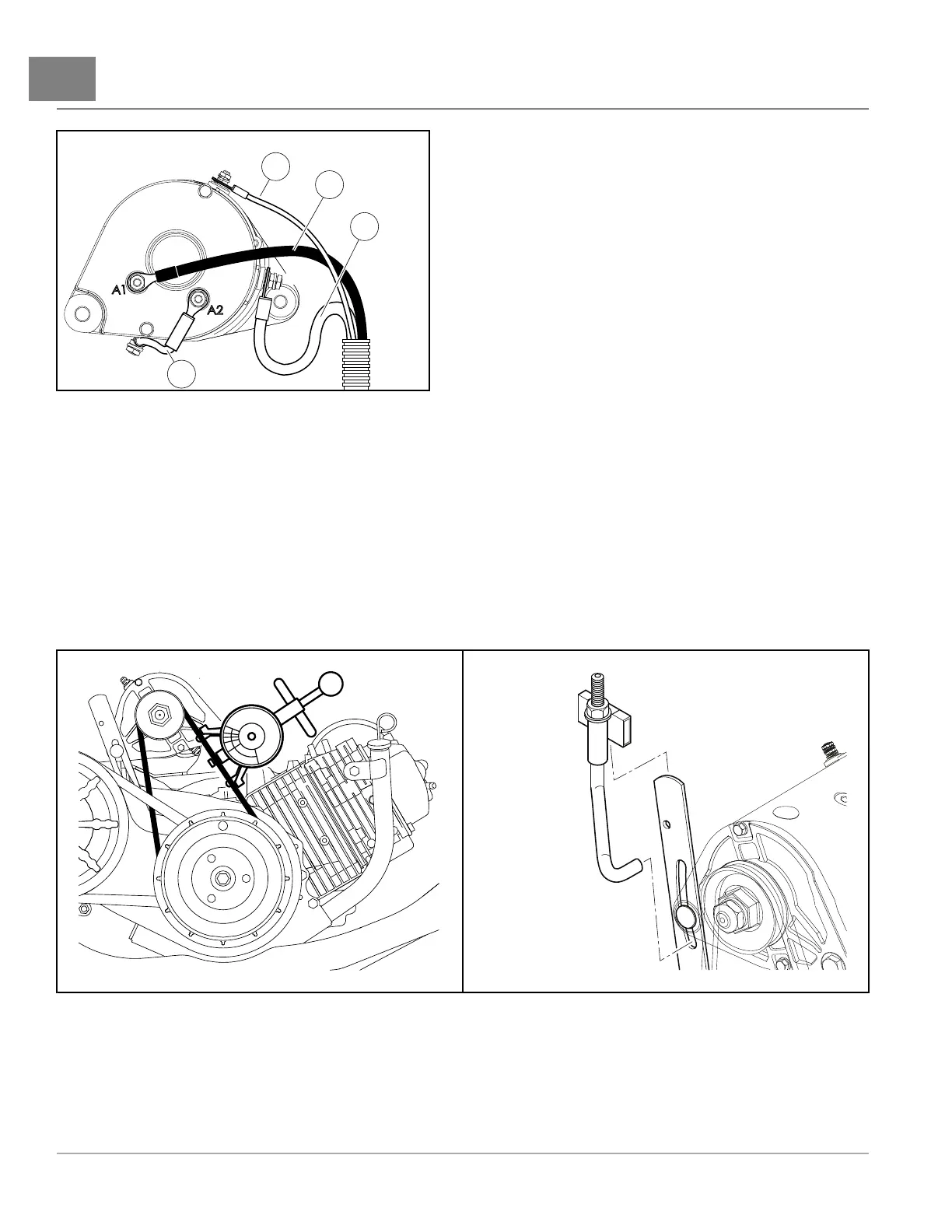

Figure19-14Starter/GeneratorWiring
BELTTENSIONADJUSTMENTFOREFIENGINES
NOTE:TopreventbeltslippingwhilestartinganEFIengine,followprocedureoutlinedbelowwhichisbestperformed
bytwopeopletoexpeditetheprocess,butcanbeperformedbyasingleindividualifrequired.
Theamountastarter/generatorbeltistensionedvariesbetweenausedandnewbelt.
EFIengineshavehigherstartingtorquedemandsthatrequireconsistentbelttensiontopreventslipping.Belttension
shouldbecheckedperiodically.
Locategaugemidwaybetweenpulleys.
2724
Figure19-15BeltTensionGauge
2725
Figure19-16BeltTensioningToolInstallation
1.Disconnectbatteryandsparkplugwire.SeeDisconnecttheBattery-GasolineVehiclesonpage1-3.
2.Accessenginecompartment.
–Removeseatandrearaccesspanel(ifequipped).
–Raisecargobed(ifequipped).
Page19-162020Precedent,Villager2and4MaintenanceandServiceManual

Club Car Precedent Specifications

General

Power Source	Electric
Batteries	Six 8-volt (Electric)
Brakes	Mechanical Drum
Seating Capacity	2
Overall Length	91.5 in
Overall Width	47 in
Range	Up to 30 miles (depending on conditions)
Frame	Aluminum
Suspension	Leaf spring (front and rear)
Tires	18 x 8.5-8
Payload Capacity	800 lb
