Club Car Precedent Maintenance And Service Manual

CONTROLLERDIAGNOSTICTOOL(CDT)PluggingtheCDTintotheVehicle
11
PLUGGINGTHECDTINTOTHEVEHICLE
694

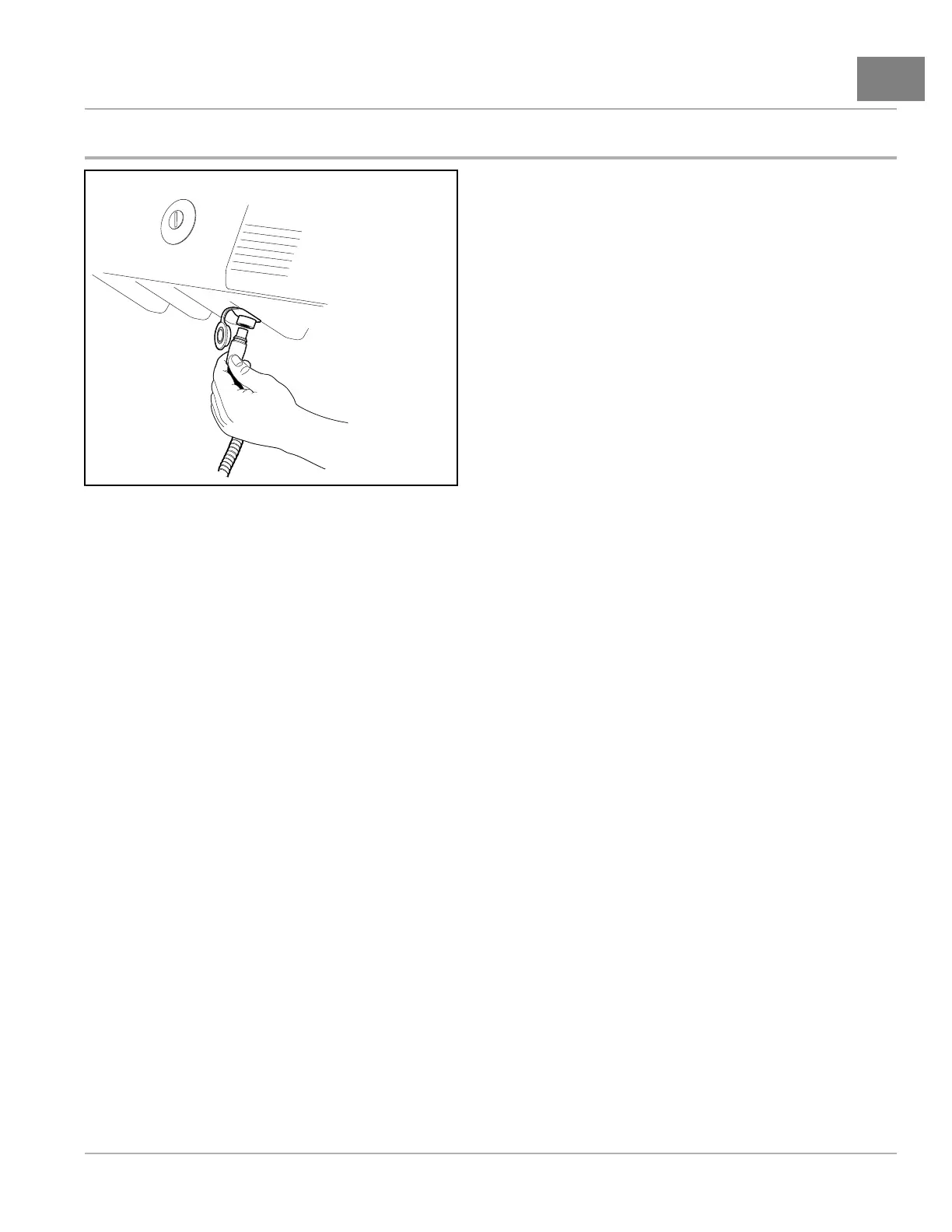

Figure11-2CommunicationPortUnderInstrumentPanel
1.ConnectoneendofthecabletotheportlocatedonthebottomoftheCDT.
2.ConnectthecableadaptortotheCDTcable.
3.Findthecommunicationportonthevehicle(Figure11-2,Page11-3).
4.Removethedustcapfromthecommunicationport.
5.Alignthekeyedportionoftheplugwiththecommunicationportandinsertplugintoport.
INTRODUCTORYDISPLAY
ImmediatelyaftertheCDTisconnectedtothevehicle,itbeginsloadingcontrollerinformation.Duringthistime,the
loadingstatusisshownasapercentage,theCDT'ssoftwareversionisgiven,andstatus/informationiconsappearin
theupperrightcorner.Onceloadingiscomplete,thescreendisplaystheMainMenu.
NOTE:IfthePowerbuttonisusedtoturnONthehandsetandthehandsetisnotconnectedtoavehicle,themessage
“NoSystemDetected”willbedisplayed.
Intheeventthatthehandsetdoesnotdisplayanyinformation,orthescreenisdifculttoread,refertotheCDT
troubleshootingprocedures.SeeCDTTroubleshootingonpage11-26.
2020Precedent,Villager2and4MaintenanceandServiceManualPage11-3

Club Car Precedent Specifications

General

Power Source	Electric
Batteries	Six 8-volt (Electric)
Brakes	Mechanical Drum
Seating Capacity	2
Overall Length	91.5 in
Overall Width	47 in
Range	Up to 30 miles (depending on conditions)
Frame	Aluminum
Suspension	Leaf spring (front and rear)
Tires	18 x 8.5-8
Payload Capacity	800 lb
