F.18 Part. no. 8000 H1489 (10-2009)

ENGINE DISASSEMBLY

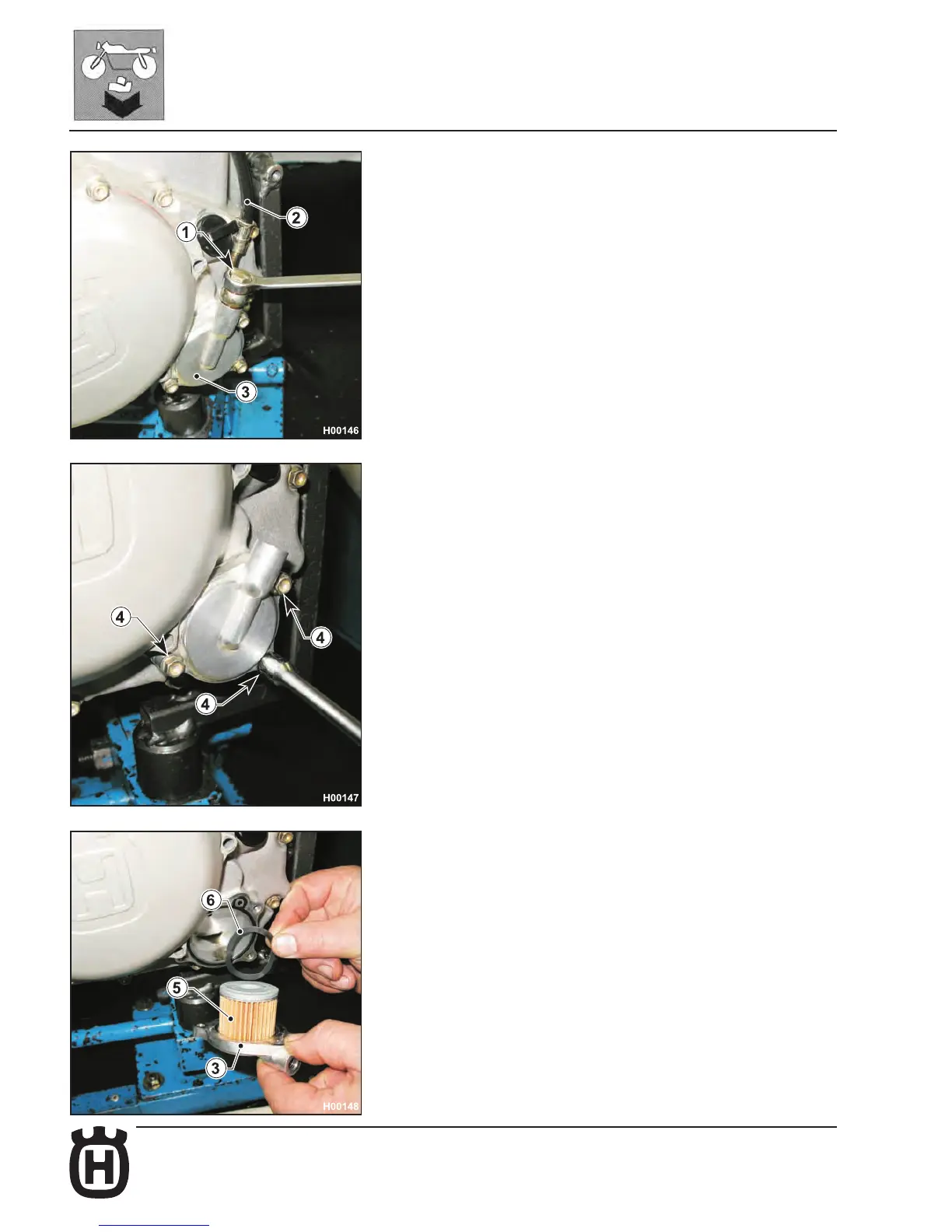

Oil lter removal

- Loosen the drilled nut (1) and disconnect the hose (2) from the oil pump cover

(3).

- Loosen the three screws (4) using an 8 mm wrench.

- Remove the cover (3) together with its lter (5) and Belleville washer (6).
