H.20 Part. N. 8000 H1489 (10-2009)

ENGINE REASSEMBLY

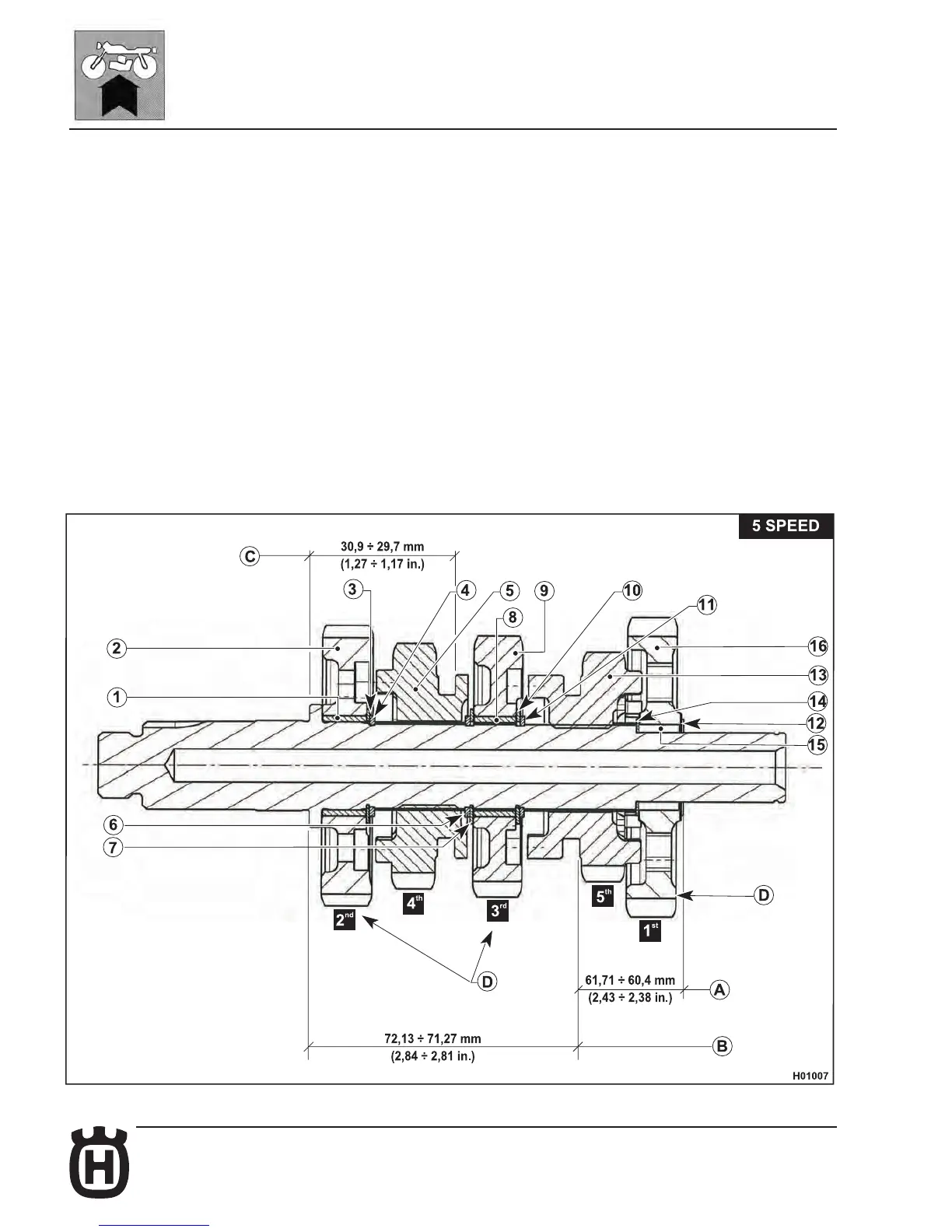

Output shaft (5 SPEED)

Fit the roller cage (1).

Fit 2nd gear (2), washer (3) and retaining ring (4).

Fit 4th gear (5) and retaining ring (6).

Fit the washer (7).

Fit roller cage (8) and 3rd gear (9).

Fit washer (10) and retaining ring (11).

Apply “MOLYKOTE G-n plus” on the 3rd gear (9).

Fit 5th gear (13) and washer (14).

Fit roller cage (15), 1st gear (16) and washer (12).

A: with 1st gear engaged

B: with 3rd gear engaged

C: with 2nd gear engaged

D: lubricate with MOLYKOTE G-n plus

Husqvarna TE 250 2010 Repair Manual
