Husqvarna TE 250 2010 Repair Manual

F.30 Part. no. 8000 H1489 (10-2009)
ENGINE DISASSEMBLY

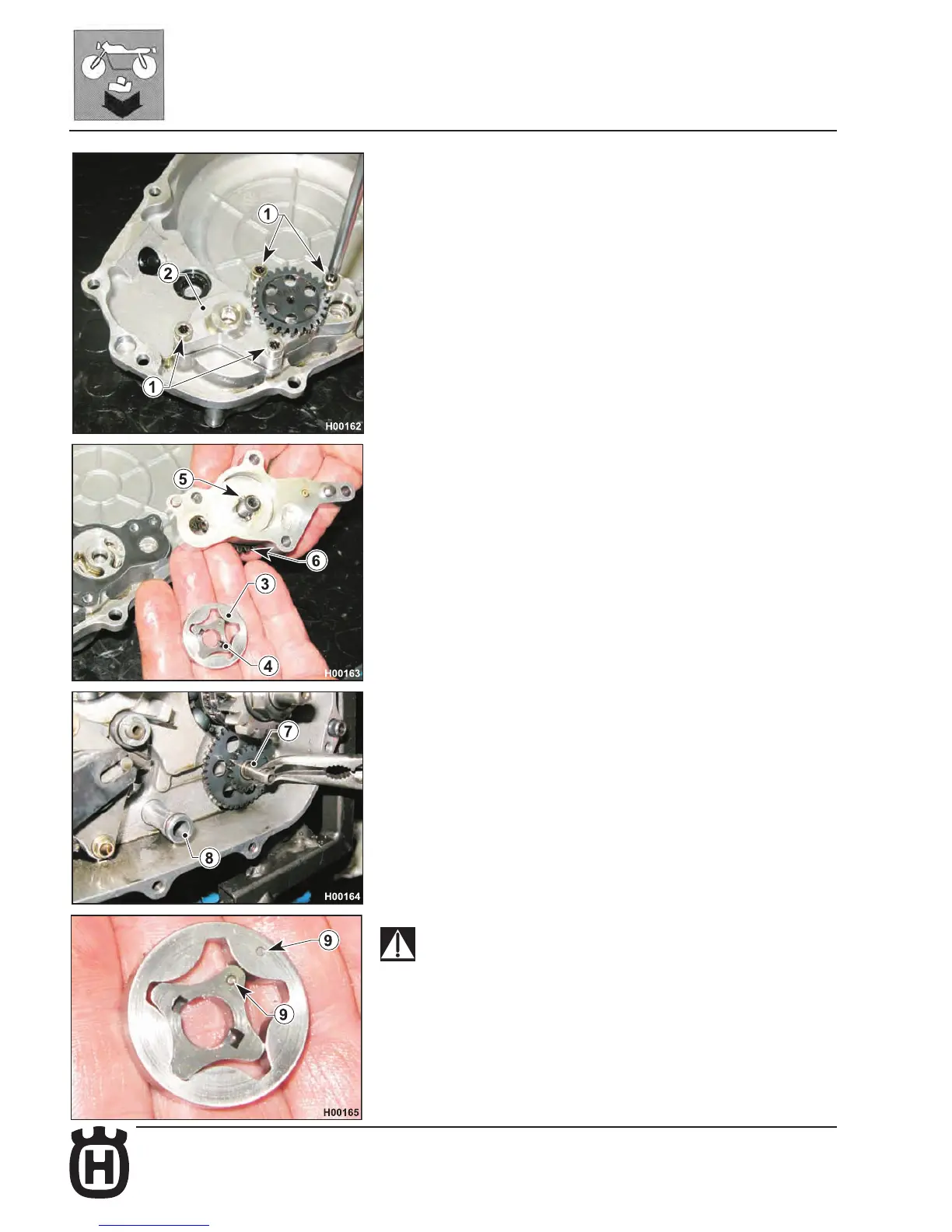

Oil pump disassembly
- Loosen the screws (1) using a 4 mm Allen wrench and remove pump body
(2) and gasket.
- Remove the pump rotors (3) and (4) and extract the drive pin (5) to release
the gear (6).
- Remove drive gear (7) and oil suction stub (8).
Make sure to align the rotor dots (9) on assembly.
Gear shift pedal and selector assembly removal
