Changing handlebar position and height

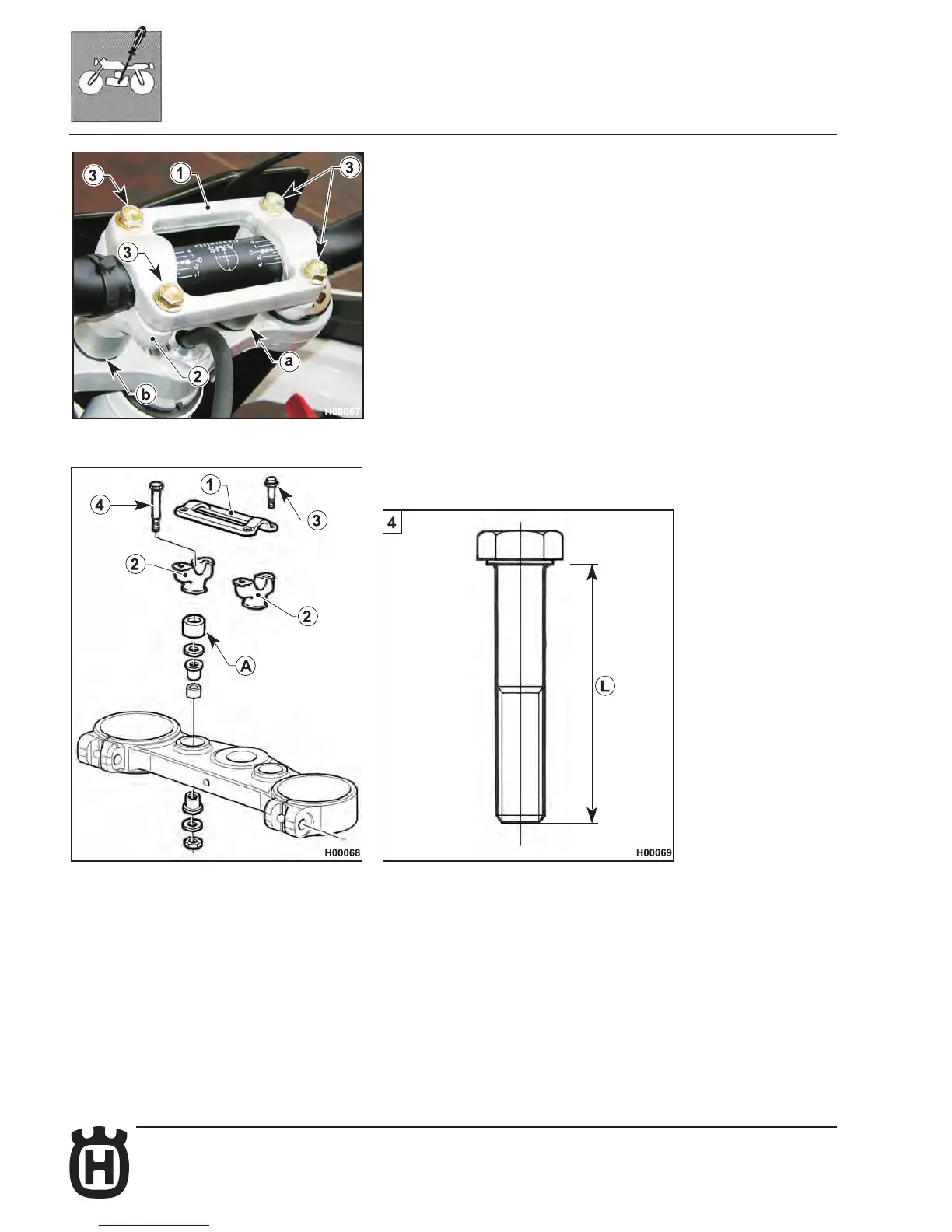

Handlebar position (a) and height (b) can be modied to better suit your personal
preferences. To perform these adjustments, remove the handlebar clamp bolts
(3) and (4), and then remove the handlebar upper (1) and lower (2) clamps.
a) Changing handlebar position
Rotate the lower clamp by 180° to move handlebar position forward or back-
ward (10 mm - 0.04 in.).
b) Changing handlebar height
Remove the lower spacer (A) and replace the screw (4) with a 65 mm long
screw.
When nished, tighten the bolts (3) to 2.75-3.05 kgm (27 -30 Nm; 19.9-22 lb/ft)
and the bolts (4) to 2.0-2.2 kgm (19.6 -21.6 Nm; 14.5-15.9 lb/ft).
