Rear shock absorber removal
Set a block under the engine and see that the rear wheel is lifted from the
ground.
Remove saddle, side panels, silencer and rear chassis (see Section "E" - General
Procedures). Loosen the front clamp (1) of the intake coupling.

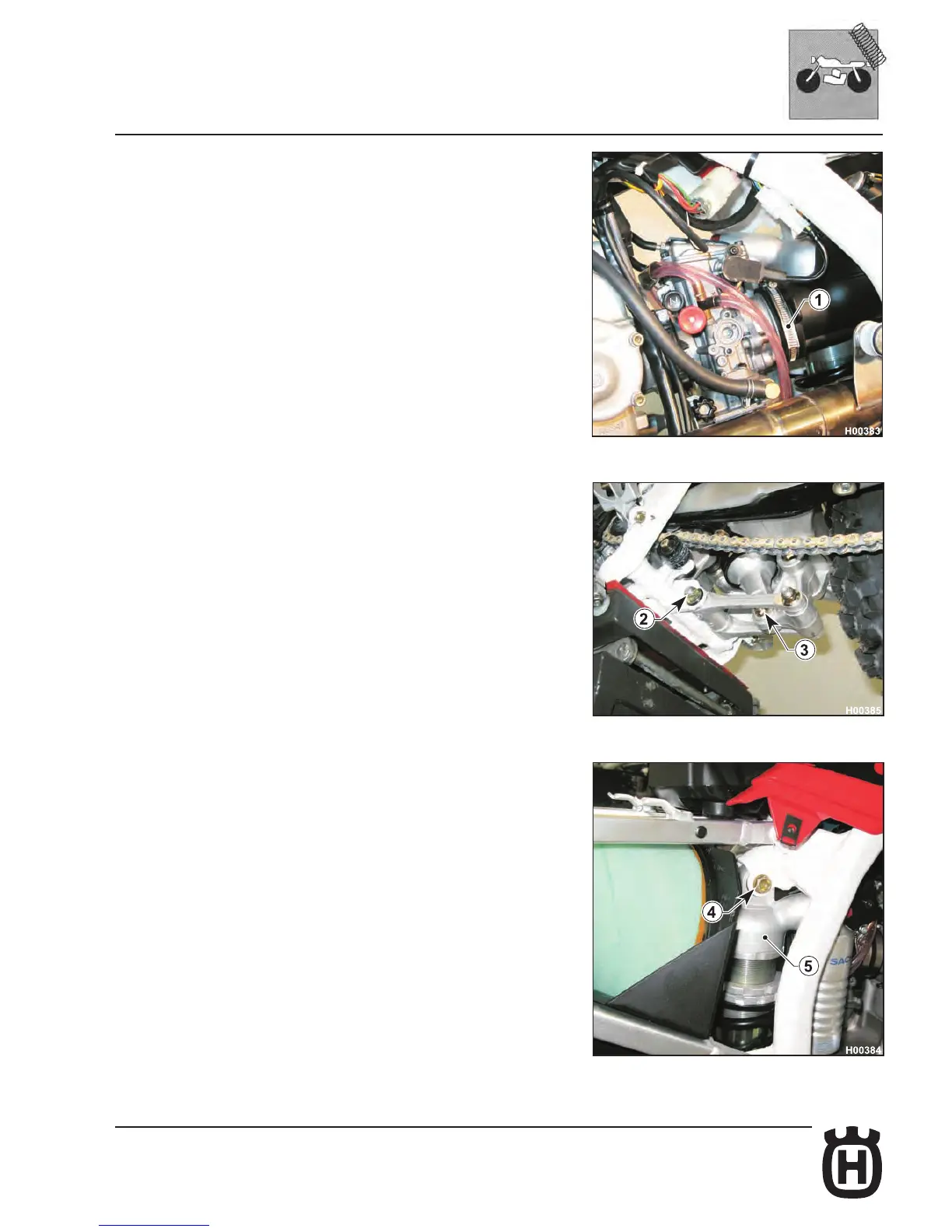

Remove the front bolt (2) securing the suspension linkage to the chassis, the
bottom (3) and top (4) shock absorber mounting bolts and remove the shock
absorber (5).
IMPORTANT: On assembly, t the bottom locking nut (3) of the shock absorber
on the LEFT SIDE.
