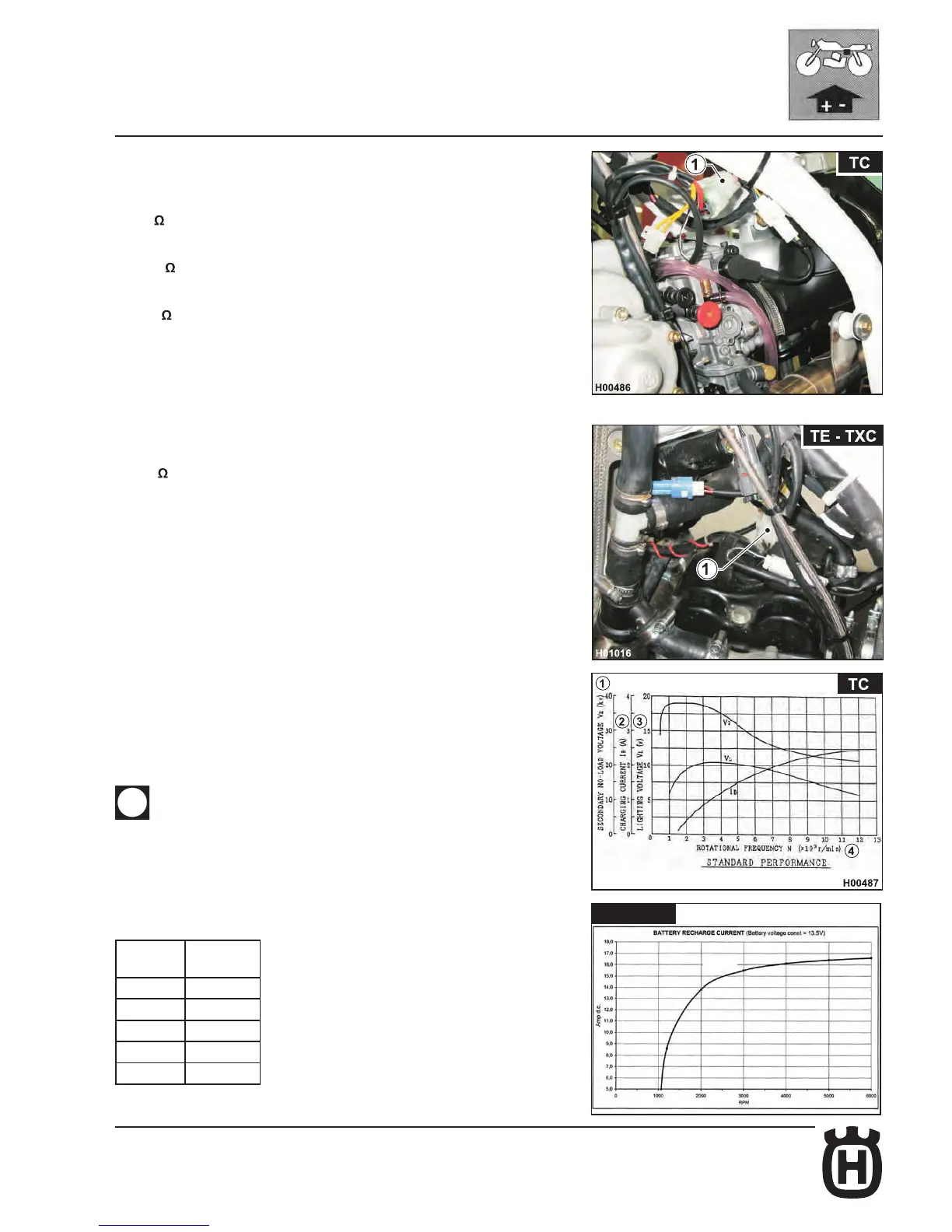

TC
1) Take following measurements at the connector (1):
EXCITER:
Resistance between BLACK-RED and RED-WHITE wires:
24 +/- 15%.
CHARGE:
Resistance between YELLOW-YELLOW wires:
0.65 +/- 15%.
PULSER:
Resistance between RED-GREEN wires:
100 +/- 15%.
TE - TXC
1) Measure across the terminals of the connector (1); correct value is about
0.6 .
If resistance is outside the specied limits, replace the complete generator.
Generator no-load performance (TC)
1- Secondary winding voltage under no-load conditions
2- Battery charging current
3- Light voltage
4- RPM
AT EACH ENGINE OVERHAUL, CLEAN FLYWHEEL ROTOR TO
REMOVE ANY DEBRIS SUSPENDED IN SWIRLING OIL AND CAP-
TURED BY THE MAGNETS.
Generator no-load performance (TE-TXC)
RPM A D.C.
(typical)
1200 8.6
2000 13.8
3000 15.5
5000 16.4
6000 16.6
