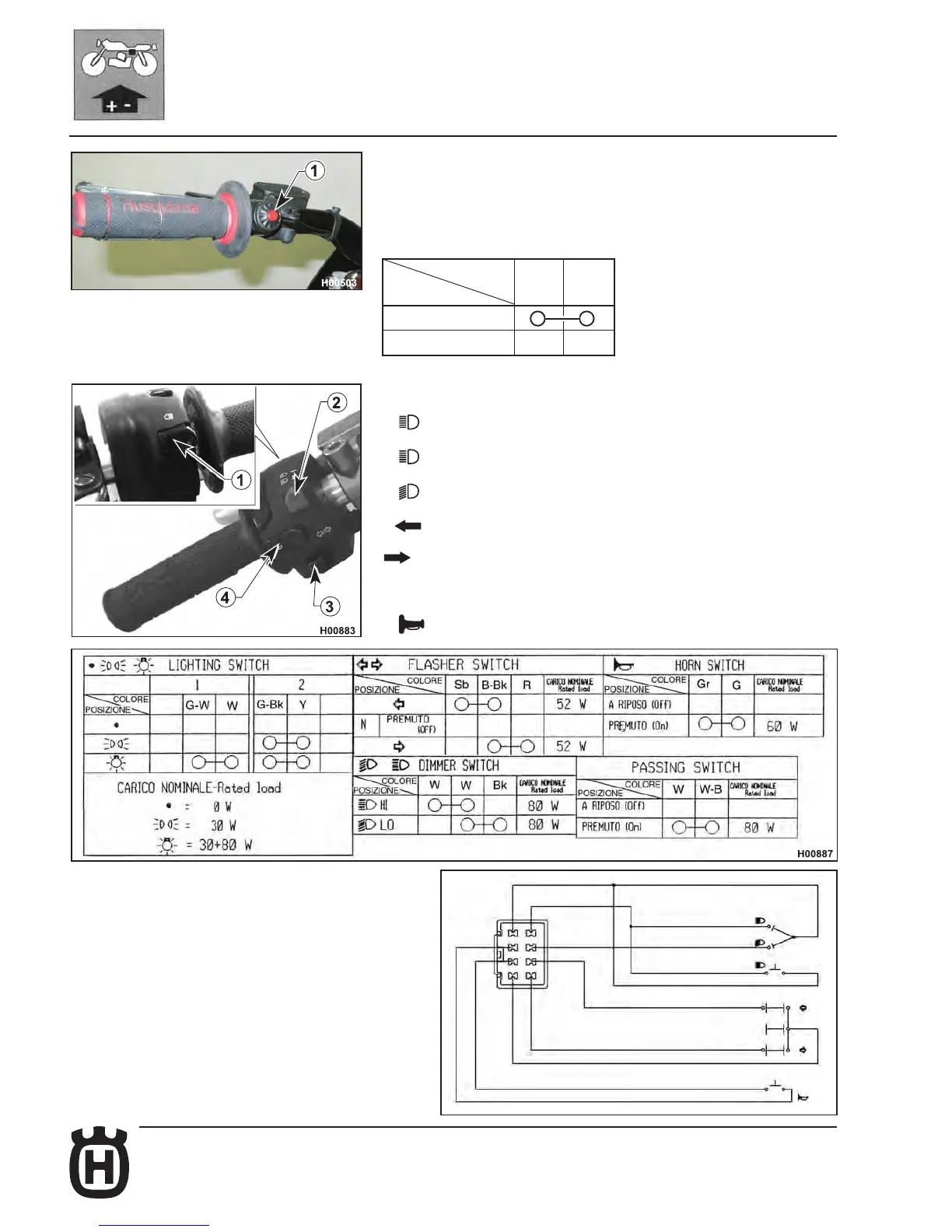

Handlebar switches
Measure continuity on the different switches using a meter. Replace any part
found to be faulty.
Left-hand switch (TC)
POSITION
COLOUR
1 Engine stop switch (TC)
Left-hand switch (TE)
1.
High beam asher (self-cancelling)
2. High beam switch
Low beam switch
3. Left-hand turning indicators (self-cancelling)
Right-hand turning indicators (self-cancelling)
To deactivate the turning indicators, press the control lever after it is returned
to the centre.
4.
Horn.
Colour coding key
B
................... Blue
Bk ................. Black
B-Bk .............. Blue-Black
B-W ............... Blue-White
G ................... Green
G-Bk ............. Green-Black
G-W .............. Green-White
Gr .................. Grey
Y ................... Yellow
R ................... Red
Sb ................. Sky blue
W .................. White
W-B ............... White-Blue
W-Bk ............. White-Black
