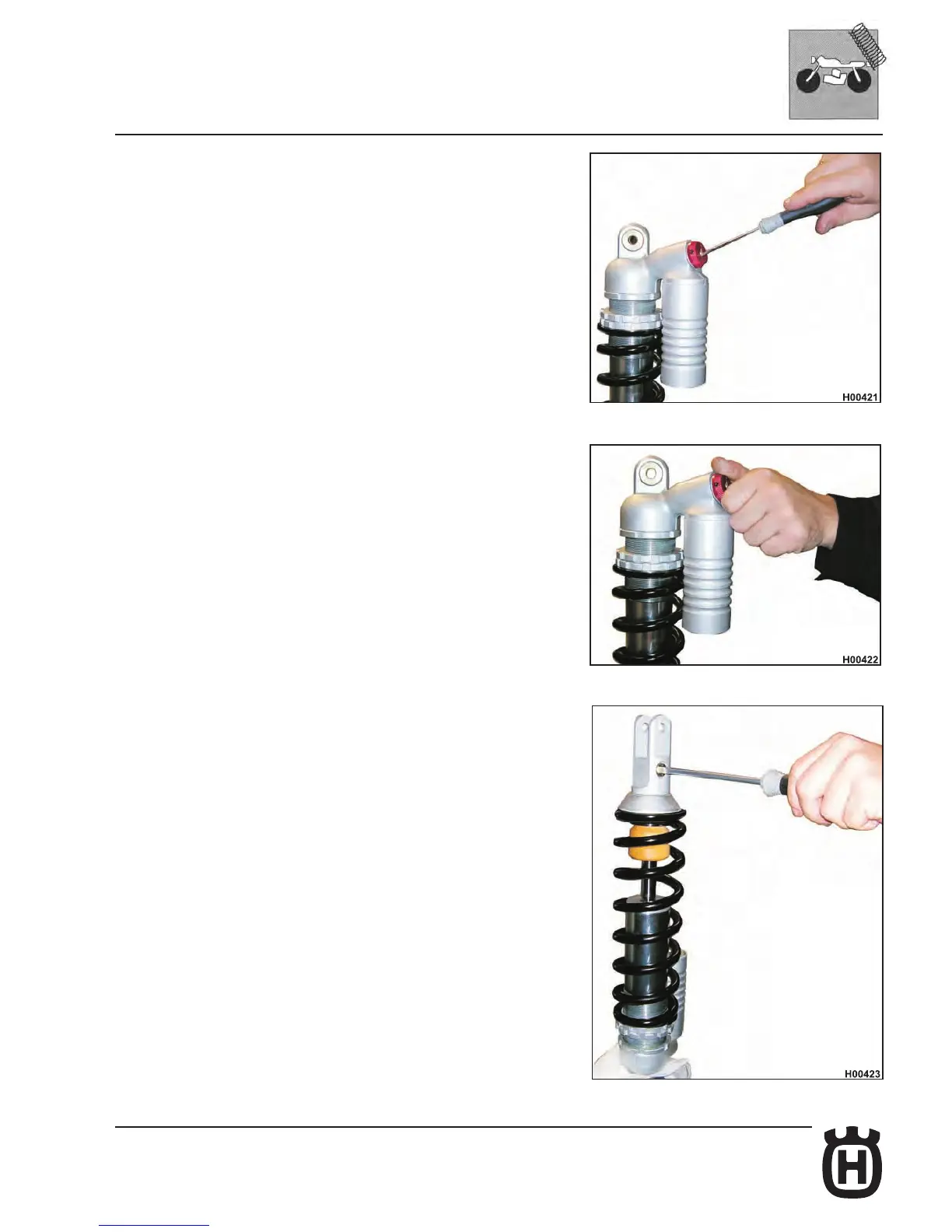

Shock absorber damping adjustment
Adjustment of the compression stroke is independent from the rebound
stroke.
A) COMPRESSION - Standard setting:
1) Low damping speed:
-15 clicks (± 2 clicks)
(adjuster screw 1)
2) High damping speed:
-15 clicks (± 2 clicks)
(adjuster screw 3)
To reset the standard setting, turn upper adjuster screws (1) and (3) clockwise
until reaching fully closed position. Then turn them back the number of clicks
specied above.
In order to obtain a smooth braking action, turn the adjuster screws counter
clockwise. Vice versa to obtain a harder braking action.
B) REBOUND - Standard setting:
-18 clicks (± 2 clicks)
To reset the standard setting, turn lower adjuster screw (2) clockwise until reach-
ing fully closed position. Then turn it back by the mentioned clicks.
In order to obtain a smooth braking action, turn the adjuster screw counter
clockwise. Vice versa to obtain a harder braking action.
