ENGINE REASSEMBLY

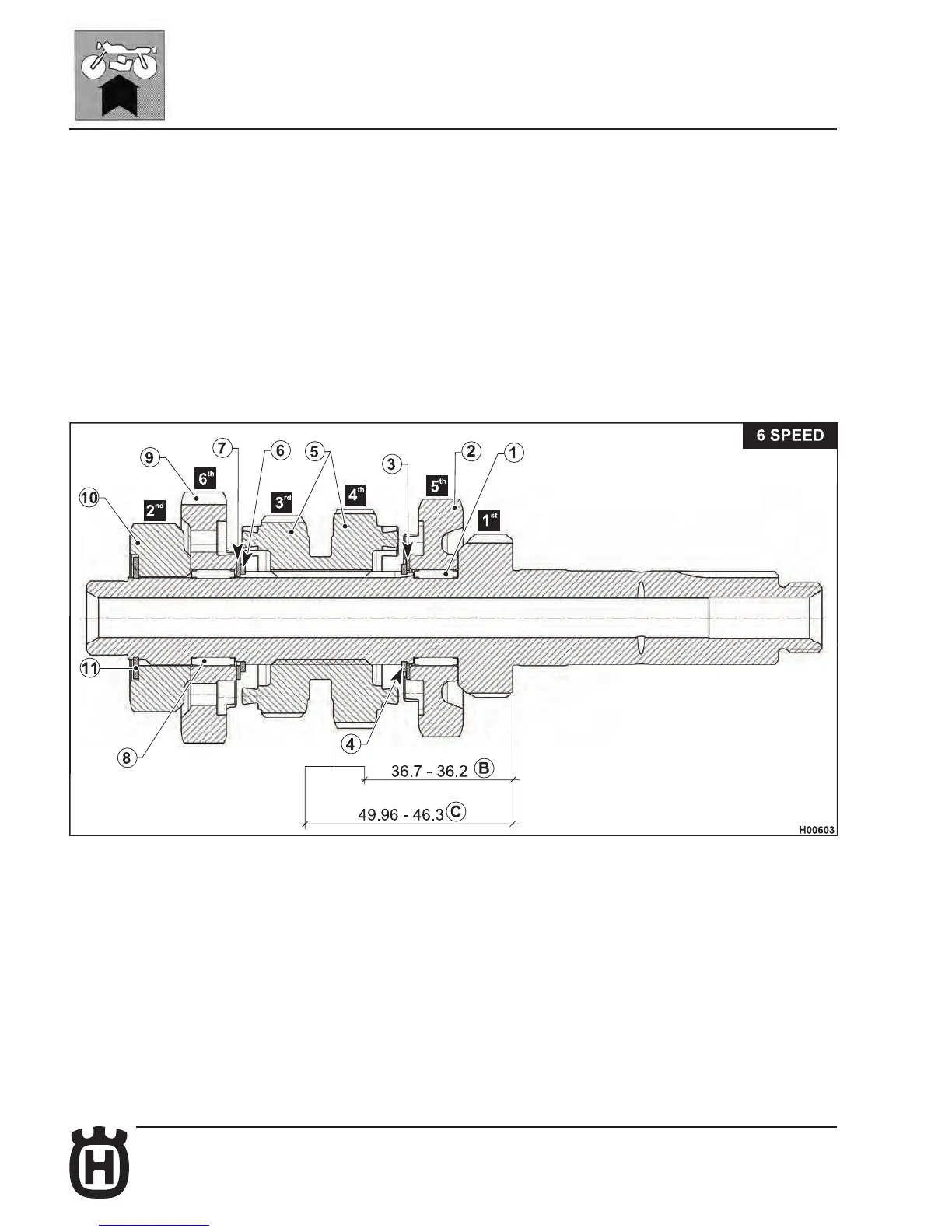

Input shaft (6 SPEED)

Fit roller cage (1) and 5th gear (2) on the bushing and then install the washer

(3) and the retaining ring (4). The washer must be placed between gear and

retaining ring. Fit 3rd/4th gear (5), retaining ring (6) and washer (7).

Fit the roller cage (8).

Fit 6th gear (9).

Fit 2nd gear (10).

Fit the circlip (11).

B: with 5th gear engaged and 5th gear in contact with 1st gear.

C: with 4th gear in contact with 6th gear.
