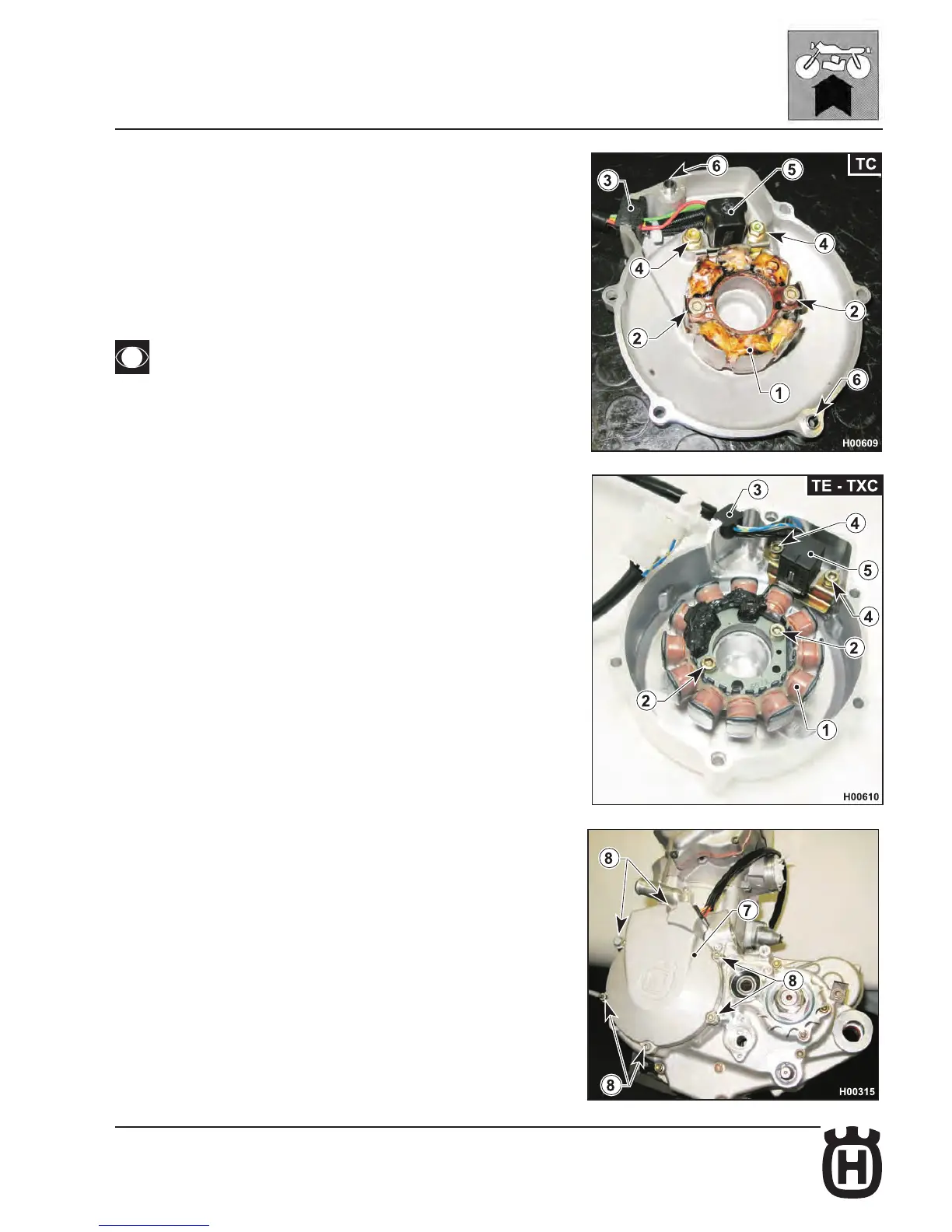

Flywheel cover installation
Install the stator (1) with its mark lined up with the ywheel cover mark and tighten
the two retaining screws (2) (use a 4 mm Allen
wrench, 6 Nm, 0.6 Kgm, 4.3 ft/lb + Loctite 272).
Insert the cable guide (3) into its seat in the cover and tighten the two retaining
screws (4) of the pick-up sensor (5) with its plate (6 Nm, 0.6 Kgm, 4.3 ft/lb +
Loctite 272).
Install the ywheel cover (7) with its gasket and tighten the six screws (8) to 6
Nm, 0.6 Kgm, 4.3 ft/lb.
Make sure the two centring bushings (6) are in place.
