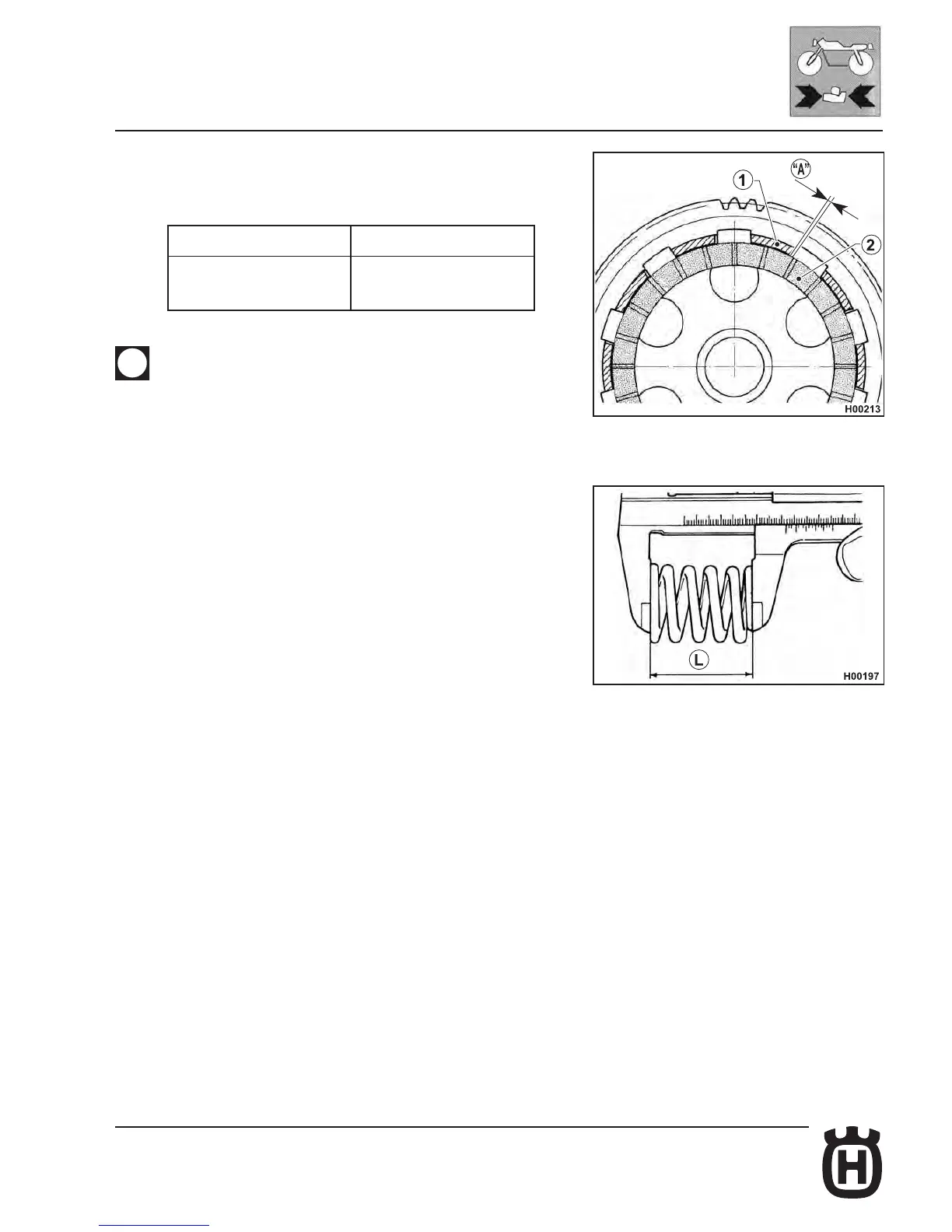

Friction plate to clutch housing clearance
Measure clearance "A" between clutch housing (2) and plate (1) with a feeler
gauge and compare measured clearance with the table below.
If measured clearance exceeds the service limit, replace clutch
plates or housing and repeat measurement. If measurement is still
outside the service limit, replace the complete clutch assembly.
Clutch spring
Measure the free length “L” of each spring with a calliper.
New spring L= 37.3 mm (1.4685 in.).
Service limit: 35 mm (1.3779 in.).
Change any spring that is outside the service limit.
STANDARD SERVICE LIMIT
0.30-0.50 mm
(0.012-0.020 in.)
0.6 mm
(0.024 in.)
