Fork components
The SHIVER 50 Factory Works fork uses a multi-valve damping system with the
same conguration on both fork leg.
Each fork leg is a complete suspension system to be set up separately.
3) Compression adjuster
11) Outer tube
12) Bottom sliding bushing
13) Retainer
14) Sealing ring
16) Dust seal
19) Spring
24) Rebound adjuster rod
25) Rod
26/37) Washer return spring
33) Rebound damping piston washers
35) Cartridge case
39) Compression piston
41) Compression valve washers
43) Compression valve
44) Inner tube
46) Top sliding bushing
48) Bottom nut
53) Spring preload adjuster
70) Wheel axle carrier
71) Rebound adjuster
72) Rebound adjuster taper needle

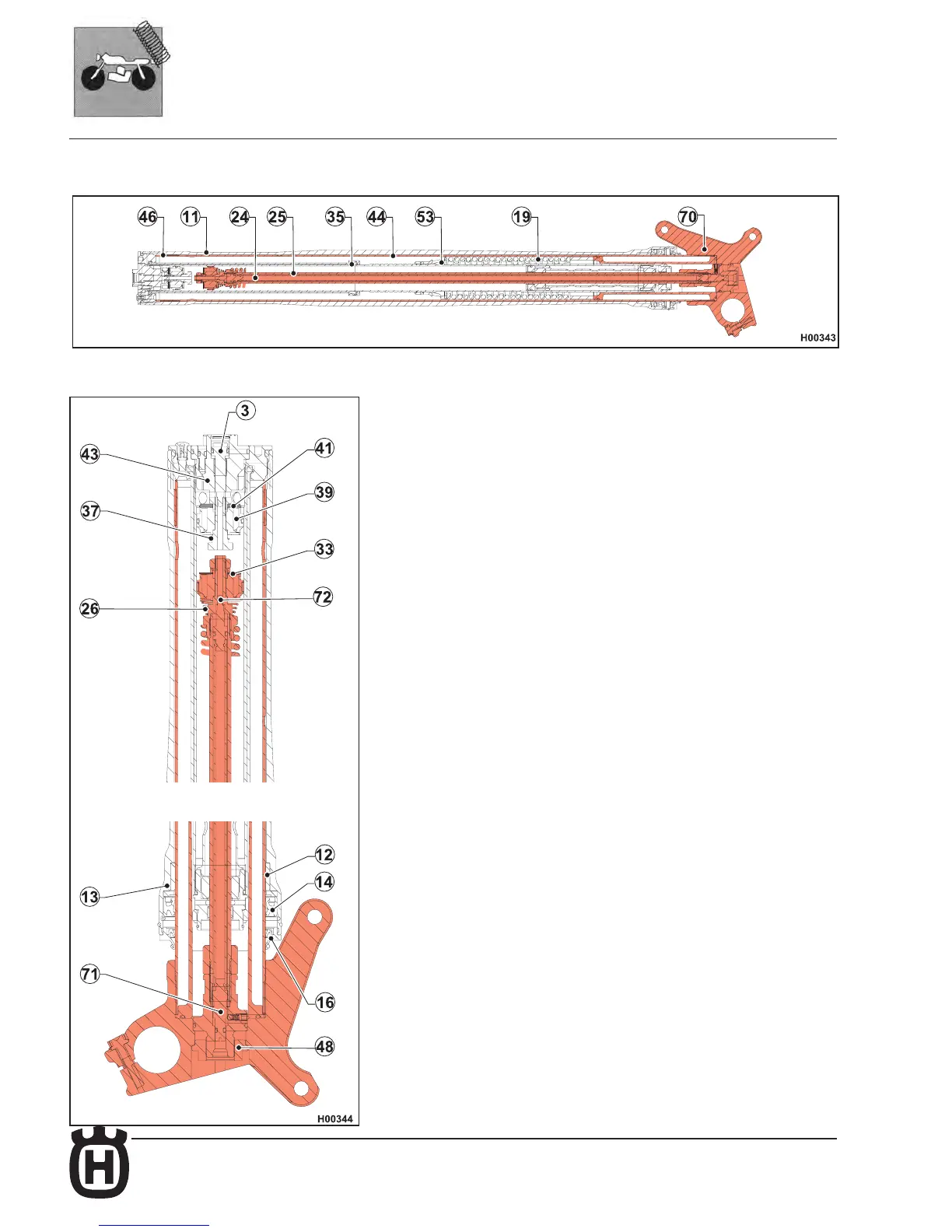

In the next gure, moving parts that support the wheel are shown in grey, whereas
those parts that are xed to the motorcycle chassis are shown in white.
