M.33
H01040
H01041
B
Bk-Br
Y-Sb
Br
Part. N. 8000 H1489 (10-2009)
ELECTRICAL SYSTEM

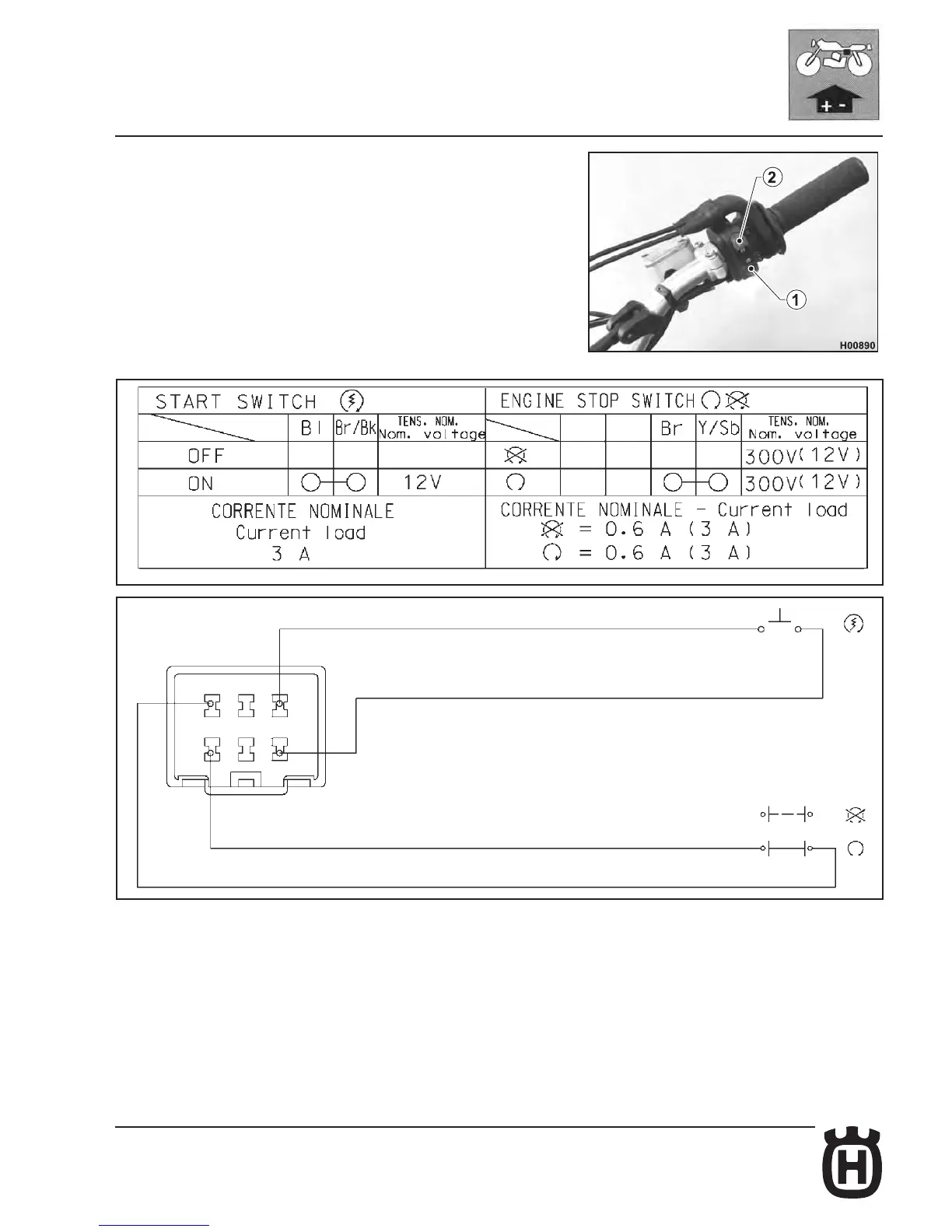

Right-hand switch (TE - TXC)
1. Engine start button
2. Engine start/stop switch
Colour coding key
B
................... Blue
Br .................. Brown
Br-Bk ............. Brown-Black
Y-Sb .............. Yellow-Sky blue
