The electrical system includes the following elements:
- 12V-6Ah battery under the saddle;
- Turning indicator asher on left side of rear chassis;
- Relay for electric fan, fuel injection system and lights on right side of chassis:
- Electric fan;
- Two 15A fuses and one 20A fuse on right side of rear chassis;
- Coolant temperature sensor;
- Lambda sensor;
- Headlamp with 12V-35W twin halogen bulb and 12V-3W parking light bulb;
- LED tail light with stop light bulb;
- 12V-10W turning indicator bulbs;
- Fuel pump inside the fuel tank.
- Odometer.

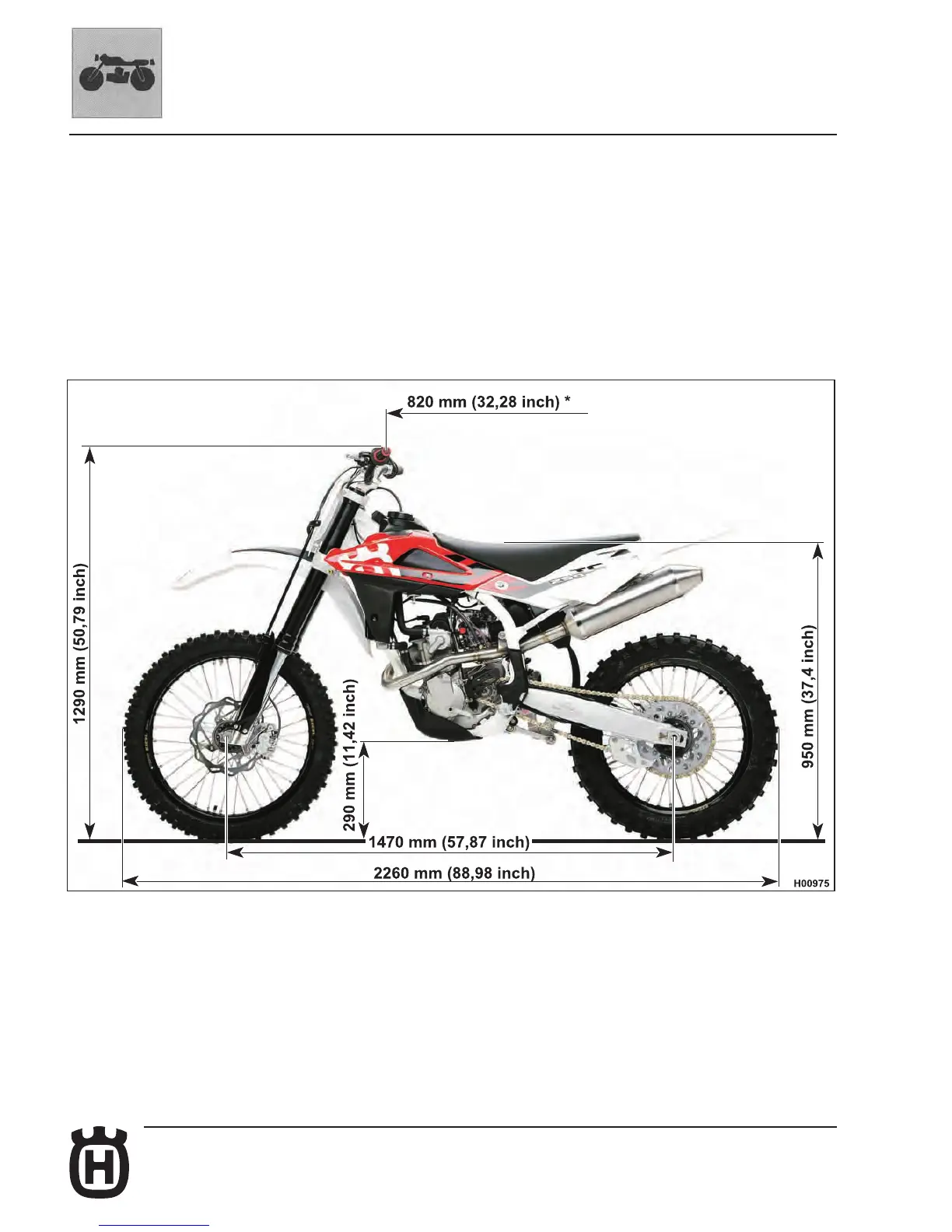

Overall dimensions - Weight
Kerb weight, without fuel (TC): ..................................................95 Kg (209.4 lb)
Kerb weight, without fuel (TE): .............................................102.5 Kg (225.9 lb)
Kerb weight, without fuel (TXC): .............................................99.5 Kg (219.3 lb)
*: max. width
