Husqvarna TE 250 2010 Repair Manual

M.40 Part. N. 8000 H1489 (10-2009)
ELECTRICAL SYSTEM

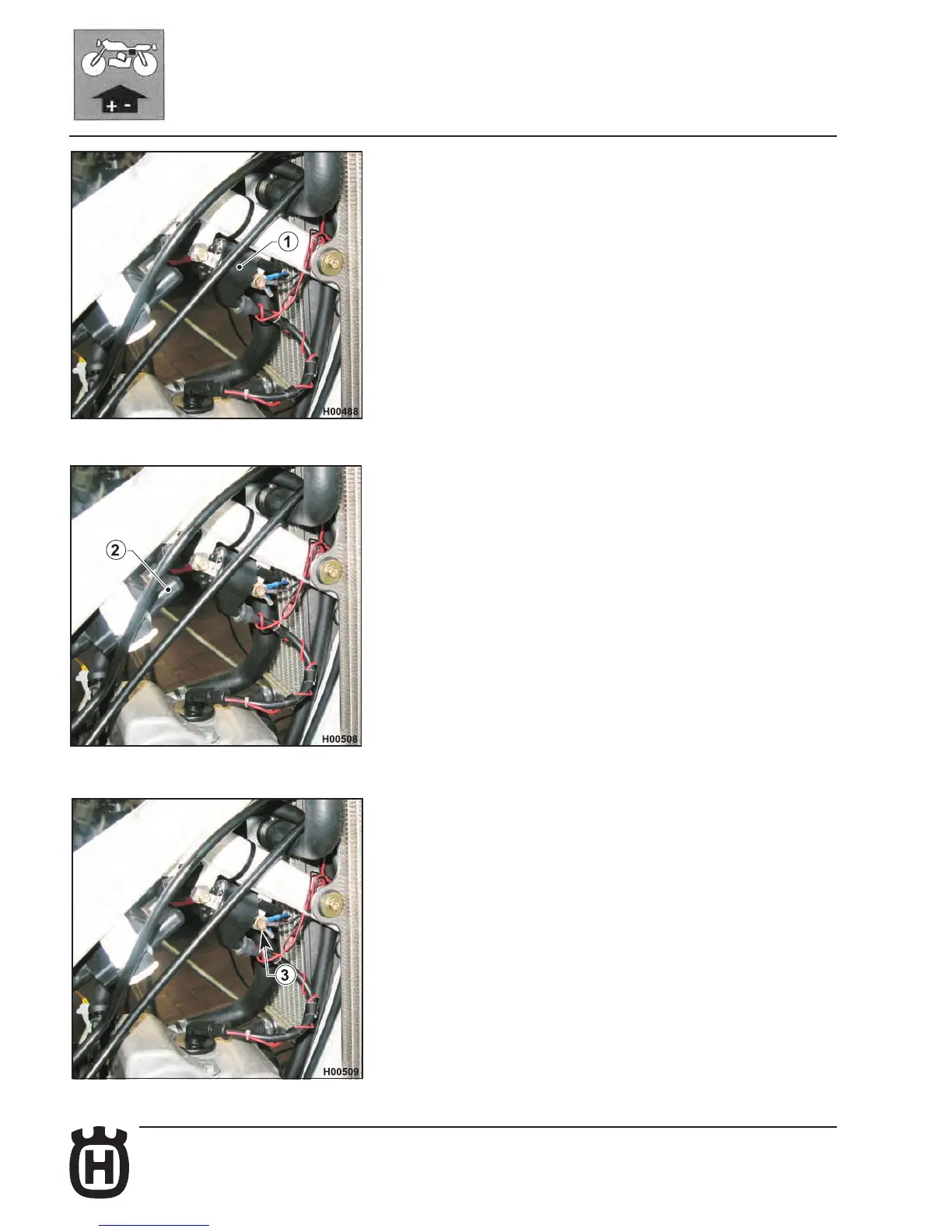

Cable routing and electrical parts installation instructions (TC)
• HT coil position (1) (TC)
Connect the HT coil as shown in the gure.
• Fuel injection control unit position (2) (TC)
Electronic control unit installed with the at side down.
• Securing engine stop button ground cable to chassis (TC)
The ground cable of the engine stop button is secured to the coil screw (3).
