Husqvarna TE 250 2010 Repair Manual

M.47
H00939
14
13
12
17
15
16
H00940
18
Part. N. 8000 H1489 (10-2009)
ELECTRICAL SYSTEM

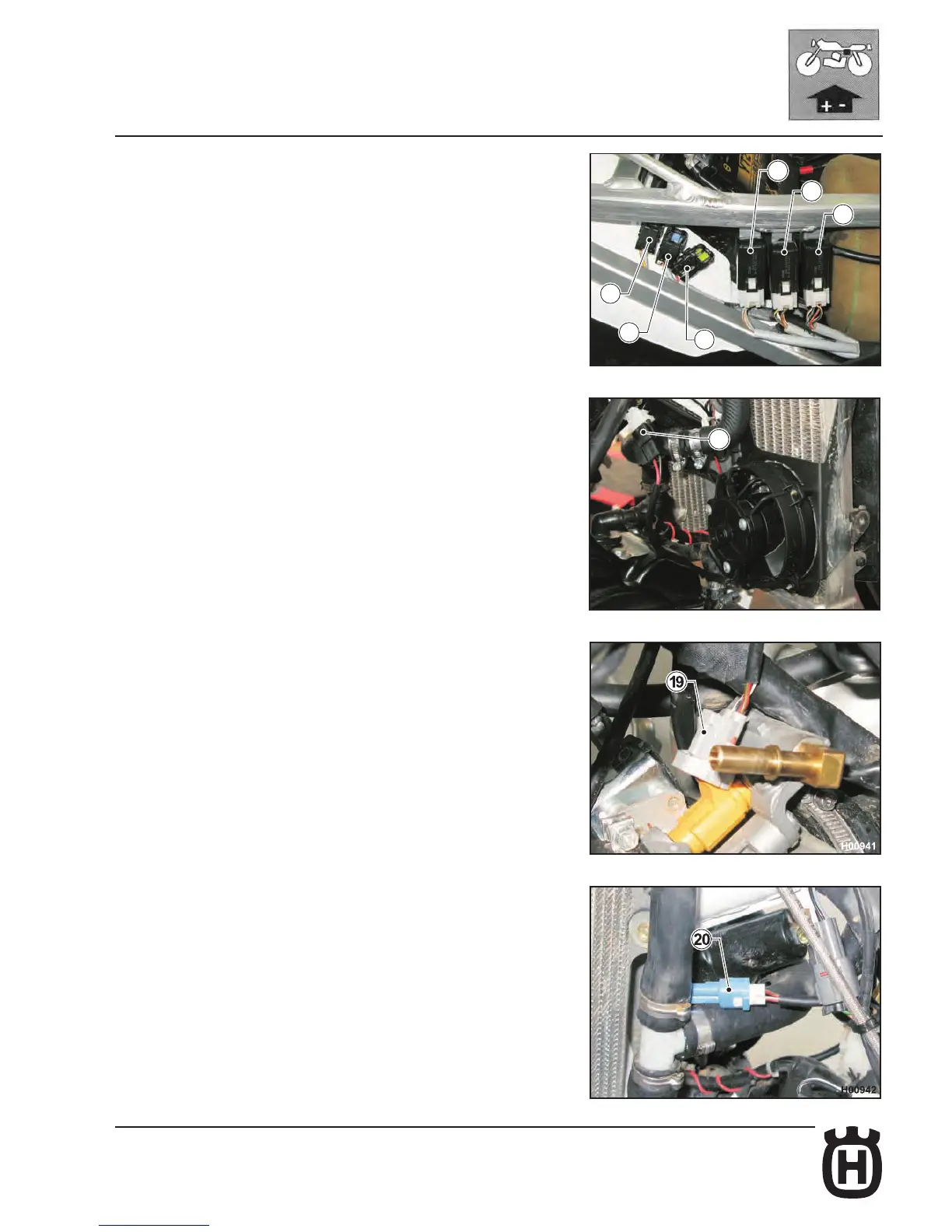

• Connection of relays and fuses (TE - TXC)
RELAYS
Connect the cable marked “POW” to relay (12)
Connect the cable marked “FAN” to relay (13)
Connect the cable marked “DC” to relay (14) (TE only)
FUSES
Connect the cable marked “POW” to fuse (15)
Connect the cable marked “MAN” to fuse (16)
Connect the cable marked “FAN” (TXC) to fuse (17)
Connect the cable marked “DC+FAN” (TE) to fuse (17)
• Electric fan connection (TE - TXC)
Connect the electric fan connector (18).
• Injector connection (TE - TXC)
Connect the connector (19) to the throttle body.
• Ignition coil connection (TE - TXC)
Connect the ignition coil connector (20) as shown.
