ENGINE REASSEMBLY

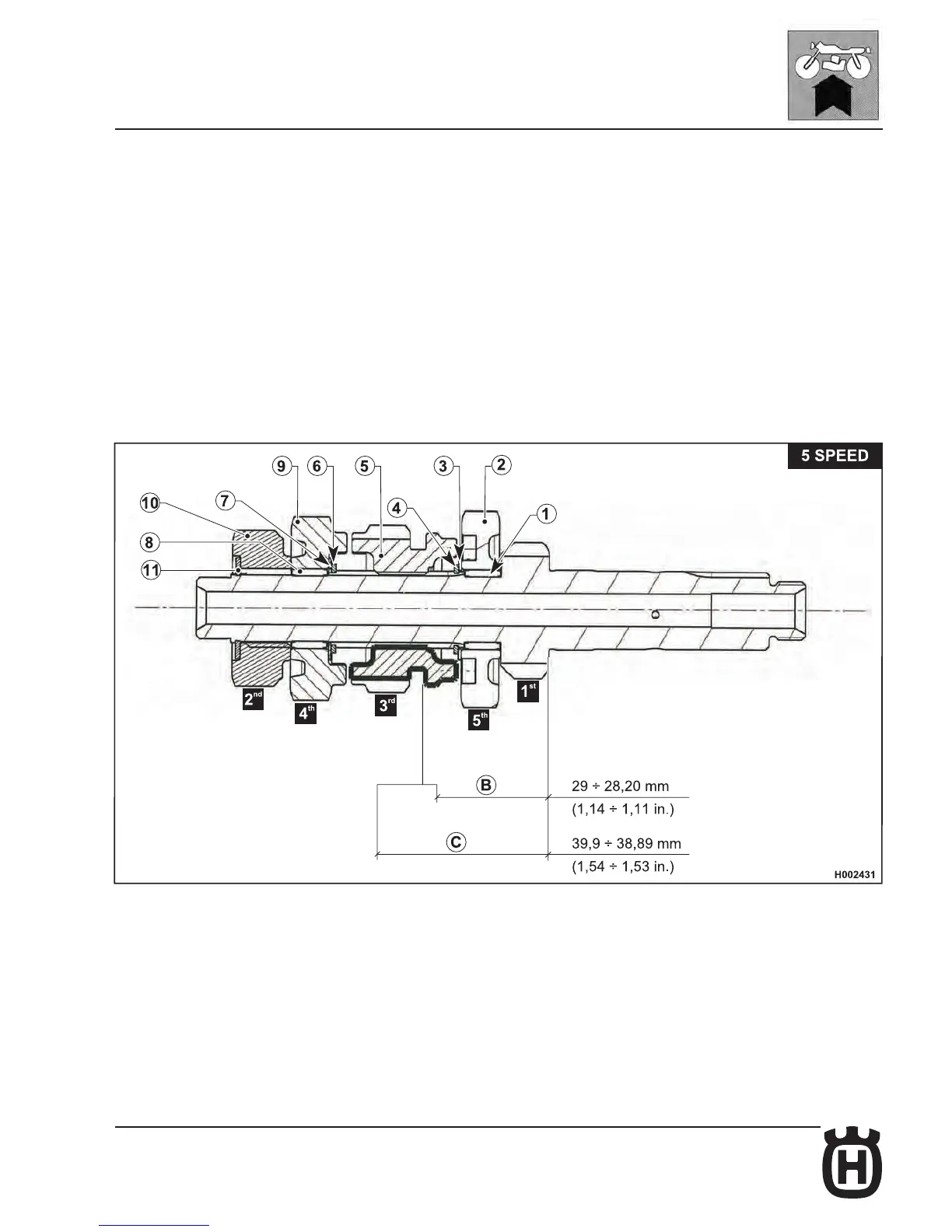

Input shaft (5 SPEED)
Fit roller cage (1) and 5th gear (2) on the bushing and then install the washer
(3) and the retaining ring (4). The washer must be placed between gear and
retaining ring. Fit 3rd gear (5), retaining ring (6) and washer (7).
Fit the roller cage (8).
Fit 4th gear (9).
Fit 2nd gear (10).
Fit the circlip (11).
B: with 5th gear engaged
C: with 4th gear engaged
D: lubricate with MOLYKOTE G-n plus
