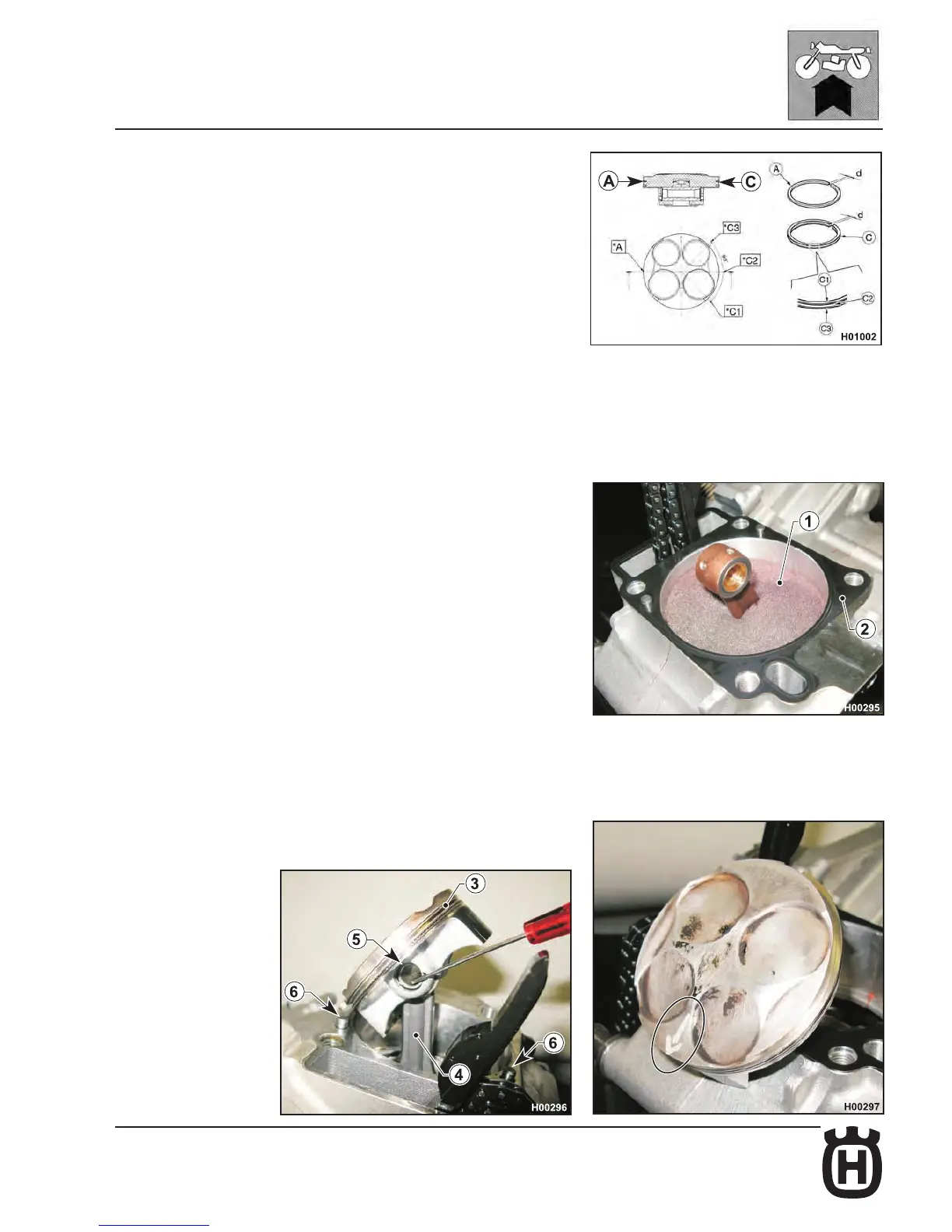

Piston ring installation
Fit the piston rings as shown in the diagram. If the piston ring is marked on one
side, that side must be facing up.
A= Compression ring
C= Oil control ring
*C1= Top oil rail end gap position
*C1= Oil rail spacer end gap position
*C1= Bottom oil rail end gap position
Piston and cylinder installation
Remove the rubber protection (1).
Install a new cylinder foot gasket (2).
Assemble piston (3) to connecting rod (4) (lubricate with engine oil) and t the
piston pin retaining rings (5).
Make sure the arrow mark on the piston is pointing to the front end.
Make sure that the locating pins (6) are in place.
