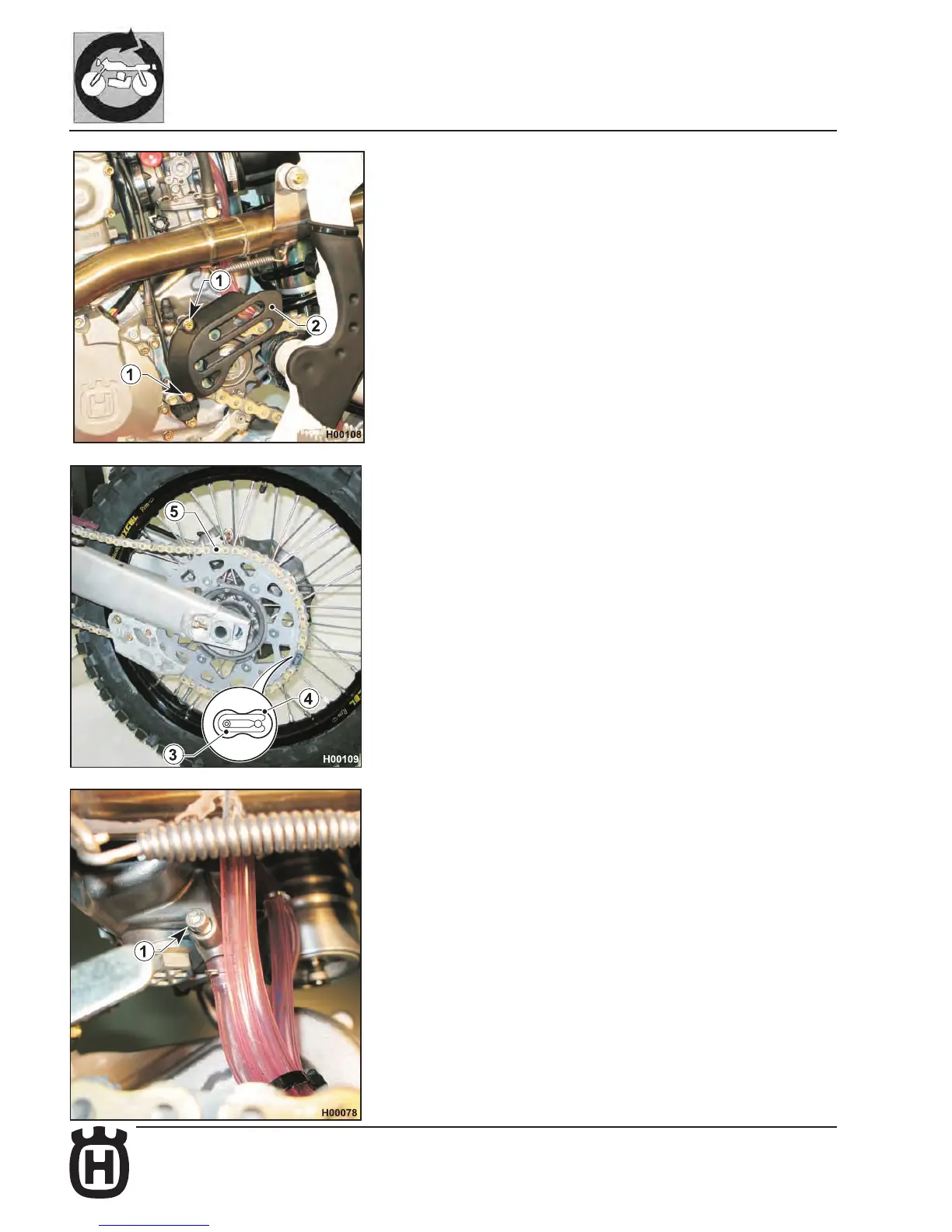

Secondary drive chain removal
The following procedure applies to both O-ring chains and chains without O-
rings:
- Remove: screws (1), sprocket guard (2), clip (3), master link (4) and chain
(5).
Engine removal
- Remove the saddle as described in the relevant paragraph.
- Remove the side panels as described in the relevant paragraph.
- Remove the fuel tank as described in the relevant paragraph.
- Remove the exhaust system as described in the relevant paragraph.
- Slacken the drain screw (1) and drain fuel into a vessel (TC).
