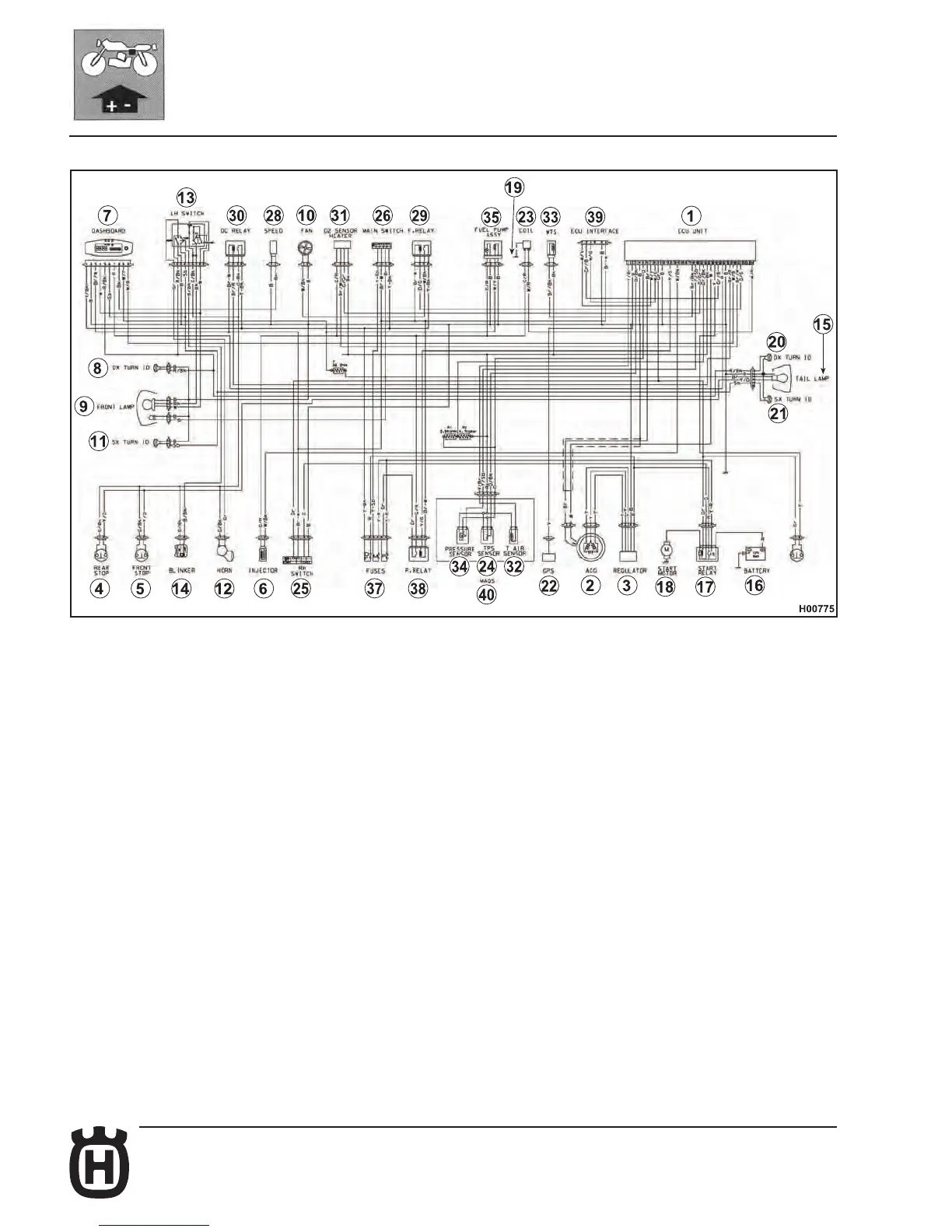

Wiring diagram (TE)
Key to wiring diagram
1. Electronic control unit
2. Alternator
3. Voltage regulator
4. Rear stop light switch
5. Front stop light switch
6. Injector
7. Dashboard
8. Front R.H. turning indicator
9. Headlamp
10. Cooling fan
11. Front L.H. turning indicator
12. Horn
13. L.H. switch
14. Turning indicators asher
15. Tail light
16. Battery
17. Solenoid starter
18. Starter motor
19. Spark plug
20. Rear R.H. turning indicator
21. Rear L.H. turning indicator
22. Gear sensor
23. HT coil
24. Throttle position sensor (40)
25. R.H. switch
26. Ignition switch
28. Speed sensor
29. Solenoid valve relay
30. DC relay
31. Lambda sensor
32. Air temperature sensor (40)
33. Coolant temperature sensor
34. Pressure sensor (40)
35. Fuel pump
37. Fuses
38. Power relay
39. Control unit interface
40. M.A.Q.S. (34+24+32)
Colour coding key
B
................... Blue
B/Bk .............. Blue/Black
Bk ................. Black
Br .................. Brown
Br/Bk ............. Brown/Black
Br/R .............. Brown/Red
Br/W .............. Brown/White
G ................... Green
G/Bk.............. Green/Black
G/Gr .............. Green/Grey
G/R ............... Green/Red
Gr
.................. Grey
Gr/B
.............. Grey/Blue
Gr/Bk ............ Grey/Black
O ................... Orange
O/Bk.............. Orange/Black
O/G
............... Orange/Green
Pk
................. Pink
R ................... Red
R/Bk .............. Red/Black
Sb
................. Sky blue
V ................... Violet
W .................. White
W/B ............... White/Blue
W/Bk ............. White/Black
W/G .............. White/Green
W/R ............... White/Red
W/V ............... White/Violet
W/Y ............... White/Yellow
Y ................... Yellow
Y/Bk .............. Yellow/Black
Y/Br............... Yellow/Brown
Y/G ............... Yellow/Green
Y/O ............... Yellow/Orange
Y/Sb .............. Yellow/Sky blue
Y/R................ Yellow/Red
