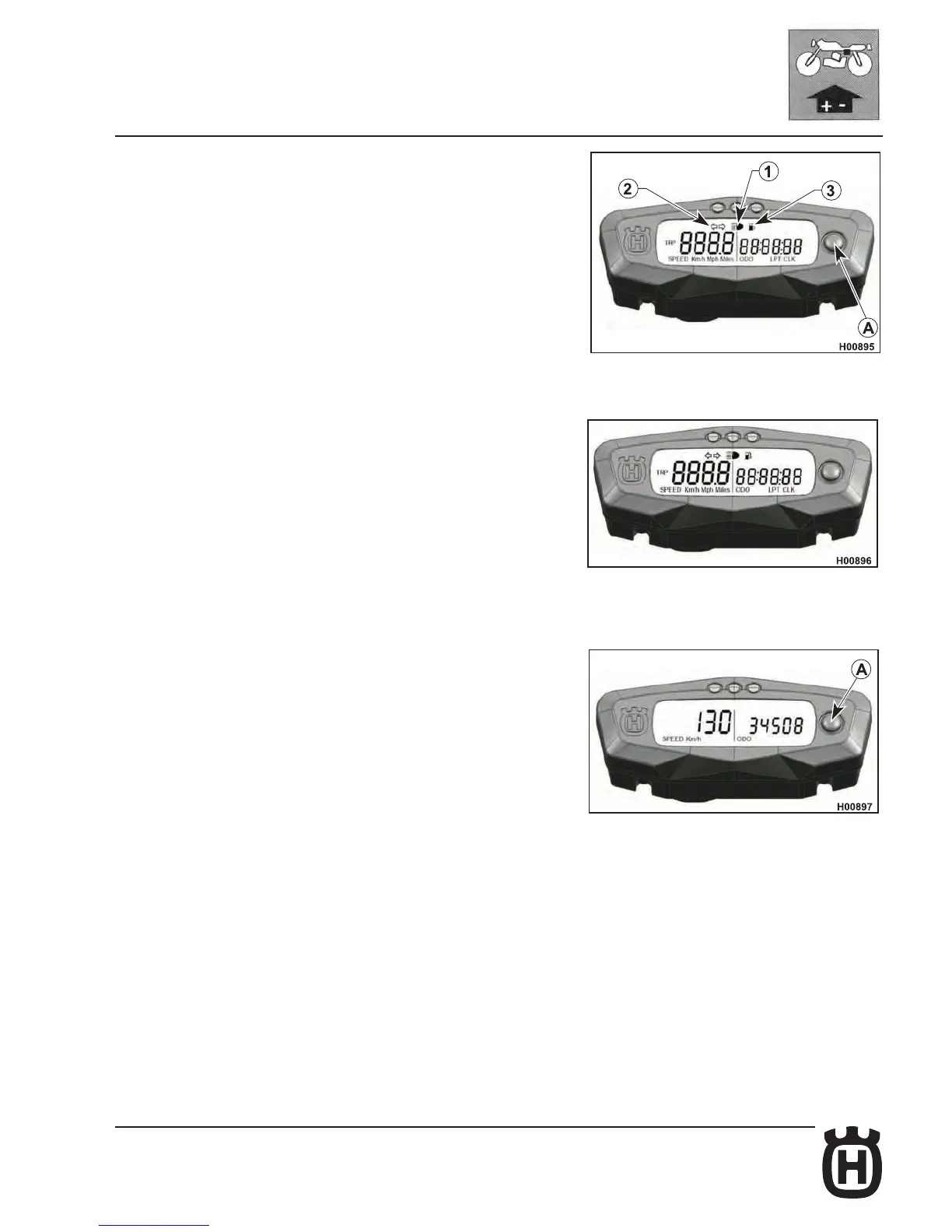

DIGITAL DASHBOARD, WARNING LIGHTS (TE)
The motorcycle is tted with a digital dashboard on which 3 warning lights are
also available for: high beam, turning indicators and fuel reserve.
1- BLUE warning light “High beam”
2- GREEN warning light “Turning indicators”
3- ORANGE warning light “Fuel reserve” (2.3 l)
When the ignition key is turned to the IGNITION position, the dashboard display
lights up (amber colour).
NOTE:
- At every connection with the battery, the dashboard shows the version of the
test SW for the rst 2 seconds; after the check routine, the dashboard shows
the last planned function.
- When the engine is turned off, the dashboard does not show any functions.
- To select dashboard functions and reset functions, use the SCROLL button
(A)
The functions available, in the sequence, are as follows:
1- SPEED / ODO
2- SPEED / CLOCK
3- SPEED / TRIP
4- SPEED / LAP TIMER
5- SPEED / RPM (engine r.p.m. numerical value)
1- SPEED / ODO
IMPORTANT: In the event of a FUEL INJECTION SYSTEM MALFUNCTION,
the word FAIL appears on the right side of the dashboard display (see page 14).
When this is the case, contact your HUSQVARNA dealer.
1- SPEED (Km/h or mph) / ODO (gure 1)
- SPEED: vehicle speed - maximum value: 299 Km/h or 299 mph;
- ODO: odometer - maximum value: 99999 Km.
To change unit from kilometres to miles or miles to kilometres, proceed as fol-
lows:
1) set to gure 1, turn the key to OFF and push SCROLL (A);
2) place the ignition key in the IGNITION position and hold down the SCROLL
button (A) until the word “Km/h” is displayed;
3) the display will now alternate between “Km/h” and “Mph Miles”, push the
SCROLL button (A) again while the desired unit is displayed.
