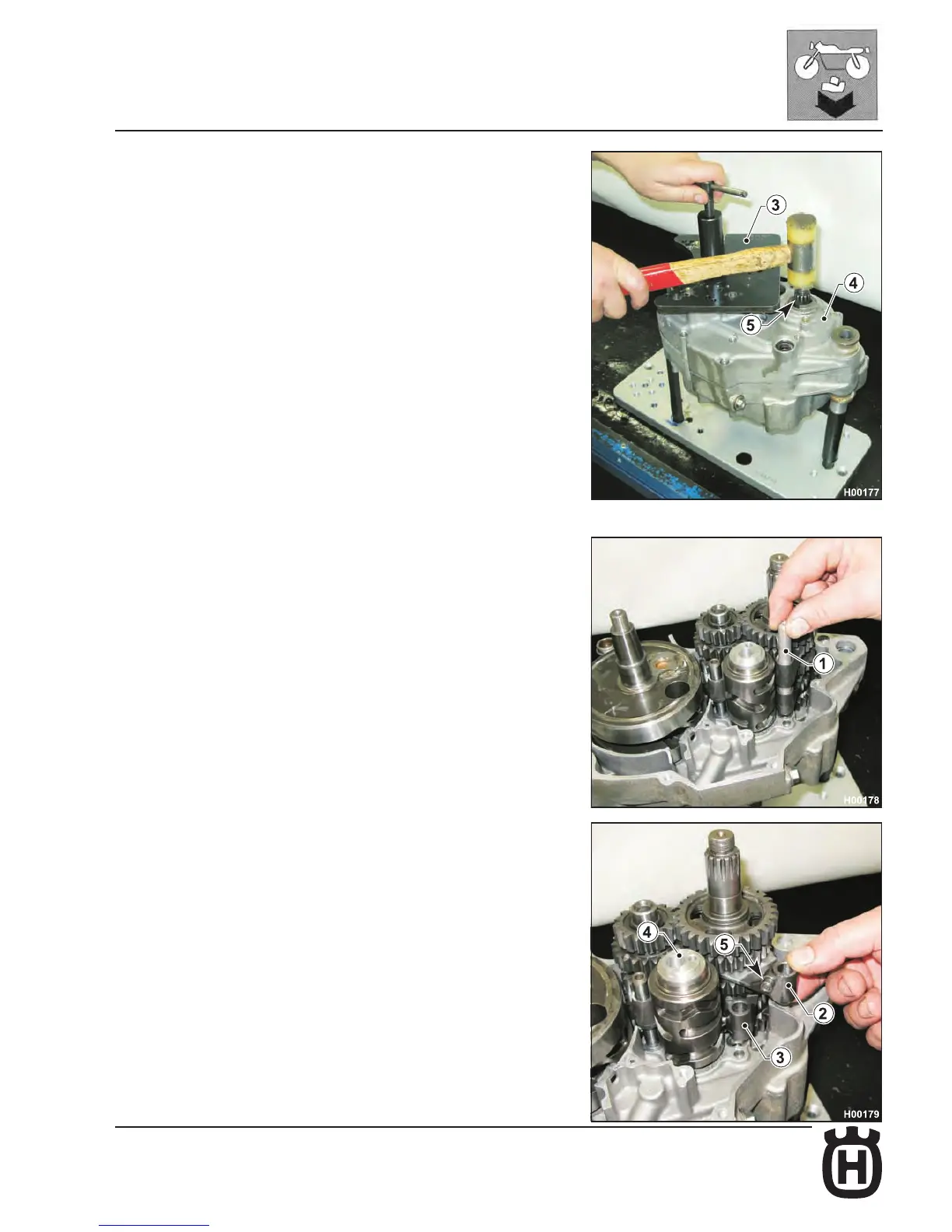

ENGINE DISASSEMBLY

- Install the crankcase puller (3) (part no. 8000 A7015) using the ywheel cover

holes and remove the left crankcase half (4).

- Tap the output shaft (5) with a rubber hammer at intervals during removal to

keep the crankcase half from getting stuck.

Gearbox disassembly

- Remove the shaft (1) of the output shaft shifter forks.

- Release the shifter forks (2) and (3) from the drum (4) and remove the forks

making sure to collect the drive bushings (5). Remove the drum (4).
