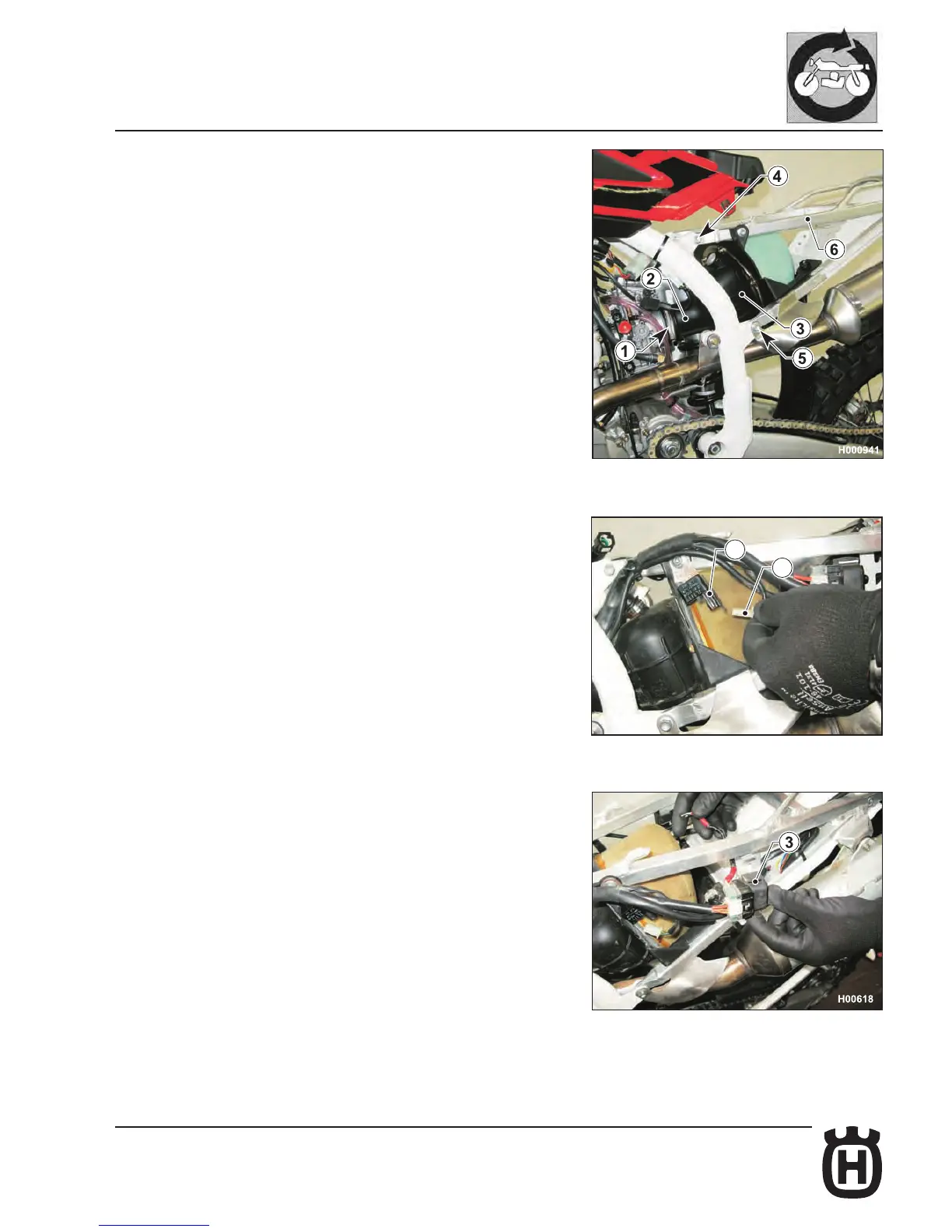

Removing the rear chassis complete with mudguard and air box (TC)
- Remove the saddle as described in the relevant paragraph.
- Remove the side panels as described in the relevant paragraph.
- Lift the tank at the rear end.
- Remove the exhaust silencer as described in the relevant paragraph.
- Slacken the clamp (1) that secures the rubber coupling (2) of the air box (3)
at the carburettor end.
- Removetheupperxing(4)andlowerxings(5)onbothsidesoftherear
chassis using a 10 mm ring wrench.
- Pull the rear chassis (6) rearwards together with mudguard and air box, and
detach it from the main chassis.
Removing the rear chassis complete with mudguard and air box
(TE – TXC)
- Remove the following parts in the order given: saddle, side panels, fuel tank,
silencer and battery (see relevant paragraphs for instructions).
- Shear the plastic clips securing wiring to rear chassis.
- Disconnect the connector (1) of the turning indicator relay (2) (TE).
- Remove the solenoid starter (3) from its mount.
