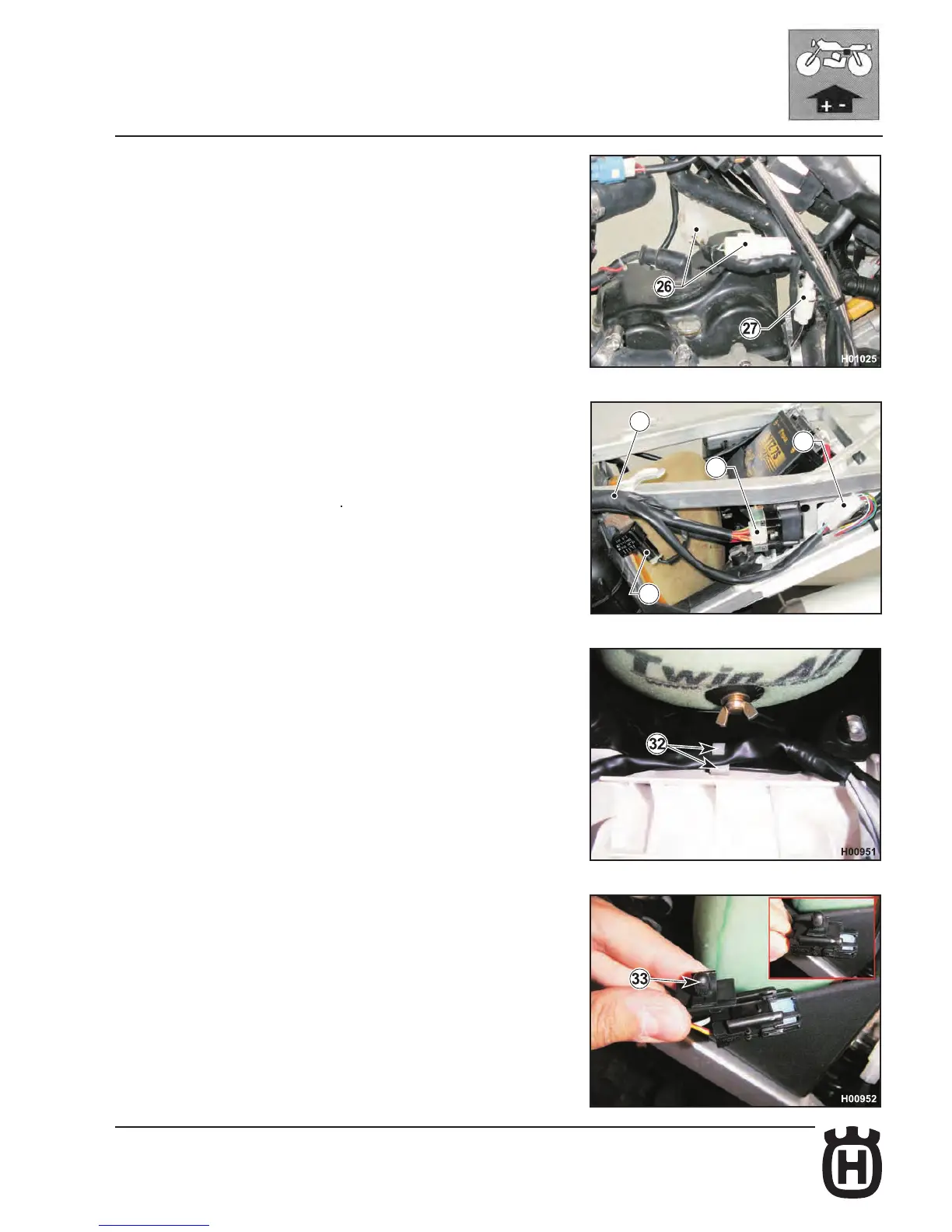

• Ignition and gear sensor cable connection
Connect the ignition (26) and gear sensor (27) connectors as shown.
• Routing of rear chassis cables, tail light connection, asher contactor.
Route the rear end of the wiring (28) as shown in the gure.
Connect the tail light/turning indicators connector (29) (TE).
- Connect the connector (30) to the asher (TE).
- Connect the connector (31) to the solenoid starter.
• Air box cable routing
Route the wiring harness as shown. Secure it with the suitable clip (32).
• Clip installation on fuse holders
Install the suitable clips (33) on the three fuse holders.
