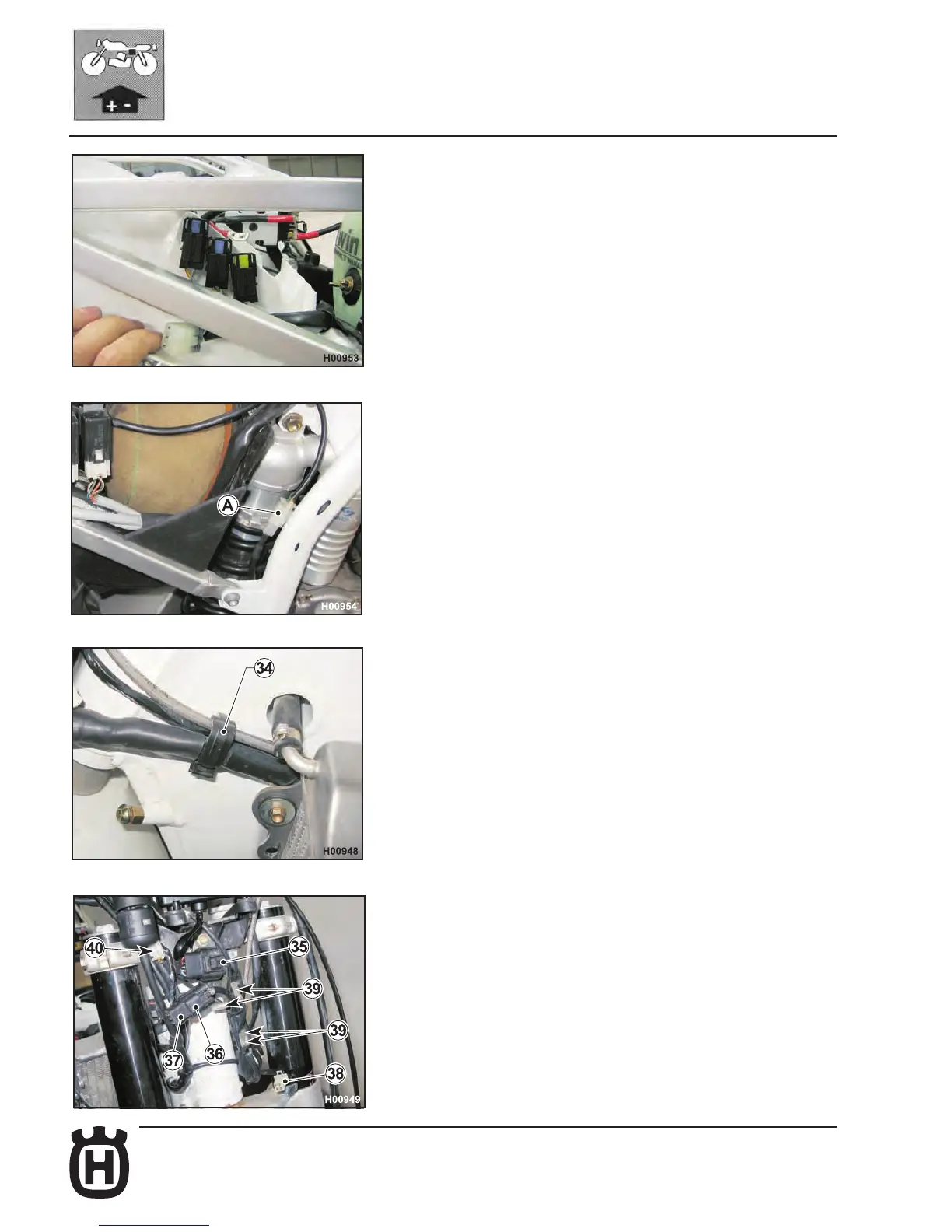

• Clip installation on fuse holders
Secure the three fuses to the suitable perforated panel of the rear mudguard.
• Rear stop connection
Connect the wiring connector (A) to the rear STOP sensor.
• Routing of steering head tube wiring
Secure the wiring harness with the suitable clip (34).
• Dashboard bracket connectors (TE)
Secure the dashboard (35) and diagnostic (36) connector using the suitable
clips. Fit the cap (37) to the diagnostic connector (36).
• Headlamp, front turning indicators, STOP connection (TE)
Connect the headlamp unit to the connector (38).
Connect the connectors (39) to the turning indicators.
Connect the connector (40) to the front brake lever.
