M.44 Part. N. 8000 H1489 (10-2009)
ELECTRICAL SYSTEM

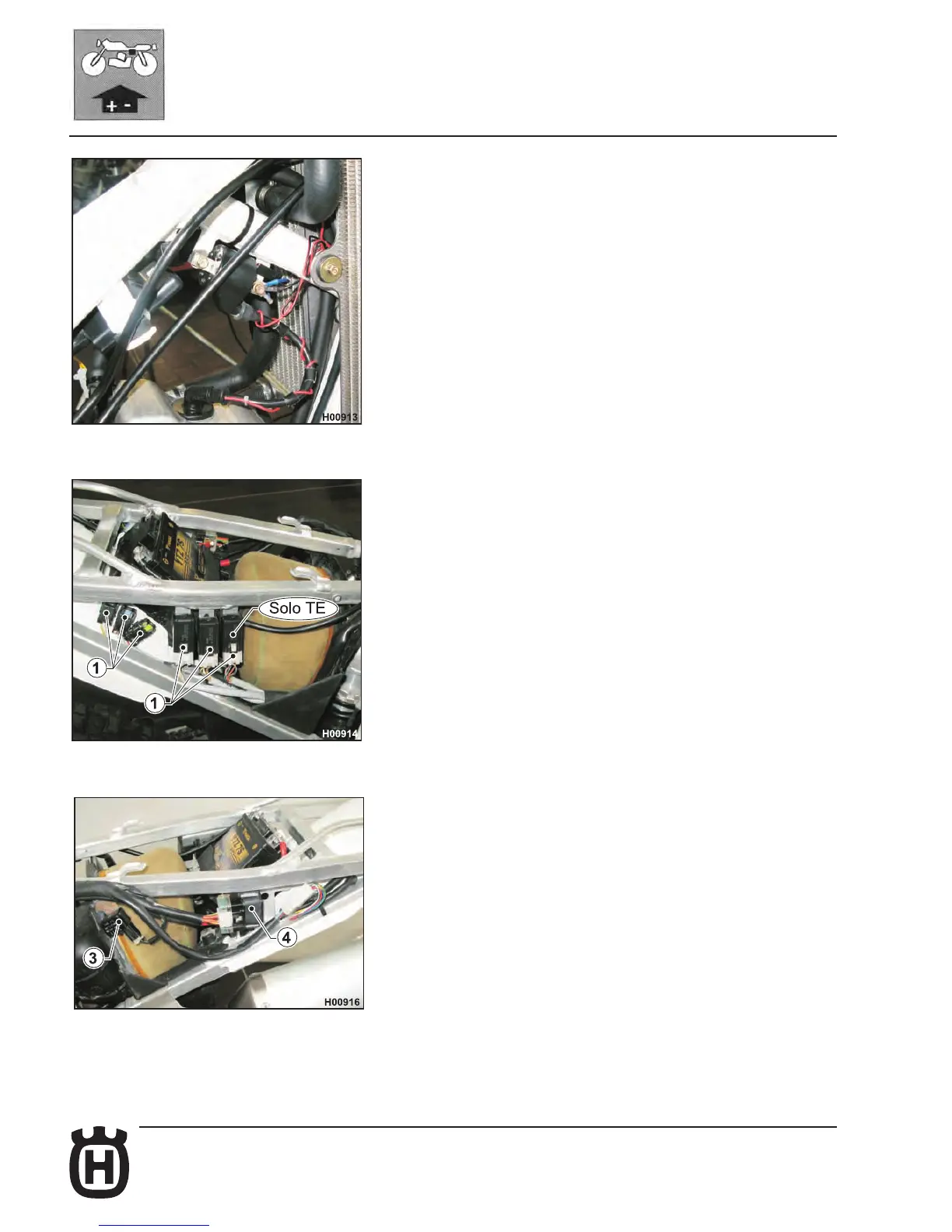

CABLE ROUTING AND ELECTRICAL PARTS INSTALLATION INSTRUC-
TIONS "TE - TXC"
• Coil position TE -TXC
Connect the HT coil as shown in the gure.
• Relay (1) and fuses (2) position (TE - TXC)
On right side of motorcycle.
• Turning indicators asher (3) (TE) and solenoid starter position (TE
- TXC)
On left side of motorcycle.
