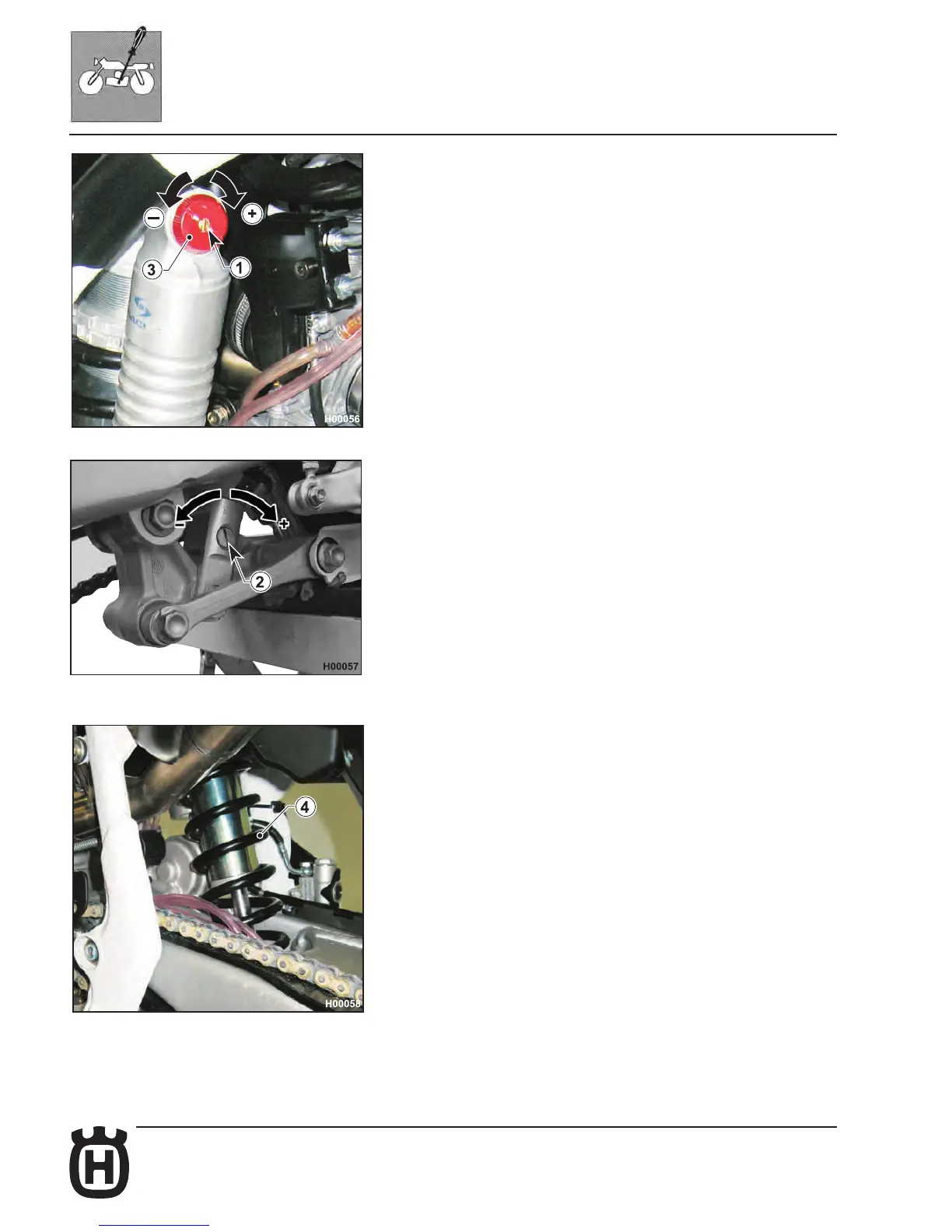

Shock absorber compression and rebound damping adjustment
Adjustment of the compression stroke is independent from the rebound
stroke.
A) COMPRESSION - Standard setting:
1) Low damping speed:
-15 clicks (± 2 clicks)
(adjuster 1)
2) High damping speed:
-15 clicks (± 2 clicks)
(adjuster 3)
To reset the standard setting, turn upper adjusters (1) and (3) clockwise until
reaching fully closed position. Then turn them back the number of clicks speci-
ed above.
In order to obtain a smooth braking efciency, turn the adjusters counter clock-
wise. Vice versa to obtain a harder braking action.
B) REBOUND - Standard setting:
-18 clicks (± 2 clicks)
To reset the standard setting, turn lower adjuster (2) clockwise until reaching
fully closed position. Then turn it back by the mentioned clicks.
In order to obtain a smooth braking action, turn the adjuster counter clockwise.
Vice versa to obtain a harder braking action.
Shock absorber springs (4)
STANDARD
K=5.4 kg/mm (part no. 8000 98504) (TC + TXC)
K=5.2 kg/mm (part no. 8000 98569) (TE)
