M.20
H00776-1
1
2 34
7
8
9
10
11
12
13
14
15
1617
18
19
20
21
22
23
24
25
TXC
Part. N. 8000 H1489 (10-2009)
ELECTRICAL SYSTEM

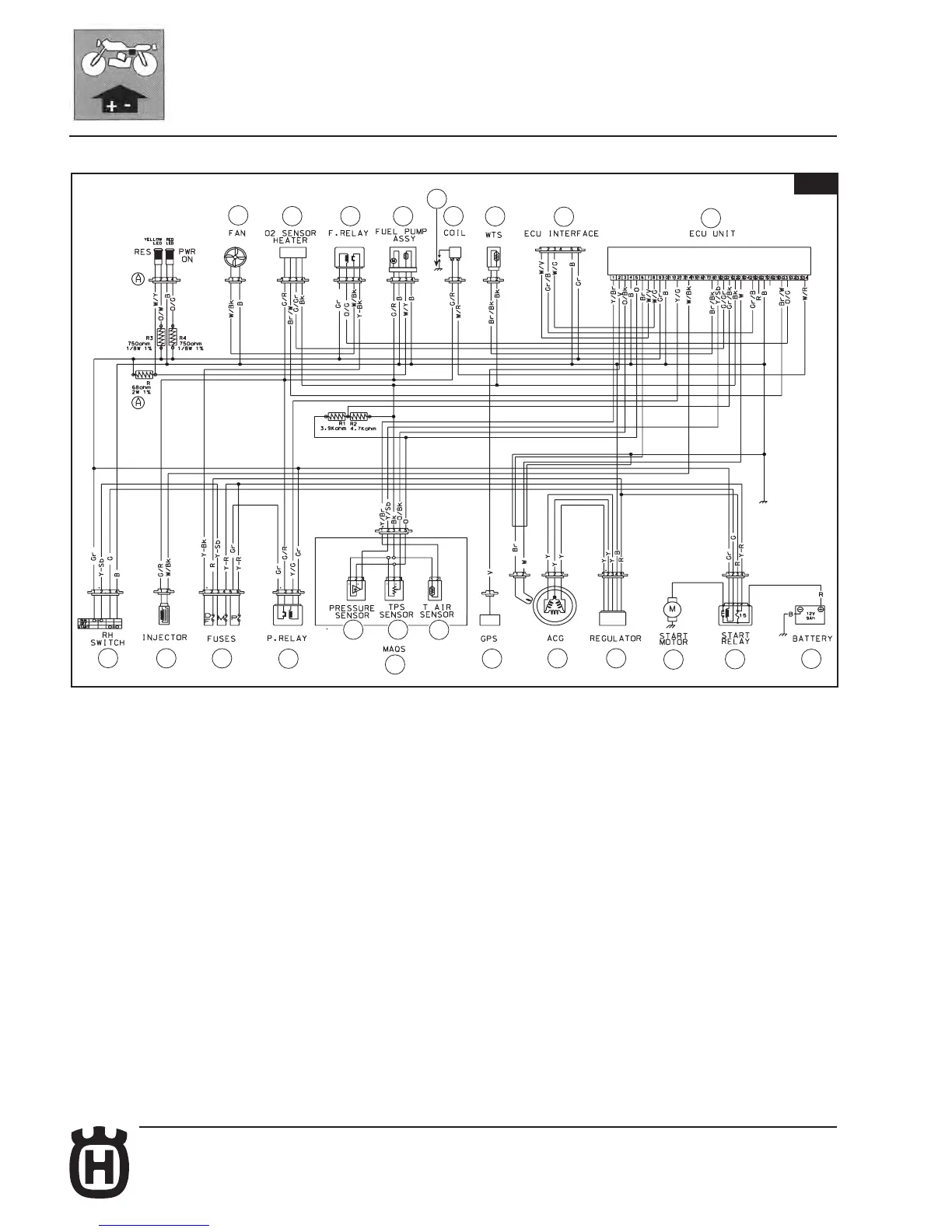

Key to wiring diagram
1. Electronic control unit
2. Alternator
3. Voltage regulator
4. Injector
7. Cooling fan
8. Battery
9. Solenoid starter
10. Starter motor
11. Spark plug
12. Gear sensor
13. HT coil
14. Throttle position sensor (25)
15. R.H. switch
16. Electric fan relay
17. Lambda sensor
18. Air temperature sensor (25)
19. Coolant temperature sensor
20. Pressure sensor (25)
21. Fuel pump
22. Fuses
23. Power relay
24. Control unit interface
25. M.A.Q.S. (14+18+20)
