Chain lubrication
Lubricate the chain following these instructions.
Never use grease to lubricate the chain. Grease helps to accumulate dust
and mud, which act as abrasive and help to rapidly wear out the chain,
the front and rear sprockets.
Disassembling and cleaning
When particularly dirty, remove and clean the chain before lubrication. Proceed
as follows:

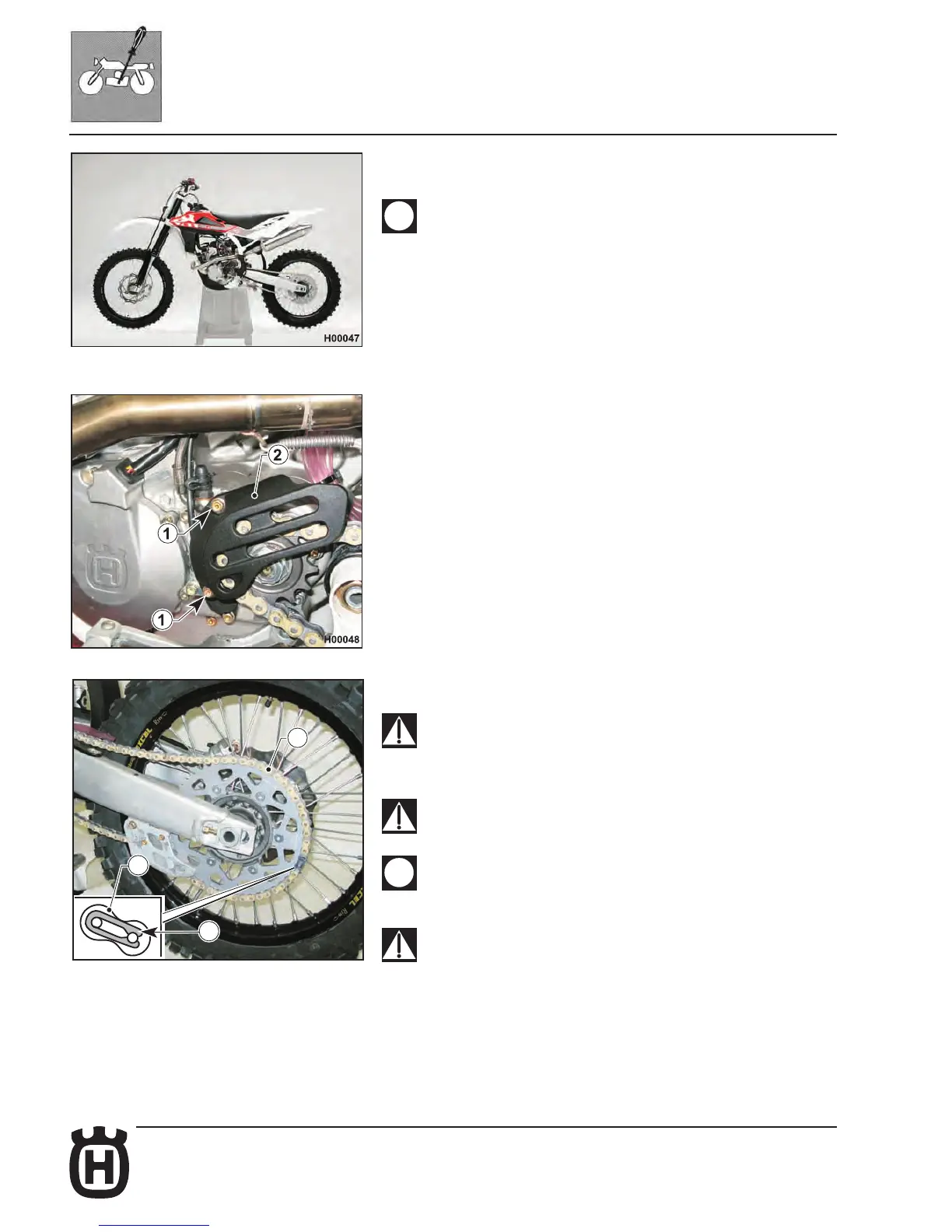

- Set a stand or a block under the engine and see that the rear wheel is lifted
from the ground.
- Remove: screws (1), sprocket guard (2), clip (3), master link (4) and chain
(5). To reassemble, reverse the above procedure.
Make sure that the chain is neither worn out nor damaged. If the rollers or the
links are damaged, replace the chain by following the instructions given in the
Scheduled Maintenance Chart. Ensure that the sprockets are not damaged.
Wash and clean the chain as described hereunder.
Washing a chain without O-rings
Wash using petroleum or naphtha. If you use fuel or especially trichloroethylene,
dry and lubricate the chain to avoid oxidisation.
Lubricating a chain without O-rings
After drying, dip the chain in Molybdenum Disulphide chain lubricant, if possible,
or in warm high-viscosity engine oil (if warmed up, oil will be more uid).
Lubricating an O-ring chain
Lubricate all metallic and rubber (O-ring) elements using a brush and engine oil
with SAE 80-90 viscosity, inside and outside parts.
Assemble the master link clip (3) by setting the closed side facing the chain
direction of rotation, as shown in the gure.
The master link is the most critical safety part in the drive chain. Even if
the master links are reusable when in good conditions, for safety purposes
we advise using a new master link when reassembling the chain.
Accurately adjust the chain as described on page D.18.
The chain lubricant shall NEVER get in contact with the tyres or the rear
brake disc.
Chain guide roller, chain guide roller, chain guide, chain slider
Check the wear of the above-mentioned elements and replace them when
necessary.
Check the chain guide alignment, and remember that a bent element
can cause chain early wear. In this case, chain might unwrap from the
sprocket.
