Husqvarna TE 250 2010 Repair Manual

M.9Part. N. 8000 H1489 (10-2009)
ELECTRICAL SYSTEM

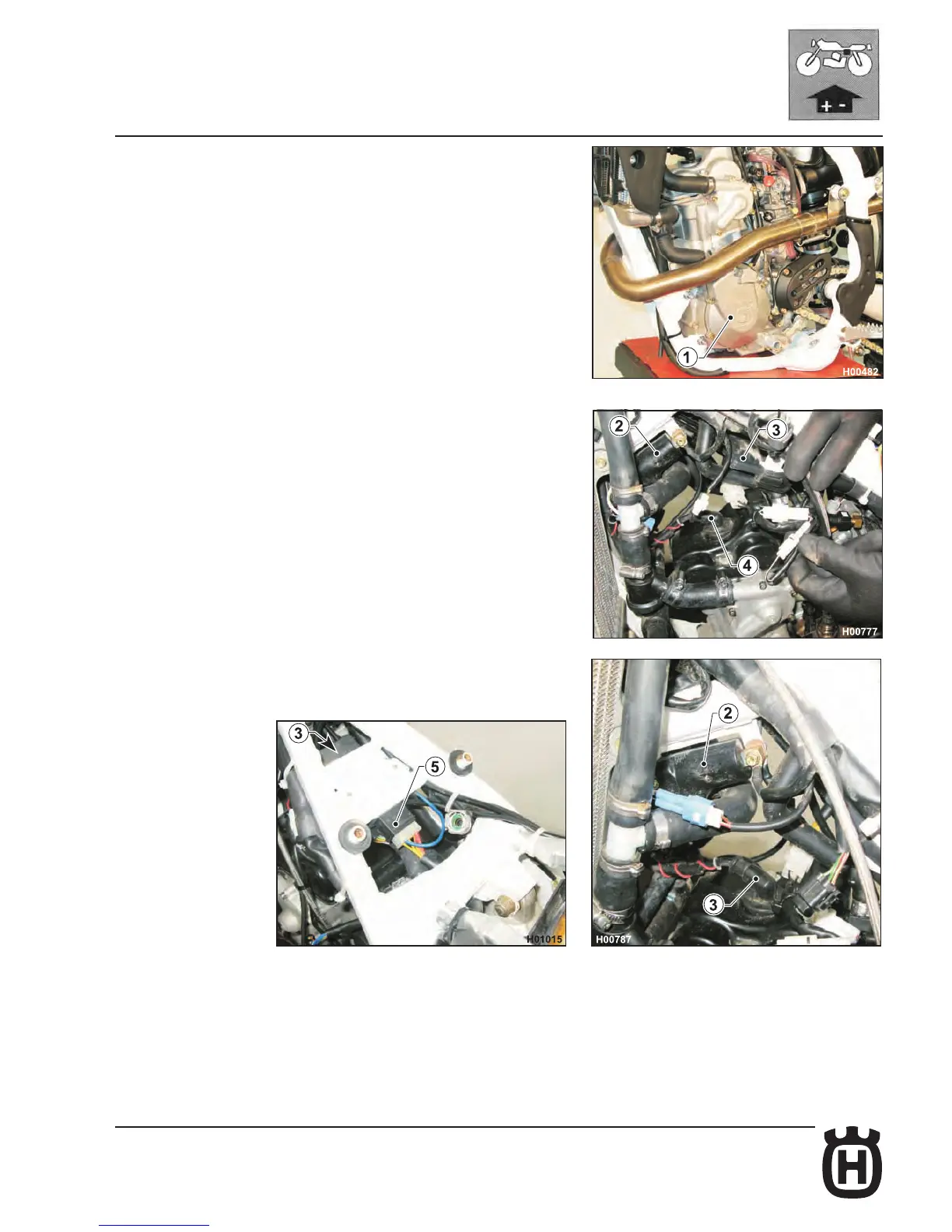

Electrical components location (TE)
The ignition system includes the following elements:
- Generator (1), on the inner side of L.H. crankcase half cover;
- Electronic ignition coil (2) under the fuel tank;
- Electronic control unit (3) under the fuel tank;
- Spark plug (4) on cylinder head;
- Voltage regulator (5) under the fuel tank, over the electronic control unit
(3);
