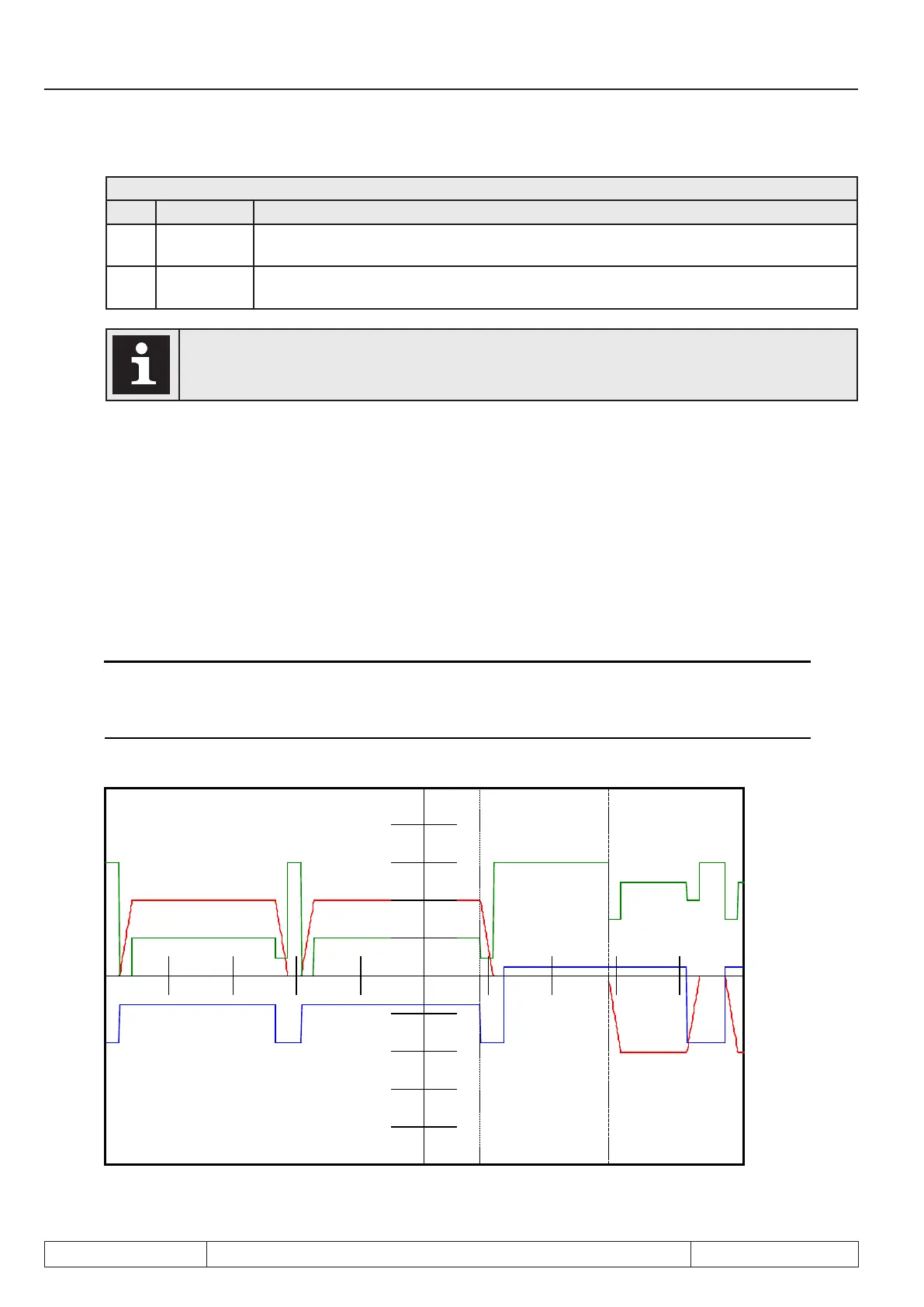

Page 7.4 - 10 COMBIVERT F5-A, -E, -H © KEB, 2012-10
Setpoint, rotation- and ramp setting
Control word Sy.50
Bit Function Description
2 Run / Stop
0 = setpoint rotation stop; 1 = Rotation direction Run
(source of set value direction op.1 = 6, 8, 9 or 10)
3 For / Rev
0 = Setpoint rotation forward; 1 = Rotation direction counter-clockwise
(source of set value direction op.1 = 6, 8, 9 or 10)
If run/stop is to be adjusted via the control word, oP.02 must be set to "0". The terminals F/R may
not be wired (OR-connection of terminal, oP.02 and SY.50).
7.4.4 Acceleration of speed reversal
oP.16 Acceleration direction of rotation
Value range: 0 (off) ... 10.00s; Resolution 0.01s; Default value : 0(off), not set-programmable
The function can be switched off with the value op.16 = 0.
If the function is switched on the new direction of rotation is blocked for the adjusted time at rotation change,
the inverter accelerates and changes if necessary to LS.
The the same direction of rotation is switched off and on, the time is not running.
op.16 is set to 2.00 s in the following example:
COMBIVIS 5 Scope - Knoten 0
COMBIVIS 5 Version 5.6 Registriert für: Karl E. Brinkmann GmbH D-32683 Barntrup
Druckdatum: 29.07.2009 10:13:02
640: F5A-G/V4.30 400Hz
X (ms/Teilung): 1000
CH Parameter Satz Y-Faktor (n/Teilung) Y-Null bei
A ru07 actual value display 0 2,0000 Hz 0,0000 Hz
B ru22 internal input state 0 4: F 8: R
C ru00 inverter state 0 2: ERROR underpotential 64: forw ard acceleration
D Aus
A
B
C
Cursor I:12022ms (29.07.2009 10:07:41)Cursor II:14029ms (29.07.2009 10:07:43)Differenz:2007ms
ru07 actual value display[323] 4,0375 Hz [-9] -0,1125 Hz [-332] -4,1500 Hz
ru22 internal input state[5] ST+F [9] ST+R [4] F
ru00 inverter state[66] forw ard constant [67] reverse acceleration [1] ERROR overpotential
