KEB COMBIVERT F5-H User Manual

Network components
© KEB, 2012-10 COMBIVERT F5-A, -E, -H Page 10.1 - 7
10
10.1.7 CanOpen operator F5 00.F5.060-5010 / 5011
CAN is a Multi-Master-System. This means every node has access to the BUS and can send telegrams. In
order to prevent problems when two nodes simultaneously access the BUS, the CAN-BUS has an arbitration
phase which determines who may continue to send his telegram. When there is a conict in accessing BUS the
user with the lowest telegram number (identier) has priority. This user then can completely send his telegram
without repeating the rst part. All other nodes go into receiving status and stop sending their telegram. Thus it
is determined that lower telegram numbers have automatically priority. The available telegram numbers in the
CAN version 2.0A are limited to 2032 identiers (0...2031).

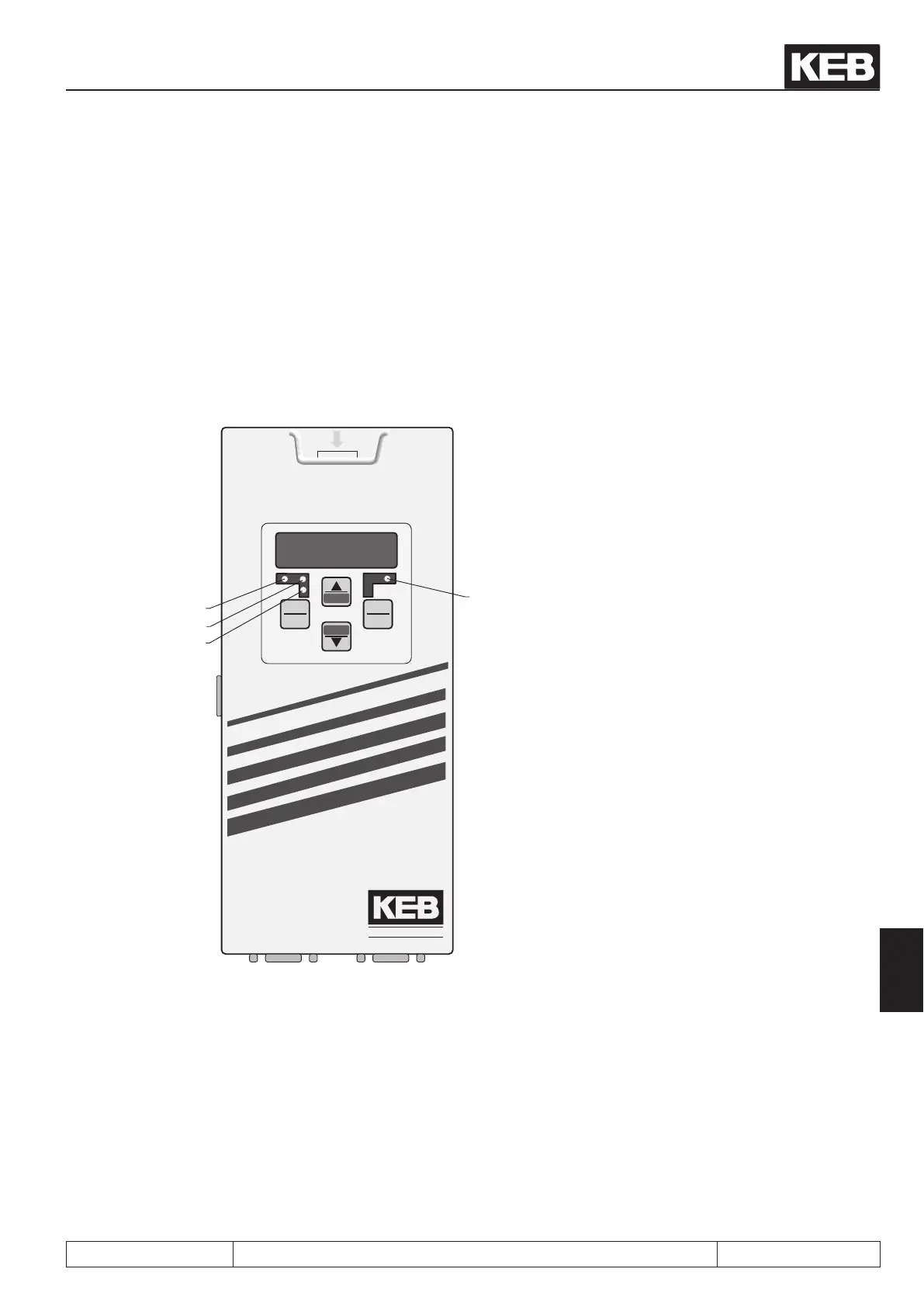

Fig. 11.1.7 CanOpen operator
ANTRIEBSTECHNIK
START
STOP
FUNC.
SPEED
ENTER
F/R
CAN f
CAN m
ANTRIEBSTECHNIK
Diag
E
SDO
PDOUT
PDIN
SDO (green): SDO-communication active
PDOUT (green): PDOUT data are written to
the FI control.
PDIN (green): PDIN data are read by the FI
control.
E (red): on =>
ashing =>
off =>
Inverter ready for operation
Inverter fault
No supply voltage
Diag: Diagnostic interface to the PC
CAN f:
CAN interface (socket-con-
nector)
CAN m: CAN interface
(pin-connector)
