Parameter sets
7.14.8 Locking of parameter sets
Fr.03 Parameter set lock
Parameter sets, that shall not and must not be selected, can be locked with Fr.03. If one of the locked sets is
selected, the adjusted response in Pn.18 is executed (default: set selection error (E.SEt).
Value Locked set Example (set 2 and 5 inhibited)
1 0 -
2 1 -
4 2 4
8 3 -
16 4 -
32 5 32
64 6 -
128 7 -
Sum 36
7.14.9 Set activation/deactivation delay (Fr.05, Fr.06)
With these parameters the time is adjusted,
- which delays the activation of a new set (Fr.05)
- which delays the deactivation of the old set (Fr.06)
The OFF time of the old set and ON time of the new set are added at set changeover.

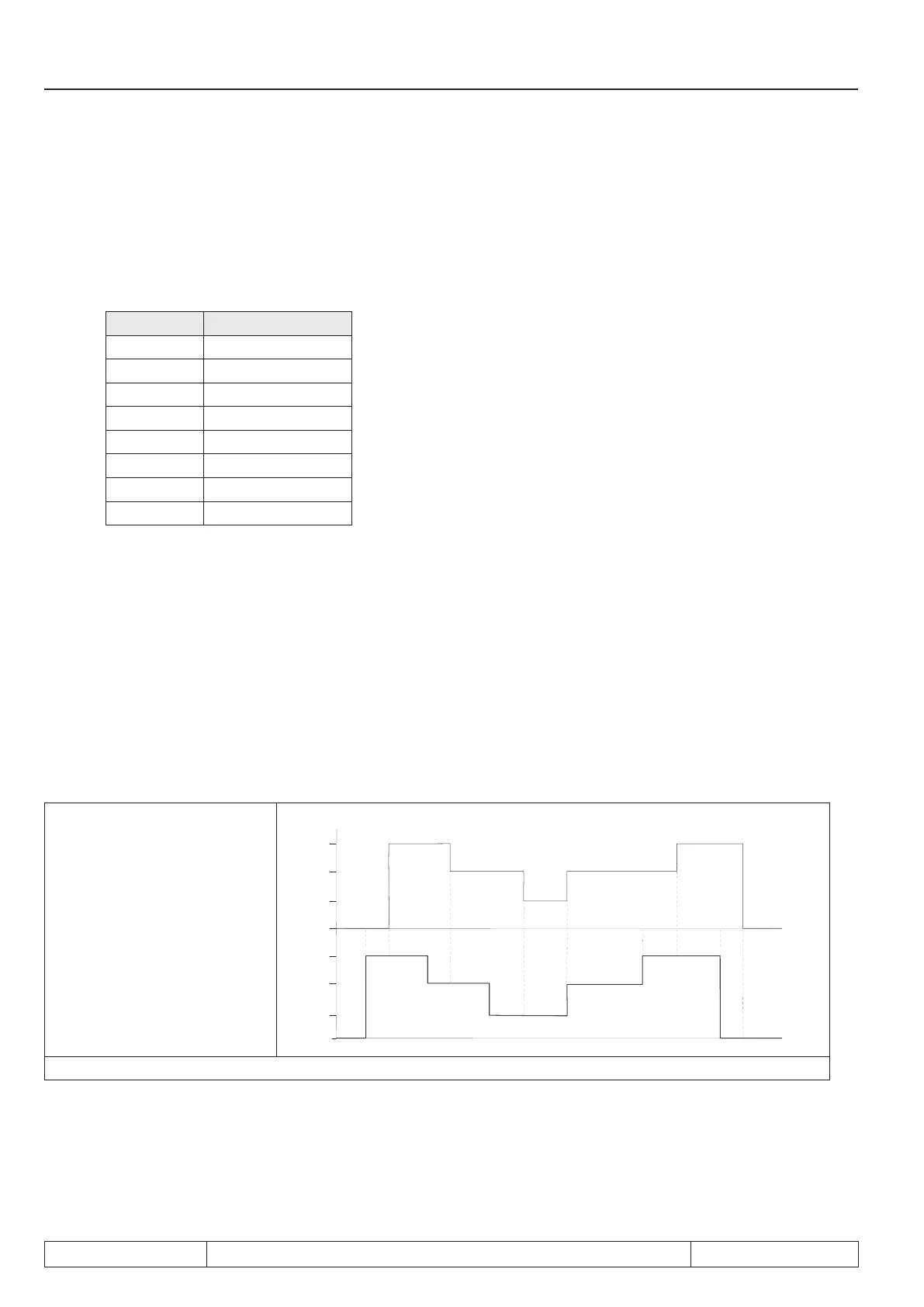

Picture 7.14.9 On and off delay
Current set
Adjusted set
1
2
3
4
5
6
Set 1
Set 3
Set 2
Set 1
Set 3
Set 2
Set 0
Set 0
