KEB COMBIVERT F5-H User Manual

Page 10.1 - 6 COMBIVERT F5-A, -E, -H © KEB, 2012-10
Network components
10.1.6 InterBus operator F5 00.F5.060-4000 / 4001
The InterBus operator F5 is a slip-on operator with interbus 2-wire remote bus connection for KEB COM-
BIVERT F5. The voltage supply occurs via the inverter, for an independent supply it can also be fed in externally
over the control terminal strip of the inverter. Over the PCP channel 0, 1, 2 or 3 interbus register words can
be congured for the process data channel. Parallel to the eld bus operation the operation via the integrated
display/keyboard as well as a further serial interface for diagnosis/parameterization (COMBIVIS) is possible.

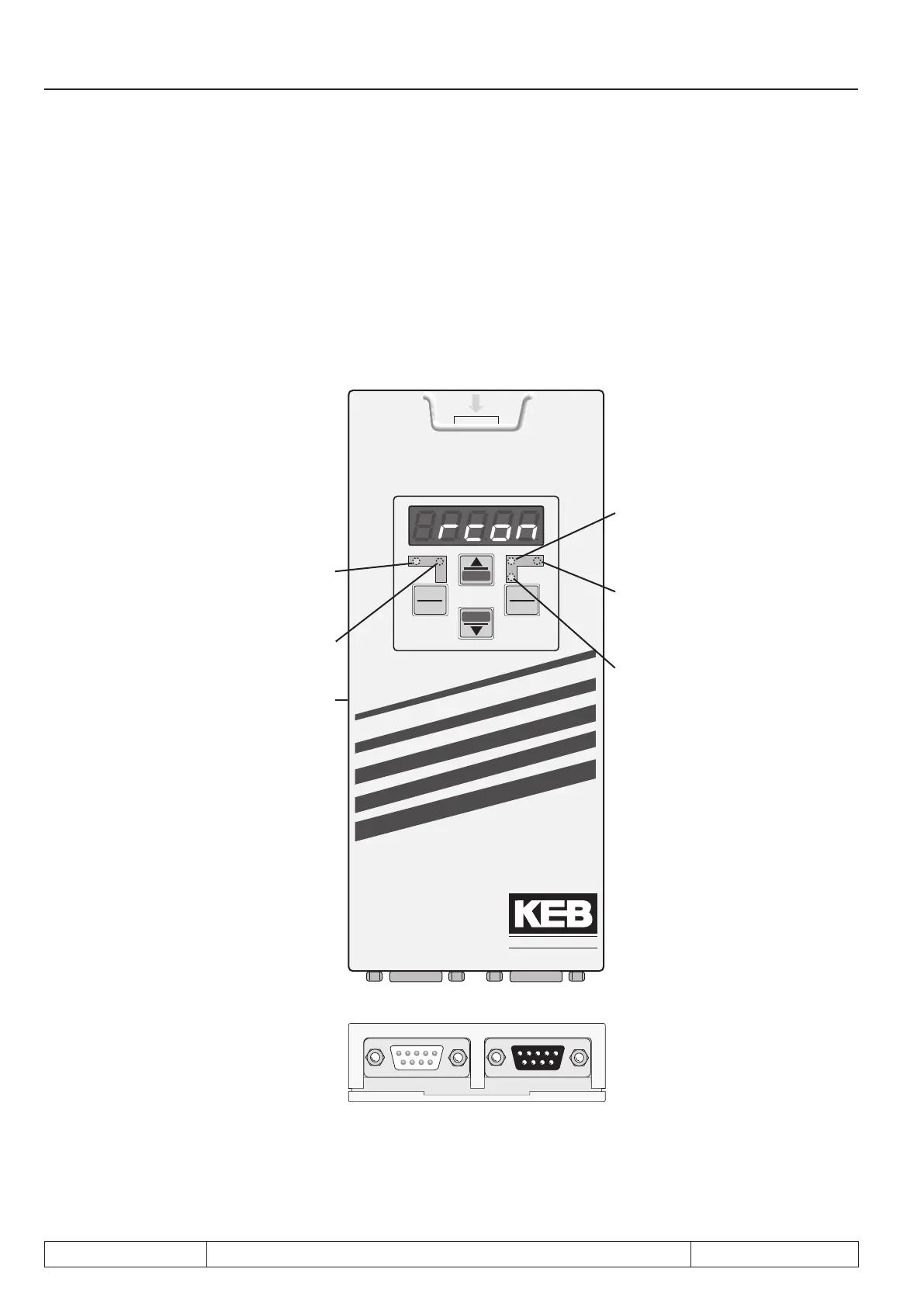

Fig. 11.1.6 InterBus operator
ANTRIEBSTECHNIK
ANTRIEBSTECHNIK
START
FUNC.
SPEED
ENTER
F/R
STOP
BA (green)
On: Interbus runs
Blinking: Interbus was stopped by
the host
Off: Remote bus cable not available
or defective/host not in operation or
defective
E (red)
On: Ready for operation
Blinking: Inverter failure
Off: No supply voltage
RC (green)
On: Remote bus ready for operation
Off: Remote bus cable not available
or defective/host not in operation or
defective
COM (green)
Lights when communication via Inter-
Bus PCP or diagnostic interface
RD (red)
On: the remote bus interface (IB_out)
was turned off by the host
Diag
Diagnostic interface to the PC
The diagnostic interface is connected
to the PC via an adaptor and a HS5P
cable. By way of the PC software COM-
BIVIS one has now normal access to all
inverter parameters. The internal ope-
rator parameters like interbus process
data length and occupation can be read
and adjusted or parameterized through
download. Alternatively a monitoring of
the InterBus PCP as well as the process
data channels can be carried out with
the PC-software HSP5-monitor.
Separately available accessory:
HSP5 cable between PC and adapter
(Part No: 00.F5.0C0-0010)
Adaptor D-Sub9/western
(Part No: 00.F5.0C0-0020)
IB_in IB_out
54
3
2
1
9 876
54
3
2
1
9876
IB_in
Remote bus input
(D-Sub 9 connector)
IB_out
Remote bus output
(D-Sub 9 socket)
