KEB COMBIVERT F5-H User Manual

Page 7.14 - 8 COMBIVERT F5-A, -E, -H © KEB, 2012-10
Parameter sets
7.14.7 Select parameter sets

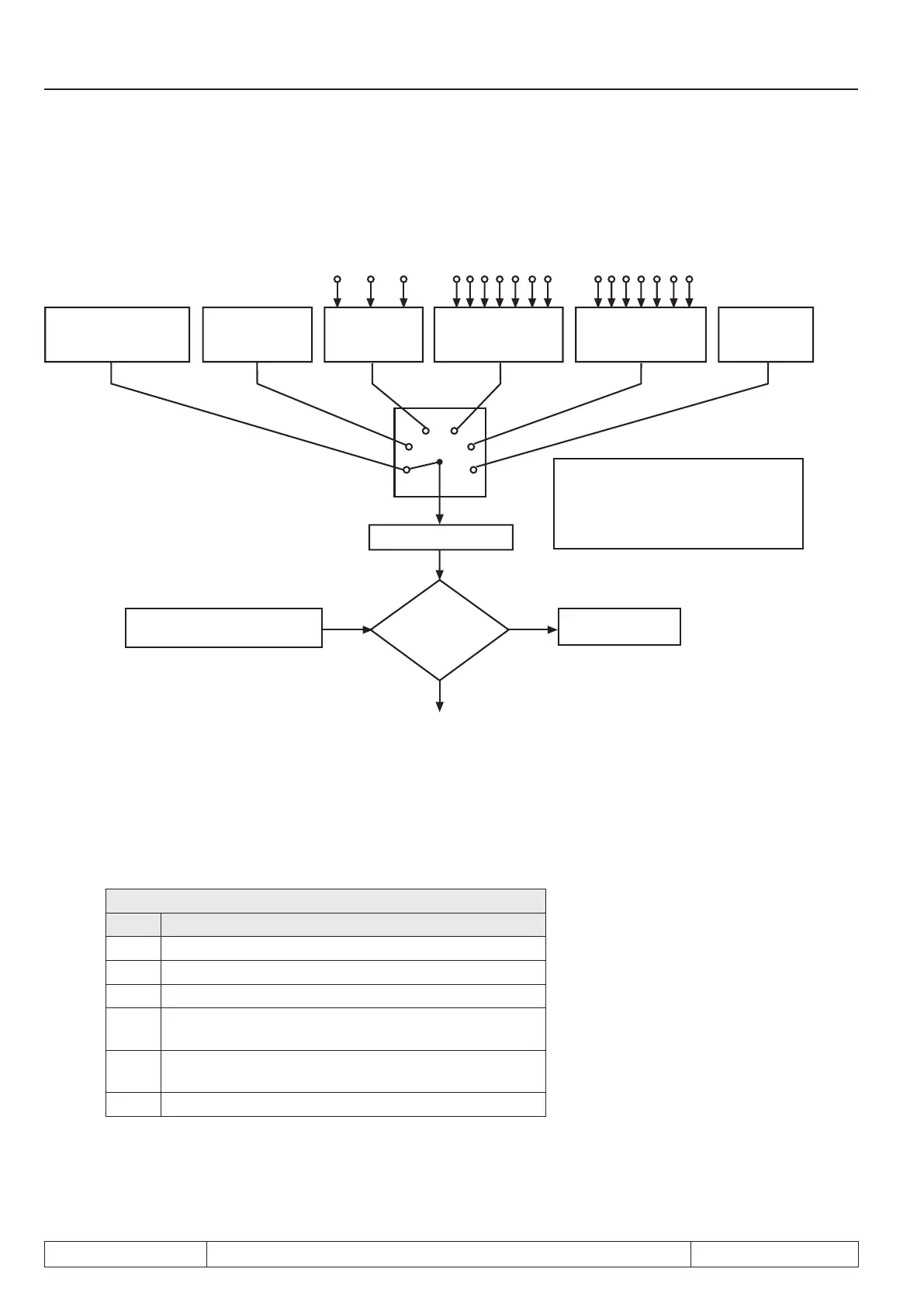

Figure 7.14.7 Principle of the parameter set selection
Fr.2
0
1
2
3
2
0
2
1
2
2
1234567 1234567
4
5
digital
set selection deacti-
vated
set 0 always active
Fr.4 via
keyboard/bus
terminal strip
binary coded
terminal strip
binary coded
ST>RST>...>ID
terminal strip
binary coded
ID>IC>...>ST
SY.50 with
control word
(only bus)
Parameter set 0...7
Fr.3 Parameter set lock
Set 0...7 (Value 0...255)
Is
selected set
locked ?
yes
no
Actual Parameter set
Error message
E.SEt
ATTENTION! The valency at Fr.2
= 2...4 is generally ID > IC > ...>ST.
The sequence above refers to the
priority.
Fr.02 Source parameter set
As shown in Fig. 7.14.7 it is dened with Fr.02 whether the parameter set selection is enabled or disabled via
keyboard/bus (Fr.04), terminal strip or via control word (SY.50). The selection is activated with „Enter".
Fr.02: Parameter set source
Value Function
0 Set selection deactivated; set 0 always active
1 Set selection via keyboard/bus with Fr.4
2 Set selection binary-coded via terminal strip
3 Set selection input-coded via terminal strip
Priority: ST>RST>R>F>I1>I2>I3>I4>IA>IB>IC>ID
4 Set selection input-coded via terminal strip
Priority: ID>IC>IB>IA>I4>I3>I2>I1>R>F>RST>ST
5 Set selection via control word SY.50
Fr.04 Adjustment parameter set
