10.1.5 Probus-DPoperatorF500.F5.060-3000
The PROFIBUS-DP interface module realizes a passive user (Slave). This means that the PROFIBUS-DP
interface module only transmits, if it receives an enquiry for that from the master.
The PROFIBUS-DP protocol denes different operating conditions, that must be executed rst, before the ac-
tual user data can be exchanged. The responsible DP master must rst parameterize and then congure his
slaves. If these two functions are successfully completed, the cyclic exchange of user data begins.

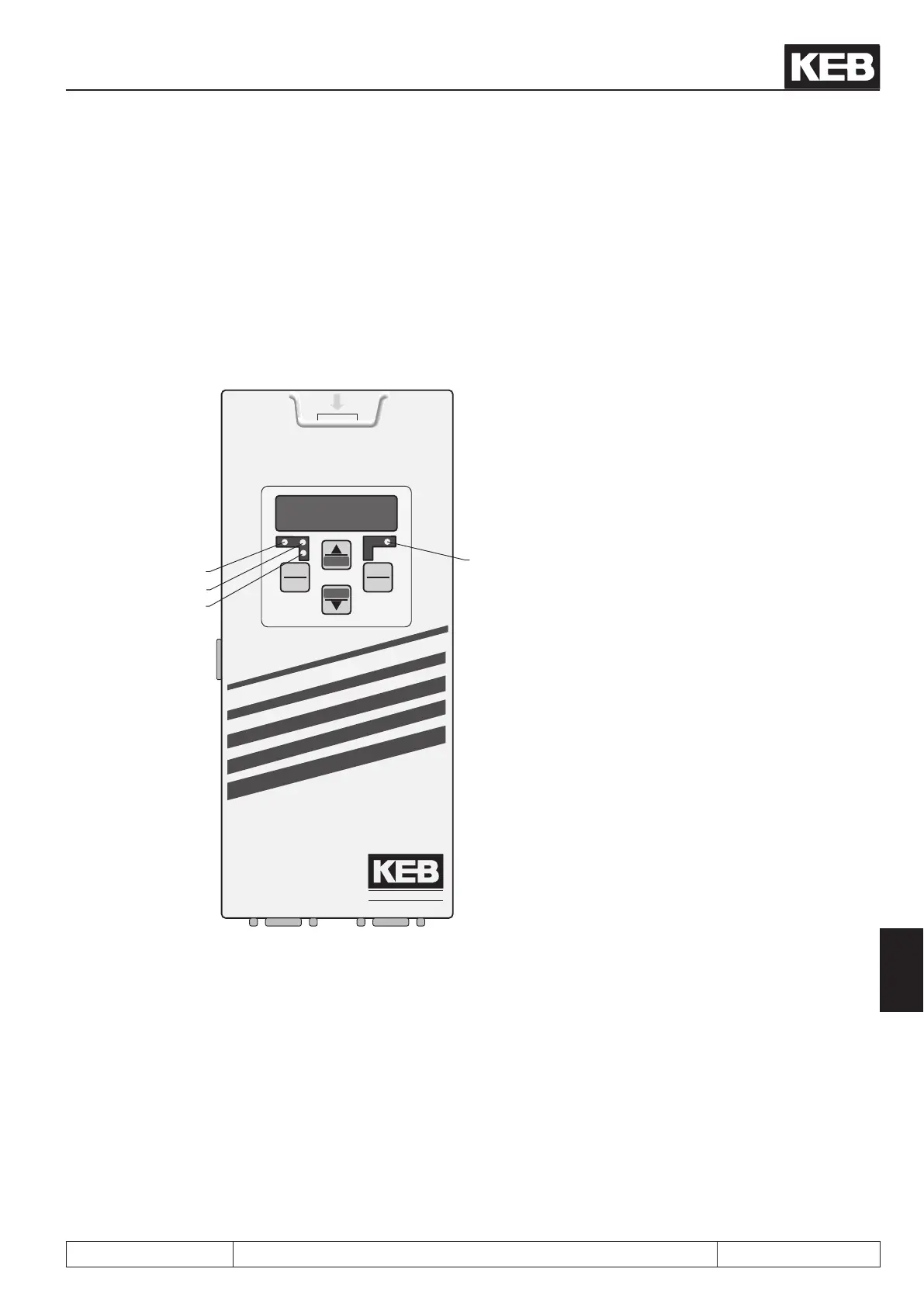

Fig. 11.1.5 Probus-DP operator
ANTRIEBSTECHNIK
START
STOP
FUNC.
SPEED
ENTER
F/R
PBS1
PBS2
ANTRIEBSTECHNIK
Diag
E
PAR
PDOUT
PDIN
PAR (green): Parameterizing channel
active
PDOUT (green): PDOUT data are written to
the FI control
PDIN (green): PDIN data are read by the
FI control.
E (red): On ==>
Blinking ==>
off ==>
Inverter ready for operation
Inverter failure
No supply voltage
Diag: Diagnostic interface to the
PC
PBS1: PROFIBUS-DP interface
(socket connector)
PBS2: PROFIBUS-DP interface
(pin-connector)
