Special functions
7.15.2 Energy saving function
The energy saving function allows the lowering or raising of the current output voltage. In accordance with the
activation conditions dened in uF.6, the voltage valid according to the V/Hz-characteristic is changed in per-
cent onto the energy saving level (uF.07).
However, the maximal output voltage cannot be higher than the input voltage even if the value is > 100 %. The
function is used for example in cyclic executed load/no-load applications. During the no-load phase the speed
is maintained, but energy is saved as a result of the voltage reduction.
uF.7
t
uf.07 Energy saving factor
0,0…130,0 % (default 70 %)
uf.06 Energy saving mode
Bit 0...3 Energy saving function / activation
0 generally off
1 generally active
2 at actual value = setpoint
3 by digital input
4 at clockwise rotation
5 at counter clockwise rotation
6 by constant run clockwise rotation
7 by constant run counter clockwise rotation
8...15 reserved
Bit 4...6 Energy saving function / ramp time
Default time ca. 1,6 s
0 Default time
16 Default time / 2
32 Default time / 4
48 Default time / 8
64 Default time / 16
f
actual
; n
actual
; U
A
Hysteresis

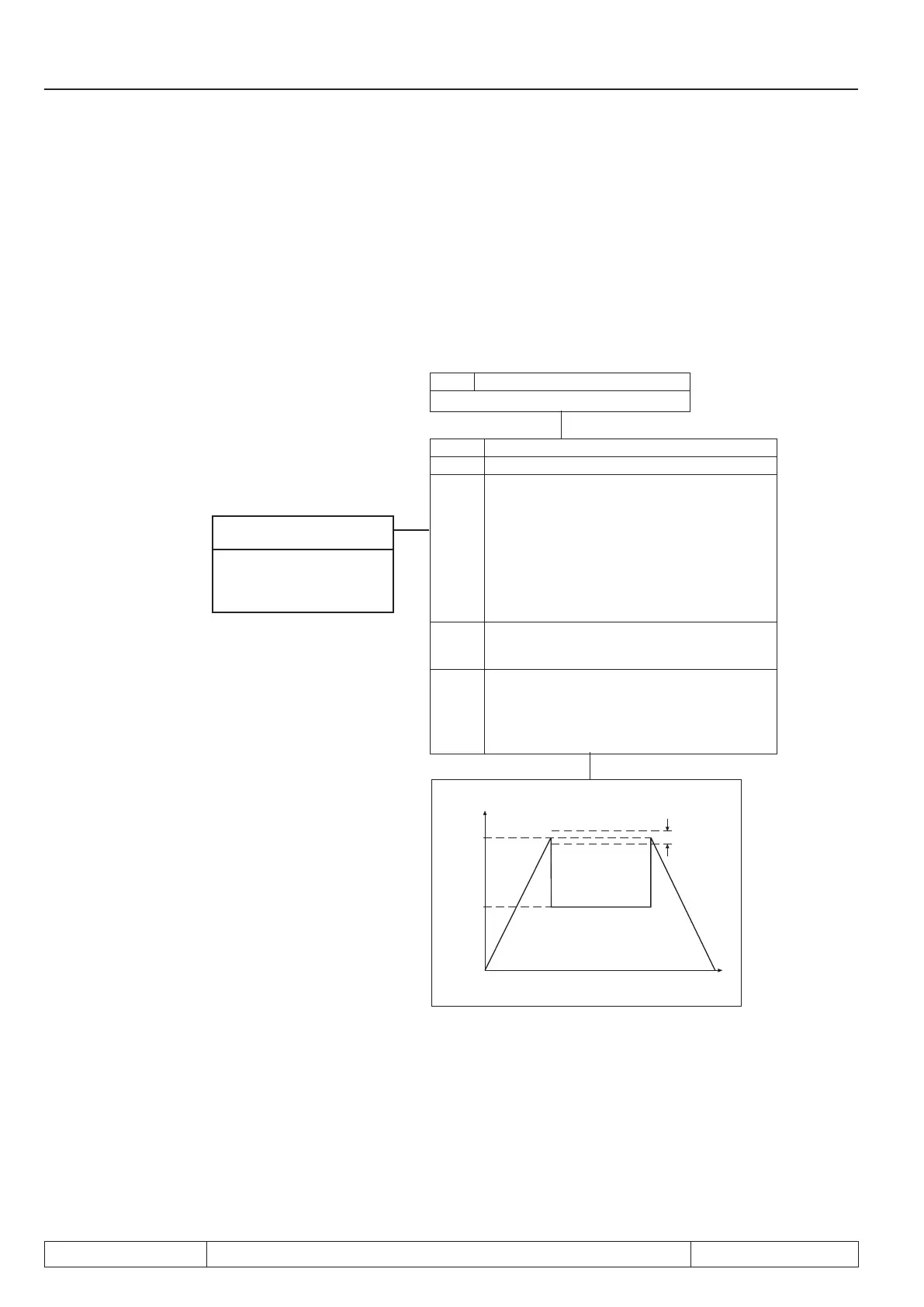

Example: uF.6 = 2, uF.7 = 50 %
uF.08 Energy saving function
input selection
0...4095 (Default 0)
also see 7.3
„Digital inputs“
f
set
; n
set
