BeneVision N1 Patient Monitor Operator’s Manual 2 - 5

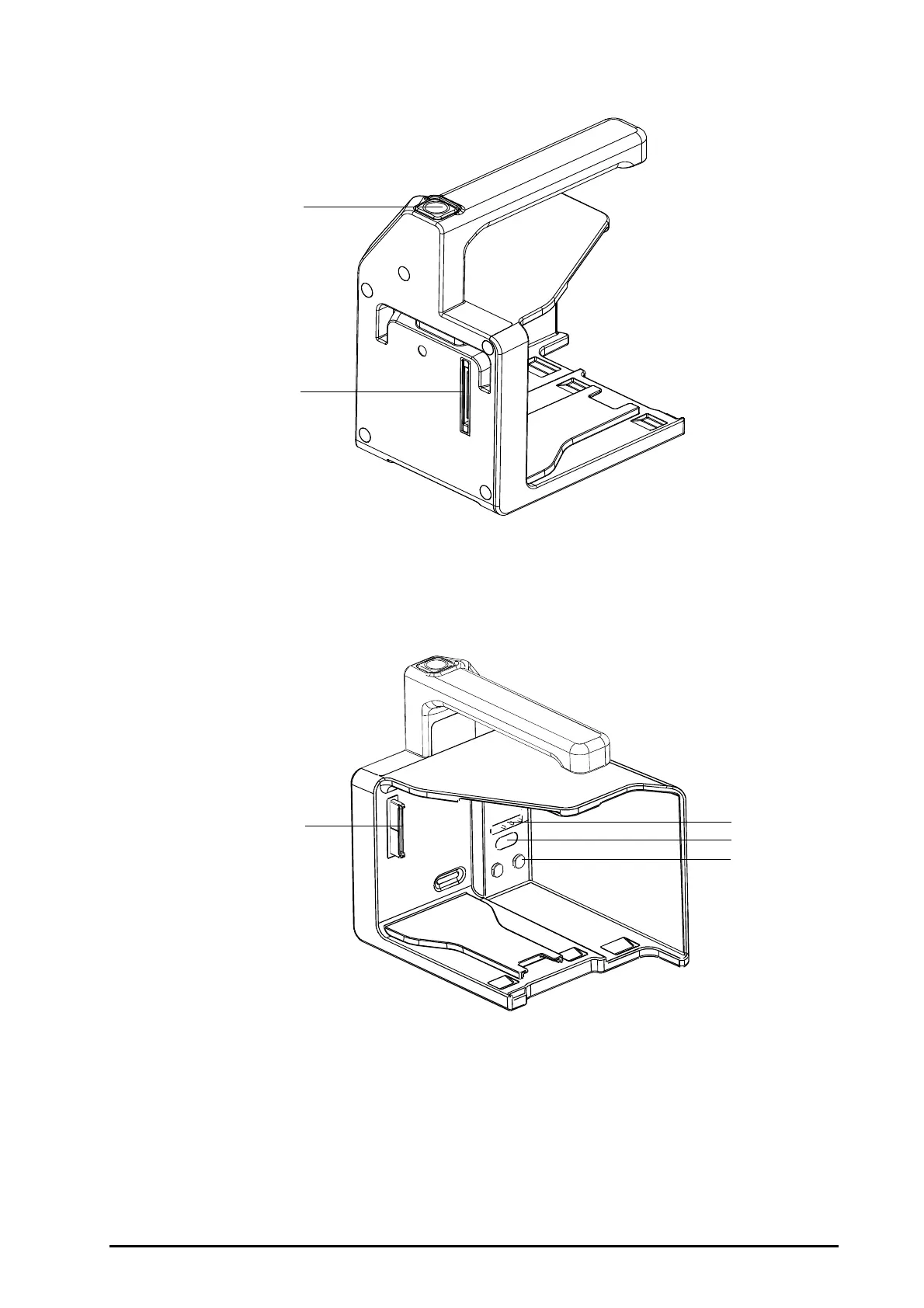

2.5.1 Left View
2.5.2 Right View
(1)
(2)
(1) Release button: pressing this button releases the Modular Rack from the Dock.
(2) Multi-pin connector: connects the Modular Rack and Dock.
(3)
(2)
(1)
(4)
(1) Multi-pin connector: connects the Modular Rack and N1.
(2) Pogo pin: used for communication between the Modular Rack and external parameter module.
(3) Infrared filter: used for communication between the Modular Rack and external parameter module.
(4) Contact: power input connector of the external parameter module.
