BeneVision N1 Patient Monitor Operator’s Manual 3 - 5
3.6 Screen Display

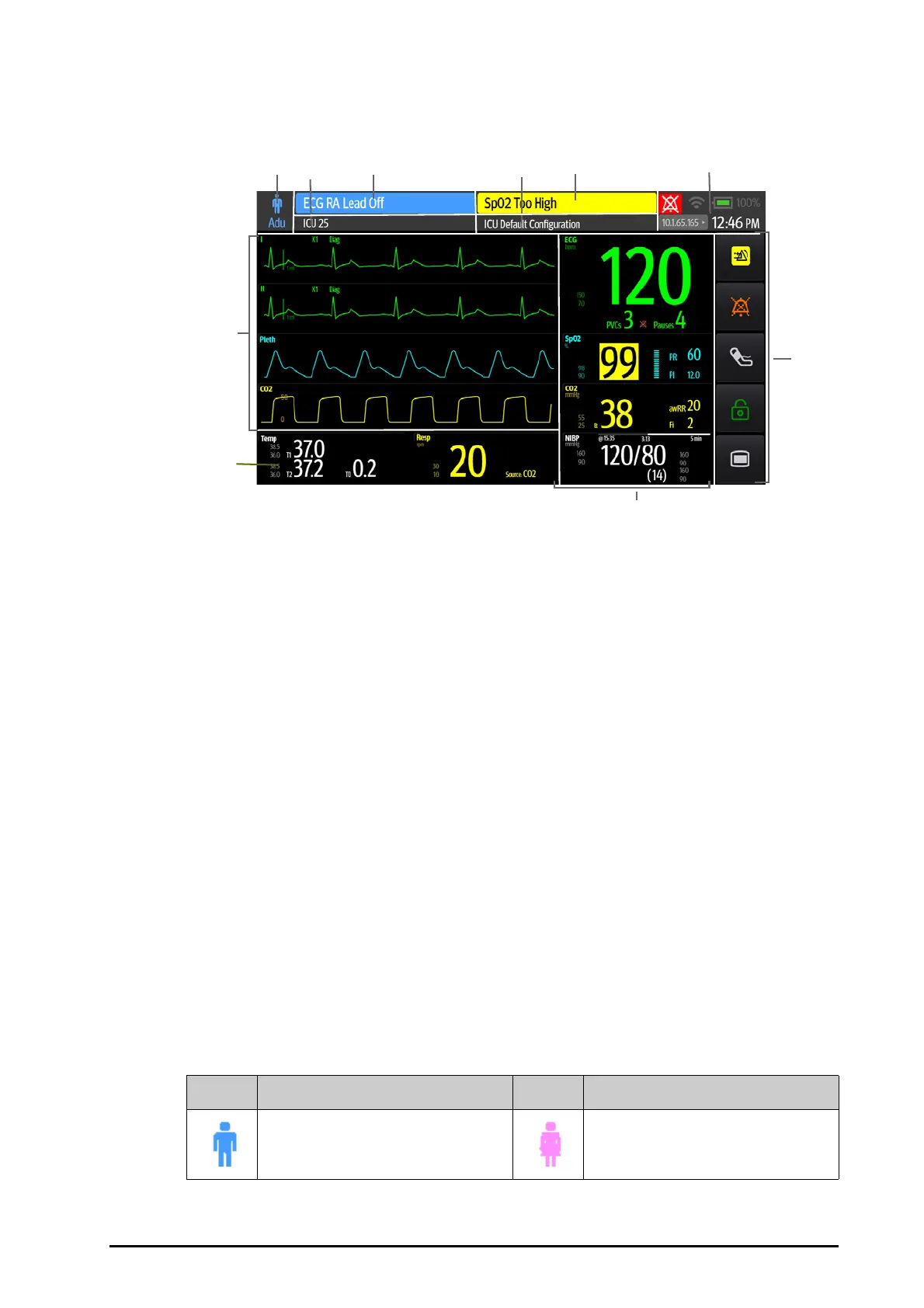

The following figure shows the normal screen:
3.6.1 On-screen Symbols
The following table lists the on-screen symbols displayed on the system status information area:
(1)
(3)
(7)
(5)
(9)
(10)
(6)
(2) (4)
(8)
(1) Patient information area: displays patient category and gender. The displayed patient information is
configurable. Selecting this area enters the Patient Management dialog. For more information, see 5.2.2Editing
Patient Information.
(2) Patient information area: displays patient information, including department, room number, bed number, and
so on. The displayed patient information is configurable. Selecting this area enters the Patient Management
dialog. For more information, see 5.2.2Editing Patient Information.
(3) Technical alarm information area: displays technical alarm message or prompt message.
(4) The current configuration
(5) Physiological alarm information area: displays physiological alarm message.
(6) System status information area: displays alarm symbol, battery status, network status, currently connected CMS,
and system time. For more information, see 3.6.1On-screen Symbols.
(7) Quick key area: displays quick keys.
(8) Parameter numerics area: displays parameter values, alarm limits, and alarm status. Selecting a parameter
numeric block enters corresponding parameter dialog. For more information, see 3.11.4Accessing Parameter
Setup Dialogs.
(9) Parameter waveform/ numerics area: displays parameter waveforms or parameter values, alarm limits, and alarm
status. Selecting a parameter waveform of numeric block enters corresponding parameter dialog. For more
information, see 3.11.4Accessing Parameter Setup Dialogs.
(10) Parameter waveform area: displays parameter waveforms. Select a waveform enters corresponding parameter
dialog. For more information, see 3.11.4Accessing Parameter Setup Dialogs.
Symbol Description Symbol Description
Adult, male Adult, female
