3 - 6 BeneVision N1 Patient Monitor Operator’s Manual

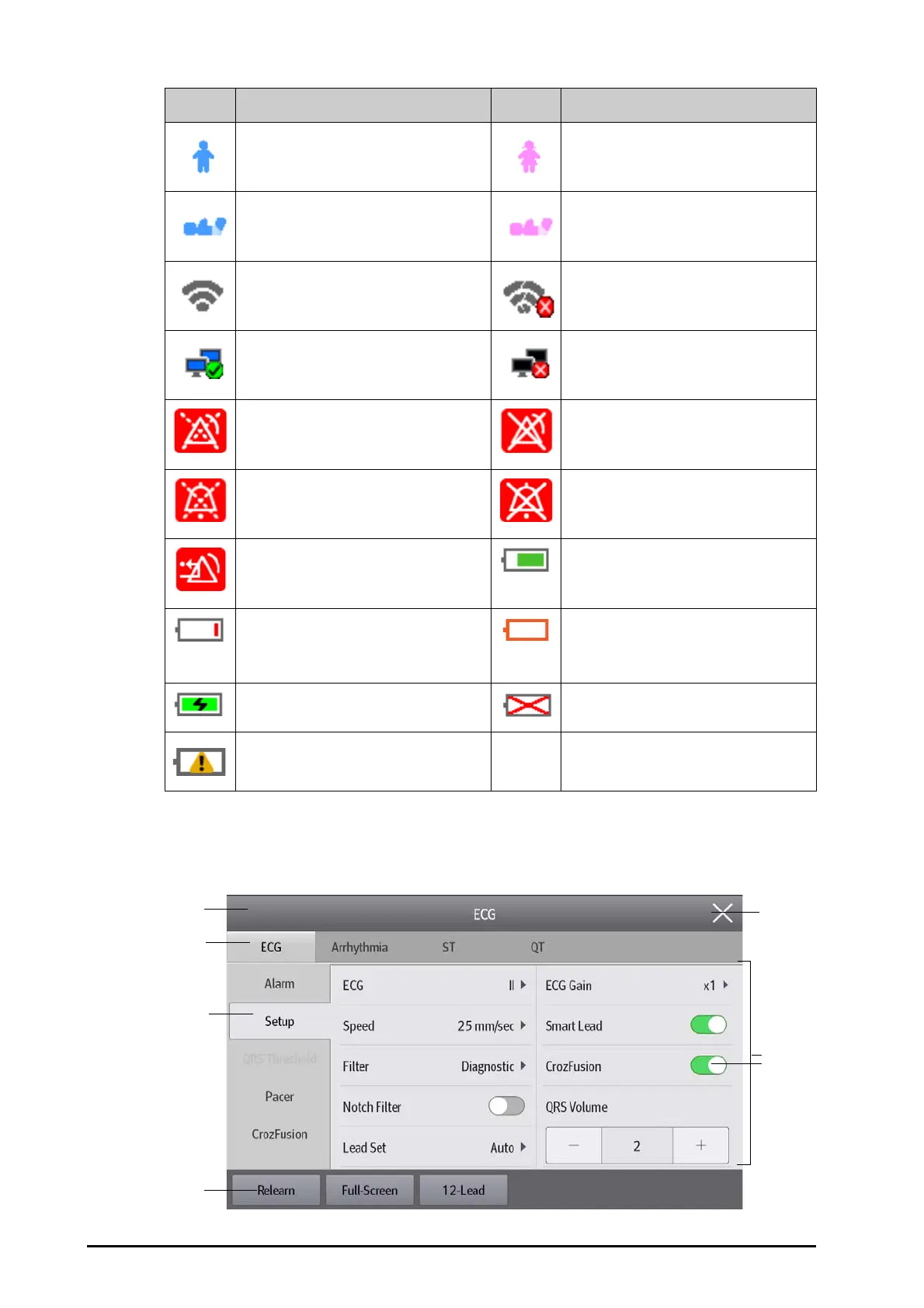

3.6.2 Dialogs
All dialogs have similar style and structure, see the figure below:
Pediatric, male Pediatric, female
Neonate, male Neonate, female
Wireless network is connected. The solid part
indicates network signal strength.
Wireless network is not connected.
Wired network is connected. Wired network is not connected.
All the alarms are paused. Individual physiological alarms are turned off
or the monitor is in the alarm off status.
Audible alarm tones are paused. Audible alarm tones are turned off.
Alarms are acknowledged and the alarm
system is reset.
The battery is working correctly. The green
portion represents the remaining charge.
The battery has low power and needs to be
charged.
The battery has critically low charge and
needs to be charged immediately. Otherwise,
the monitor will automatically shut down
soon.
The battery is being charged. No battery is installed.
Battery fault, battery communication fault, or
battery charging fault. Contact service
personnel for help.
Symbol Description Symbol Description
