BeneVision N1 Patient Monitor Operator’s Manual 2 - 7

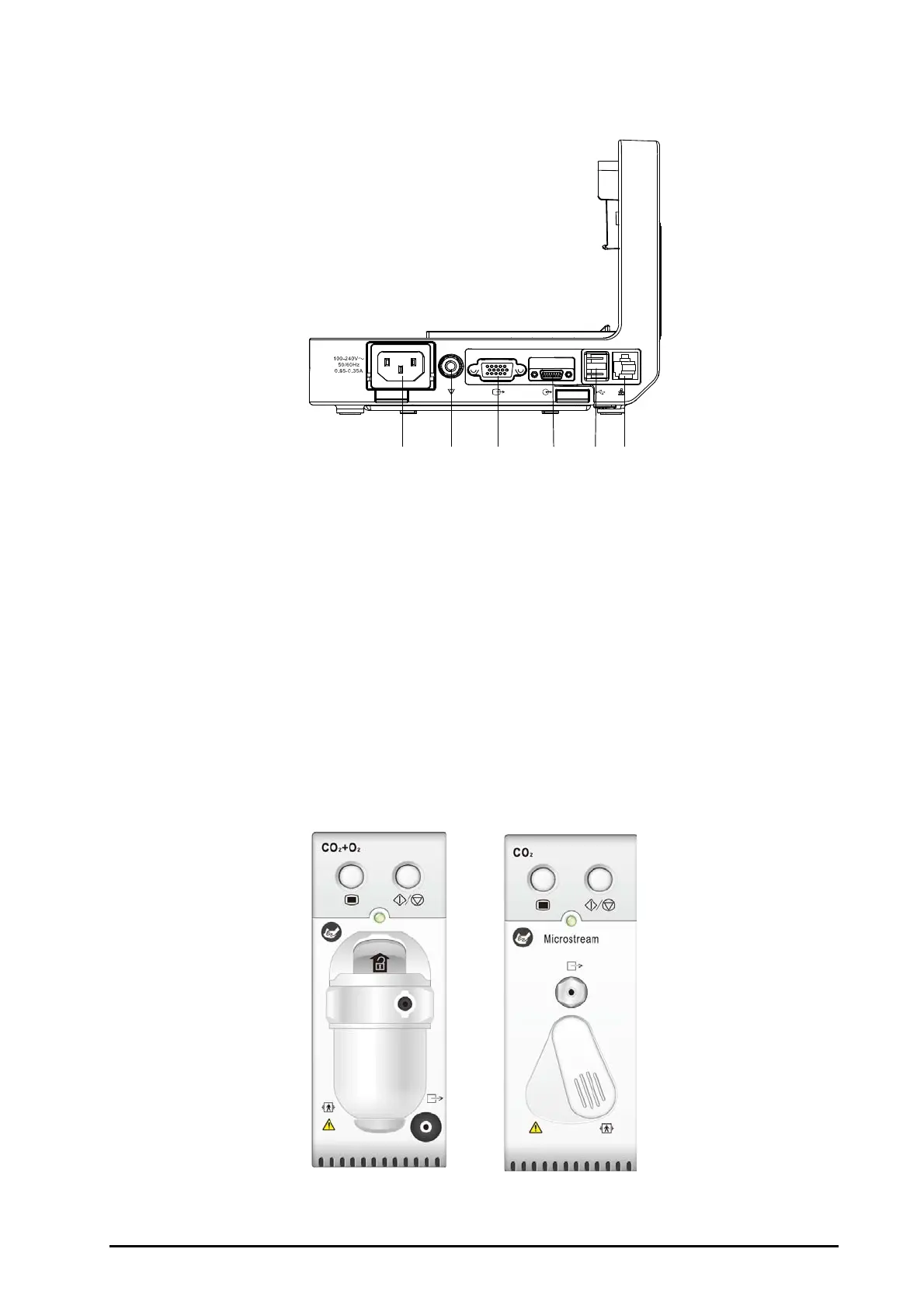

2.6.3 Rear View
2.7 External Parameter Modules
The monitor can connect the following external parameter modules to perform CO
2
monitoring through the
Modular Rack.
(1)
(2)
(3)
(4)
(5)
(6)
(1) AC Power input connector
(2) Equipotential grounding terminal: when using the monitor together with other devices, connect their
equipotential grounding terminals together to eliminate the potential difference between them.
(3) VGA connector: connects the external display
(4) Host monitor connector: connects the N1 to the host monitor through a cable.
(5) USB connector: connects USB devices.
(6) Network connector: a standard RJ45 connector which connects the monitor to the CMS. It can also be used to
transfer data..
Sidestream CO
2
module Microstream CO
2
module
