Icon Function Description
Rename Renames the selected folder.
Precautions for Correct Use
• When the sensor controller uses and reads data set in a folder in the C drive on the simula-
tion software, must be change the setting. As the registration image folder, the C drive cannot
be used by the sensor controller.
• The registration image folder name will be saved as the system data when clicking Data save
on the Main window.
Additional Information
Registered images can be also managed in the following procedures.
• You can also manage registered images with the following operation.
In the Main window, click Tool → TDM editor to display Edit flow tab screen.
Click Editing → Registered image to display Registered image dialog box.
- Thumbnail image display in the registration image window may not be available when the
registration images are too many.

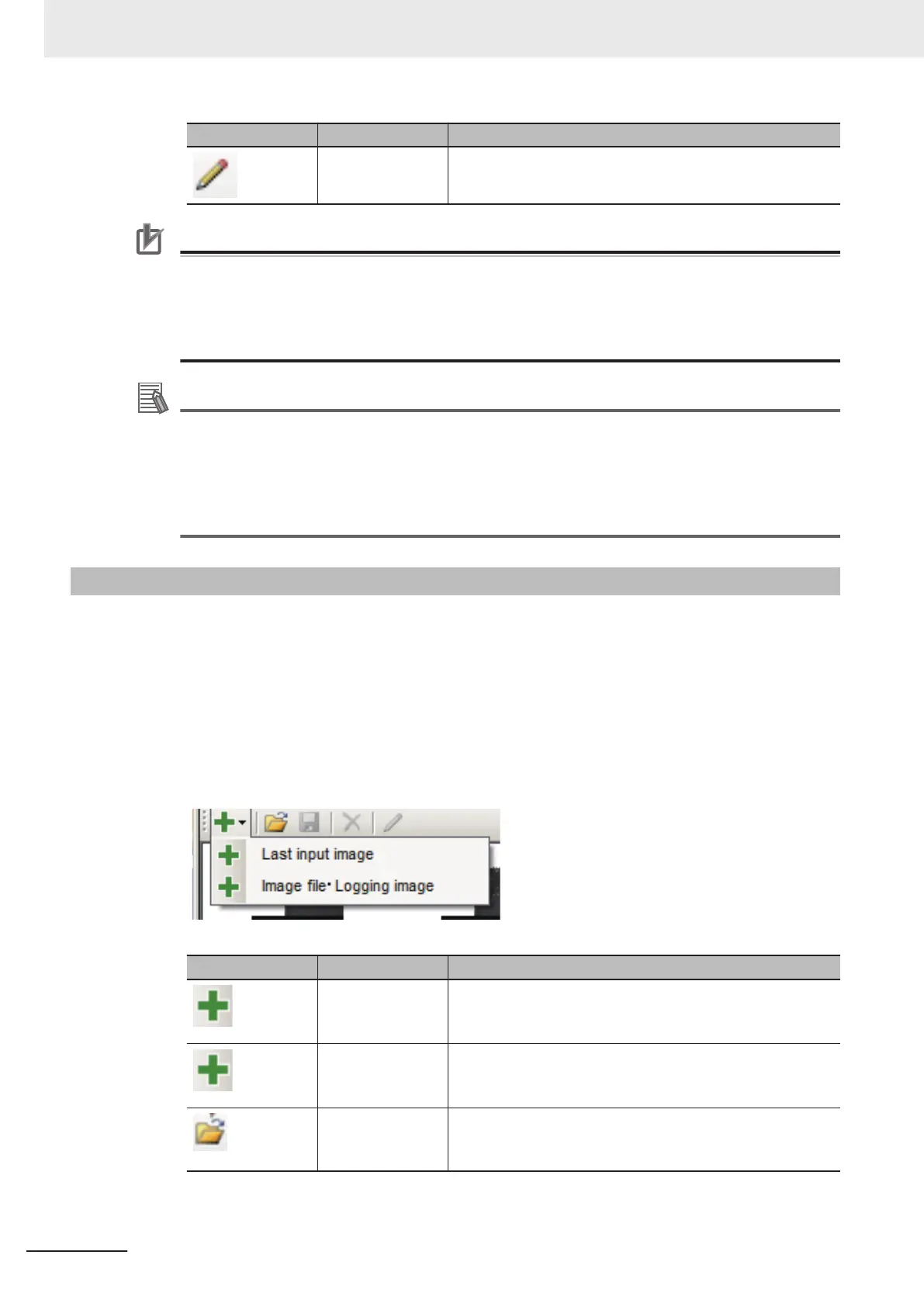

6-6-2
Registering Images
Register images.
1 Insert an external storage such as a USB memory stick into the sensor controller.
2 In the Main window, select and click Tool → Registered Image Manager.
Registered image dialog box is displayed.
3
Click Registration or Open to select an image to register.
Icon Function Description
Registration
Last input image
Registers the last image that is used in the current measure-
ment.
It can be saved with any name.
Registration
Image file/Logging
Registers Logging images or saved image files in the main
memory. Selecting an image file can be done via the dis-
played FileExplorer.
Open Copies all images in the specified folder to the displayed reg-
istration destination folder (sub-folder). Specifying the folder
is done via the displayed folder selection window.
4 Click Registration to register the selected image.
