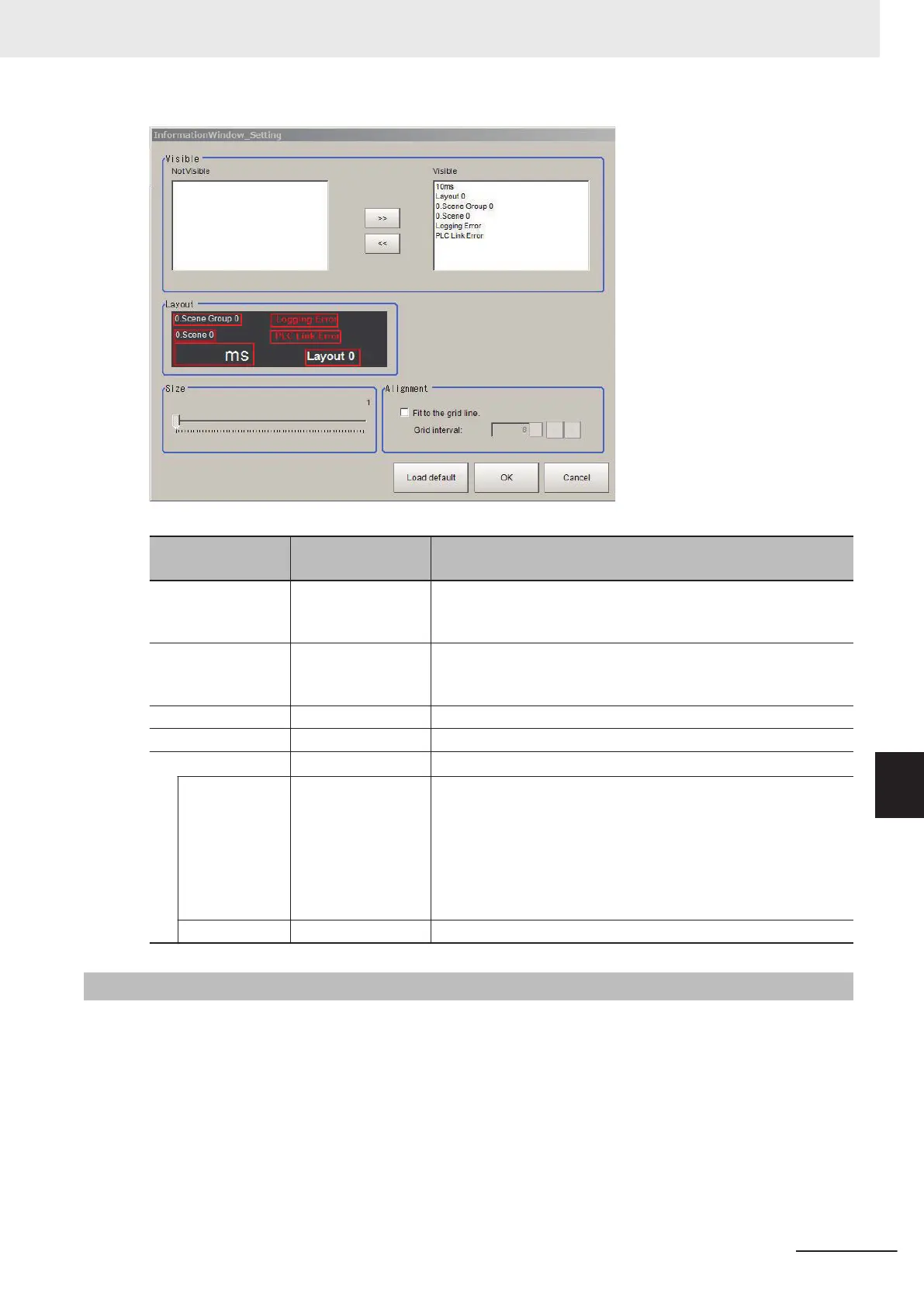

Item
Setting value
[Factory default]
Description
View [All visible] Layout Number, Processing Time, Scene Group Number + Scene
Group Name, Scene No. + Scene Name, Logging Error, PLC Link
Error
Layout - Click the display item to change its size. The position can be
changed by dragging. Setting the Alignment, the grid lines will be
displayed
Size 1 to 64 -
Load default - Restores the default status.
Alignment - Sets this function to adjust layout position.
Fit to the grid
line
• ON
• [OFF]
Sets whether the grid lines are displayed on the Main Window by
a pixel unit when the Layout modification is set.
• ON:
The grid lines will be displayed on the Main Window. The win-
dow part can be changed its position and size per grid.
• OFF:
The grid lines will be hidden.
Grid interval 2 to 200 [8] Sets the grid size. Unit: pixel
8-3-6
Toolbox Pane
This pane shows the tool buttons.
The following elements are displayed.
• Edit flow button
• Data save button
• Switch scene button
• Switch layout button
8 Setting Windows
8 - 25
FH/FHV Series Vision System User’s Manual (Z365-E1)
8-3 Arranging Windows [Layout Functions]
8
8-3-6 Toolbox Pane
