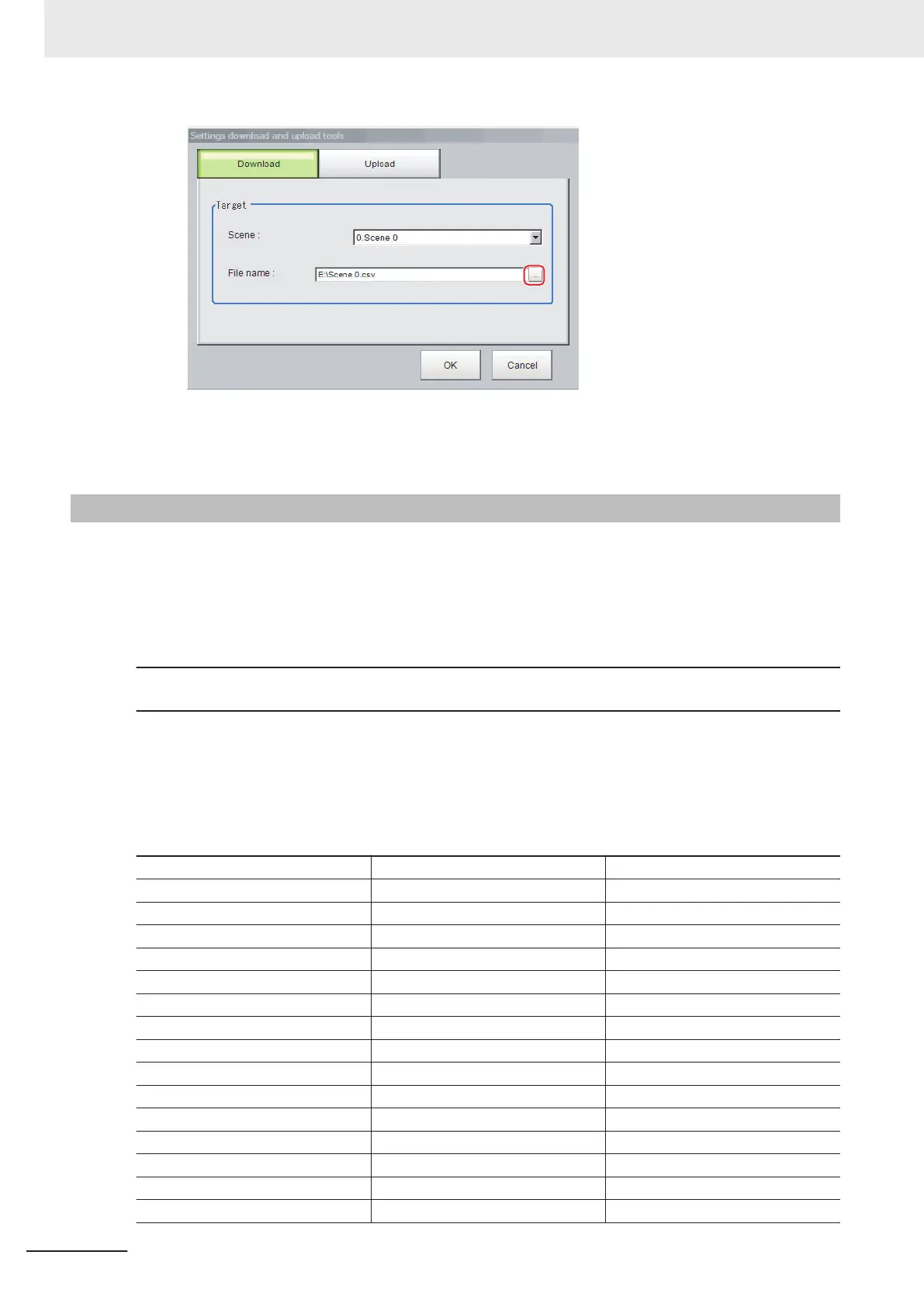

6
Click OK.
The data will be saved to the save destination.
9-10-2
About Downloaded CSV Files
The character code of the downloaded CSV file is Unicode (UTF-8).
You can open this file with the Notepad in Windows. When using another editor to open the file, set the
character code to Unicode (UTF-8).
The CSV file format is as follows:
SceneTitle,Scene title name,Author,Note
#Processing item number in the flow,Processing item identifier,Processing unit title identifier,data title,data
Double-byte characters are enclosed in the double quotation marks (”).
Refer to the individual processing items and the external reference tables in the Vision System
FH/FHV Series Processing Item Function Reference Manual (Cat. No. Z341) for the parameters for all
data. Only data with Set/Get attribute can be downloaded.
Output Example of CSV File:
SceneTitle Scene 0
#0 CameraImage Camera Image Input
#1 Search Search
outputCoordinate Output coordinates 0
calibration Calibration 0
overallJudge Reflect to overall judgement 0
searchMode Search mode 0
rotation With/without rotation 0
endAngle Upper limit of the rotation angle 180
startAngle Lower limit of the rotation angle -180
angleSkip Skipping angle 5
smartMode Smart mode 1
stability Stab.(CR) 12
accuracy Prec. 2
searchSpeed Stab.(PT) 3
referencePosX Reference X 0
9 Saving/Loading Data
9 - 50
FH/FHV Series Vision System User’s Manual (Z365-E1)
