10-2
Multi-trigger Imaging Processing with
Any Timing [Multi-trigger Imaging]
The Multi-trigger Imaging processing item captures multiple images at user-defined timings and exe-
cutes parallel measurement for each image. If the controller has consecutive STEP inputs, it performs
measurement processing in each Multi-trigger Imaging Task in parallel. The system can perform high-
speed processing and measurement at desired timings.

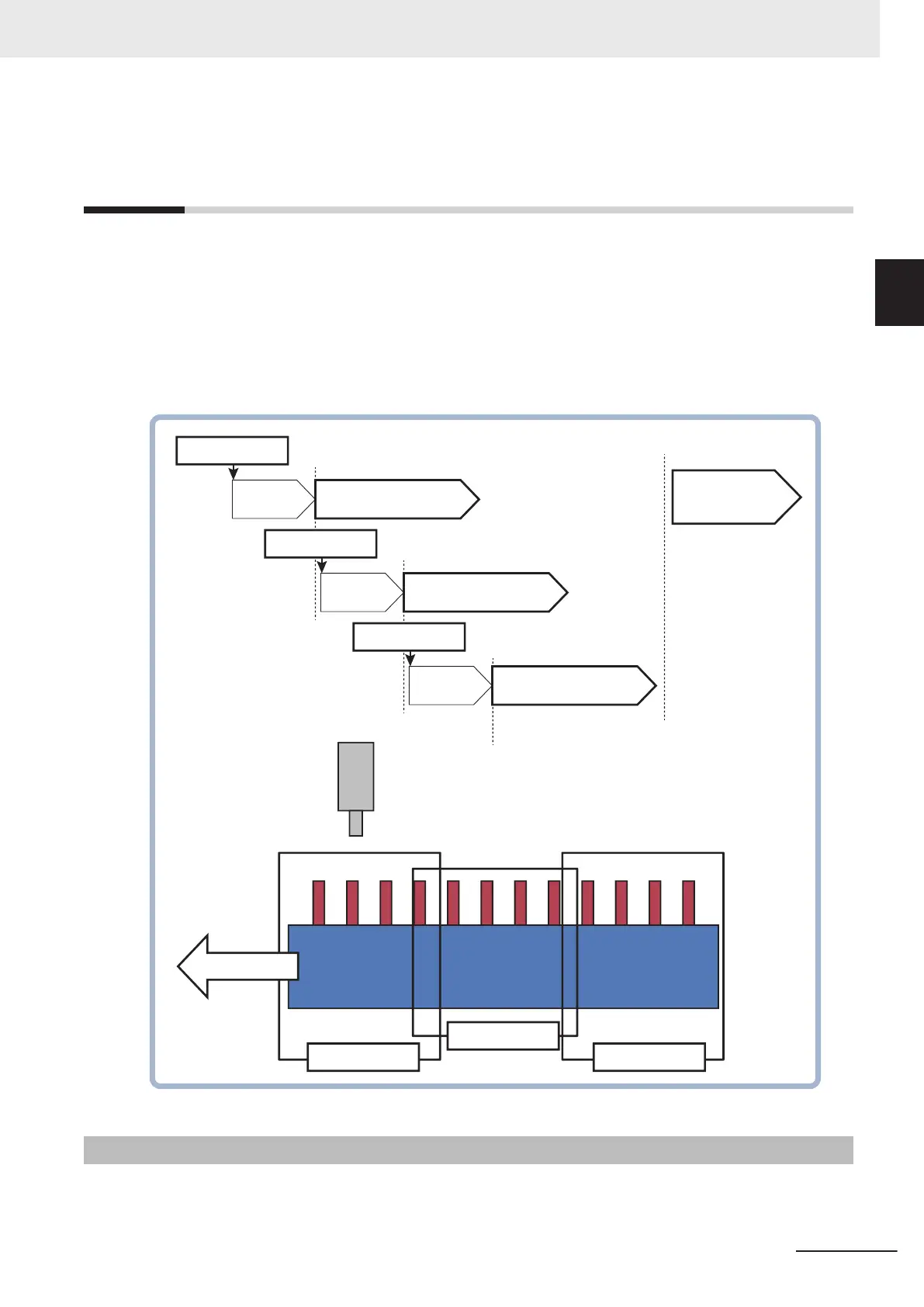

This function takes multiple images of a long and thin workpiece, e.g. a connector at certain timings.
While the system takes images for multiple times, it executes measurement for each image in parallel.
After that, measurement processing is performed based on the measurement results.
Image transfer completed
Camera
image input
Search
1st STEP Image transfer completed
Camera
image input
Search
Measurement
processing
Image transfer completed
Camera
image input
Search
2nd STEP
3rd STEP
1st STEP 3rd STEP
2nd STEP
Moving
10-2-1
Settings for Multi-trigger Imaging
To use Multi-trigger Imaging function, enter the Multi-trigger Imaging, Multi-trigger Imaging Task
and Multi-trigger Imaging End processing items as a group.
10 Advanced Usage
10 - 15
FH/FHV Series Vision System User’s Manual (Z365-E1)
10-2 Multi-trigger Imaging Processing
with Any Timing [Multi-trigger Imaging]
10
10-2-1 Settings for Multi-trigger Imaging
